ZNR10L-GWMEKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )1ZZFE,3ZZFE

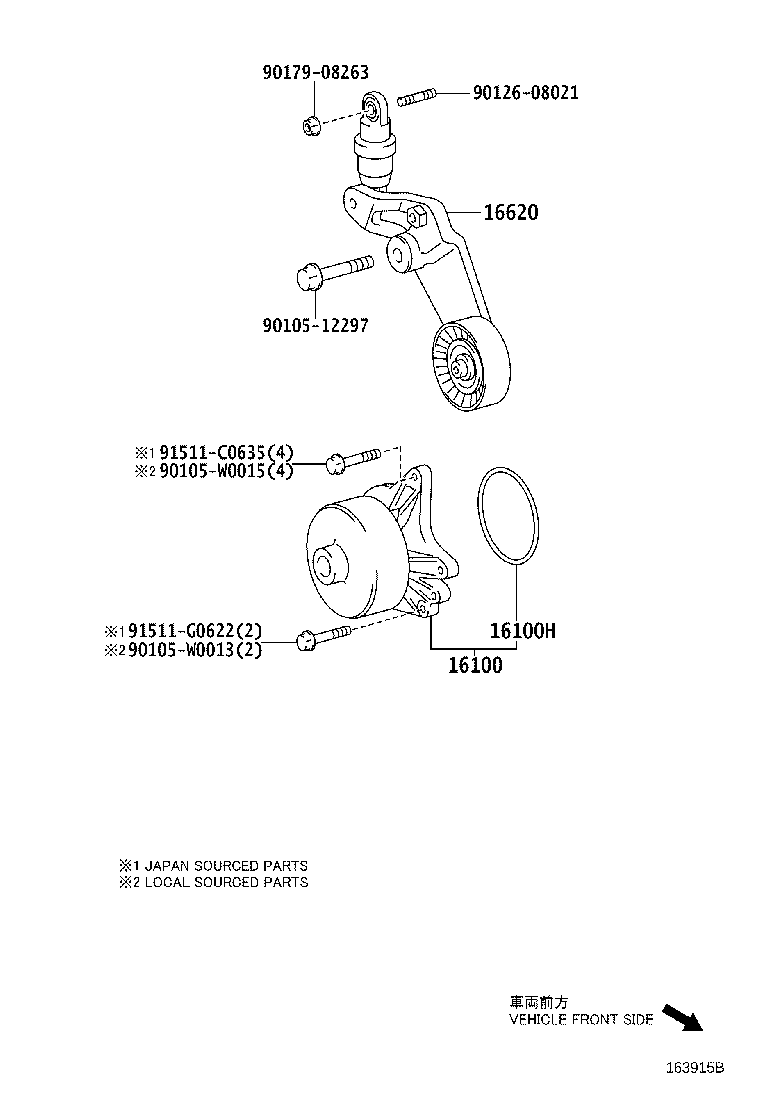

Click highlighted areas on diagram

diagram 16100 16100H 16620 9010512297 90105W0013 90105W0015 9012608021 9017908263 91511C0635 91511G0622
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09310

1ZZFE,3ZZFE..ZNR1#

 1
16100H - RING, O(FOR WATER PUMP)
90301-69006

1ZZFE,3ZZFE..ZNR1#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W093

1ZZFE,3ZZFE..ZNR1#

 1
16620-22012

1ZZFE,3ZZFE..ZNR1#

 1
Common parts
90105-12297
90105-W0013
90105-W0015
90126-08021
90179-08263
91511-C0635
91511-G0622
