Toyota Corolla verso ZNR10 VENTILATION HOSE

Part #	Description	Period	Qty
12204 - VALVE SUB-ASSY, VENTILATION
12204-22051	1ZZFE,3ZZFE..ZNR1#	05/2004 - 05/2007	1
12204-22050	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2004	1
12261 - HOSE, VENTILATION
12261-22070	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21152	1ZZFE,3ZZFE..ZNR1#	02/2004 - 05/2007	1
12262 - HOSE, VENTILATION, NO.2
12262-0D100	3ZZFE..ZNR10 (L)	06/2004 - 05/2007	1
12262-22080	3ZZFE..ZNR10 (J)	06/2004 - 05/2007	1
12262-22080	3ZZFE..ZNR10	02/2004 - 06/2004	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE,3ZZFE..ZNR1# NO.2	02/2004 - 05/2007	1
90467-13103	1ZZFE,3ZZFE..ZNR1# NO.1	02/2004 - 05/2007	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19003	1ZZFE,3ZZFE..ZNR1# NO.2	02/2004 - 05/2007	1
90467-13103	1ZZFE,3ZZFE..ZNR1# NO.1	02/2004 - 05/2007	1

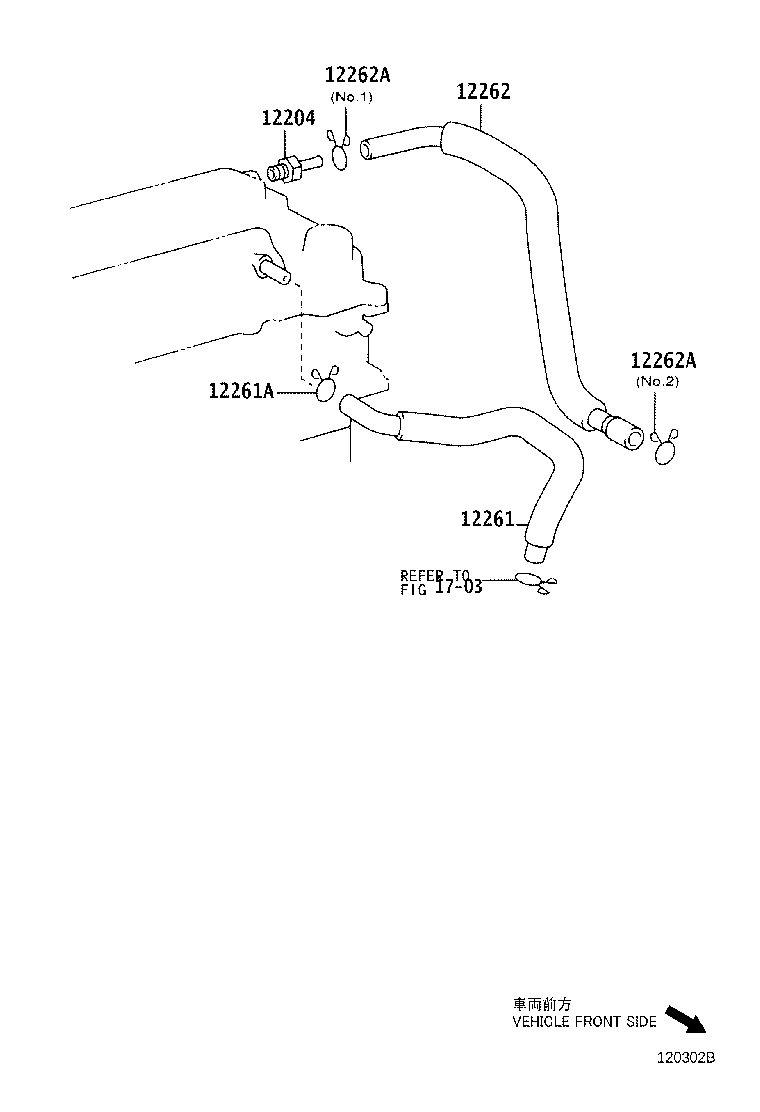

Linked diagrams
1703

ZNR10L-GWMEKW (2004)
