ZNR10L-GWMEKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )1ZZFE,3ZZFE

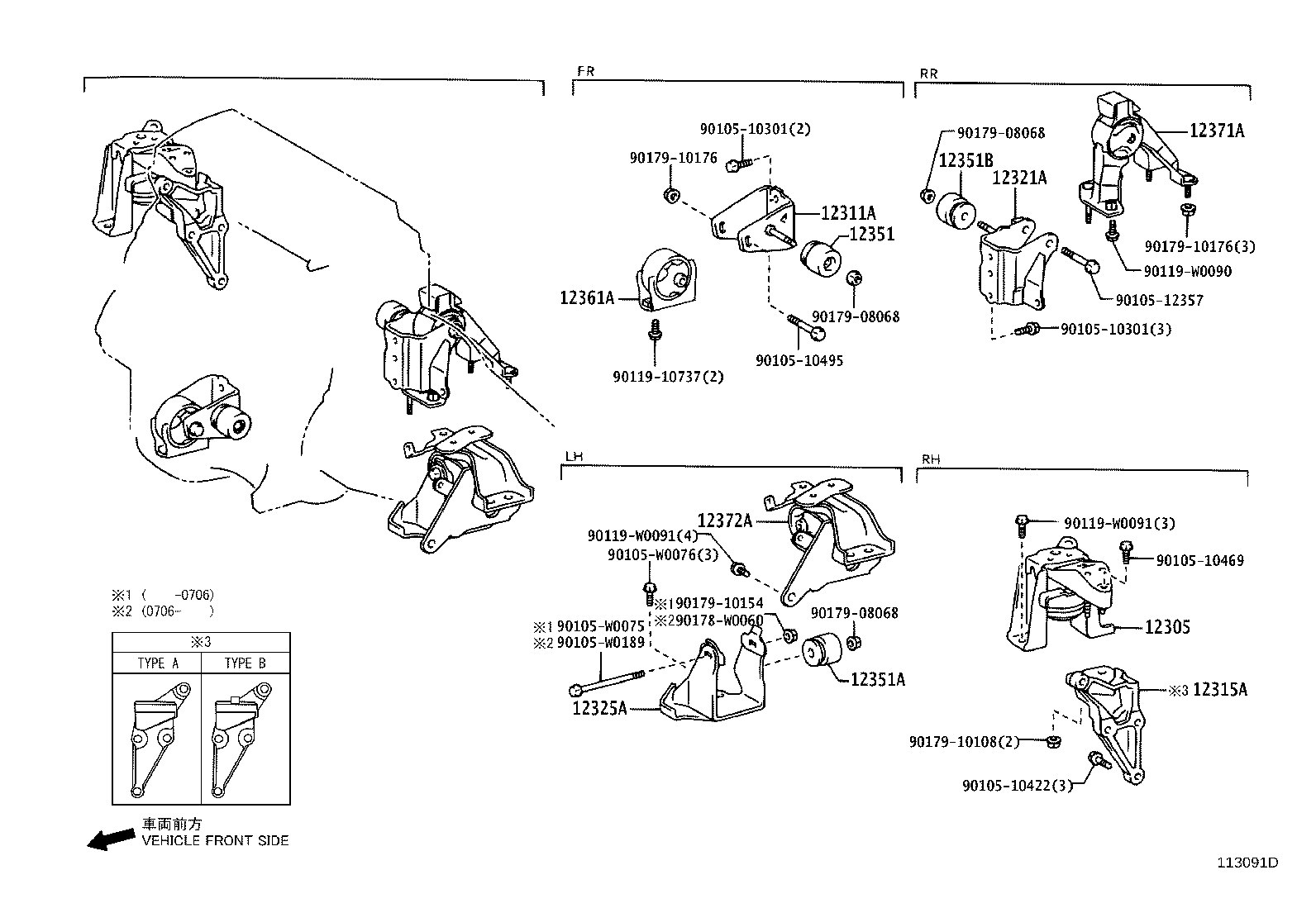

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12351 12351A 12351B 12361A 12371A 12372A 9010510301 9010510301 9010510422 9010510469 9010510495 9010512357 90105W0075 90105W0076 90105W0189 9011910737 90119W0090 90119W0091 90119W0091 90178W0060 9017908068 9017908068 9017908068 9017910108 9017910154 9017910176 9017910176
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0D051

1ZZFE,3ZZFE..ZNR1#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0D090

1ZZFE,3ZZFE..ZNR1#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0D040

1ZZFE,3ZZFE..ZNR1#

(L),T/P A:REF.ILLUST

 1
12315-22050

1ZZFE,3ZZFE..ZNR1#

(J)

 1
12315-0D070

1ZZFE,3ZZFE..ZNR1#

(L),T/P B:REF.ILLUST

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0D141

1ZZFE,3ZZFE..ZNR1#

 1
12321-0D140

1ZZFE,3ZZFE..ZNR1#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0D010

1ZZFE,3ZZFE..ZNR1#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0D020

1ZZFE,3ZZFE..ZNR1#

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-0D030

1ZZFE,3ZZFE..ZNR1#

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0D020

1ZZFE,3ZZFE..ZNR1#

 1
12351-0D020

1ZZFE,3ZZFE..ZNR1#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0D150

1ZZFE,3ZZFE..ZNR1#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0D130

1ZZFE,3ZZFE..ZNR1#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0D120

1ZZFE,3ZZFE..ZNR1#

 1
Common parts
90105-10301
90105-10422
90105-10469
90105-10495
90105-12357
90105-W0075
90105-W0076
90105-W0189
90119-10737
90119-W0090
90119-W0091
90178-W0060
90179-08068
90179-10108
90179-10154
90179-10176
