ZNR10L-GWMEKW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
May 2007
Engine
3ZZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

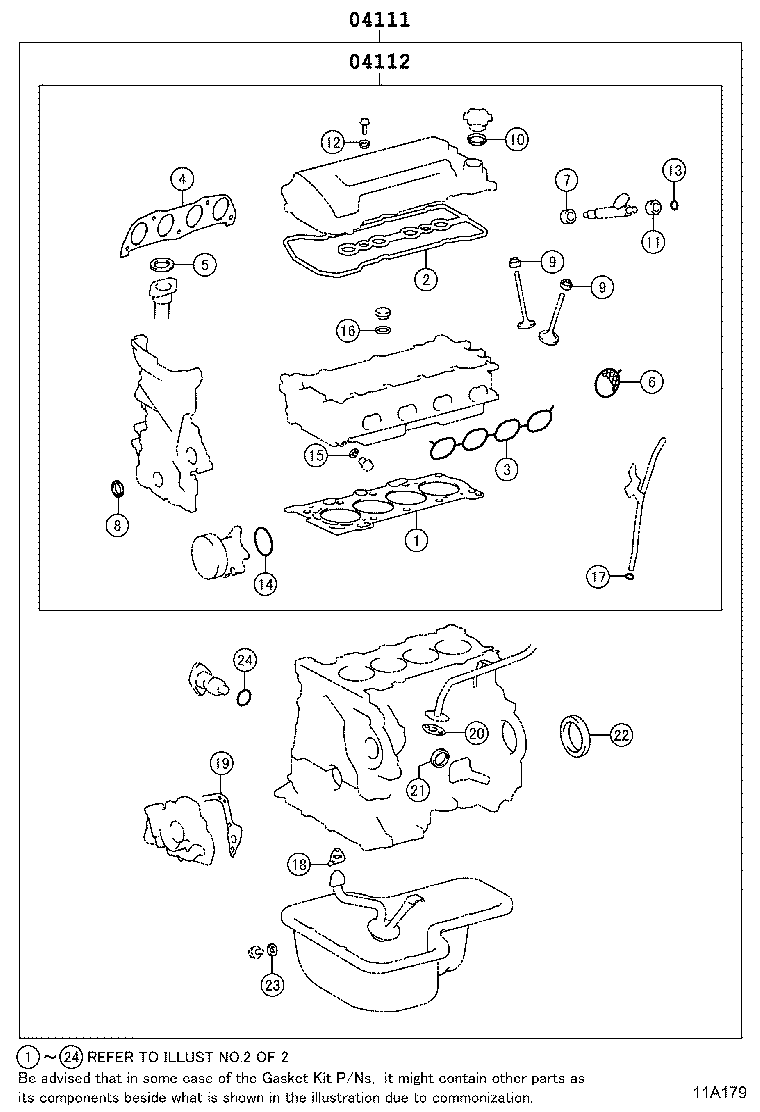

ILLUST NO. 1 OF 2(0402- )3ZZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-0D211 |
3ZZFE..ZNR10 |
1 | ||
| 04111-0D210 |
3ZZFE..ZNR10 |
1 | ||
| 04111-0D380 |
3ZZFE..ZNR10 |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-0D210 |
3ZZFE..ZNR10 |
1 | ||
| 04112-0D211 |
3ZZFE..ZNR10 |
1 | ||
| 04112-0D370 |
3ZZFE..ZNR10 |
1 | ||

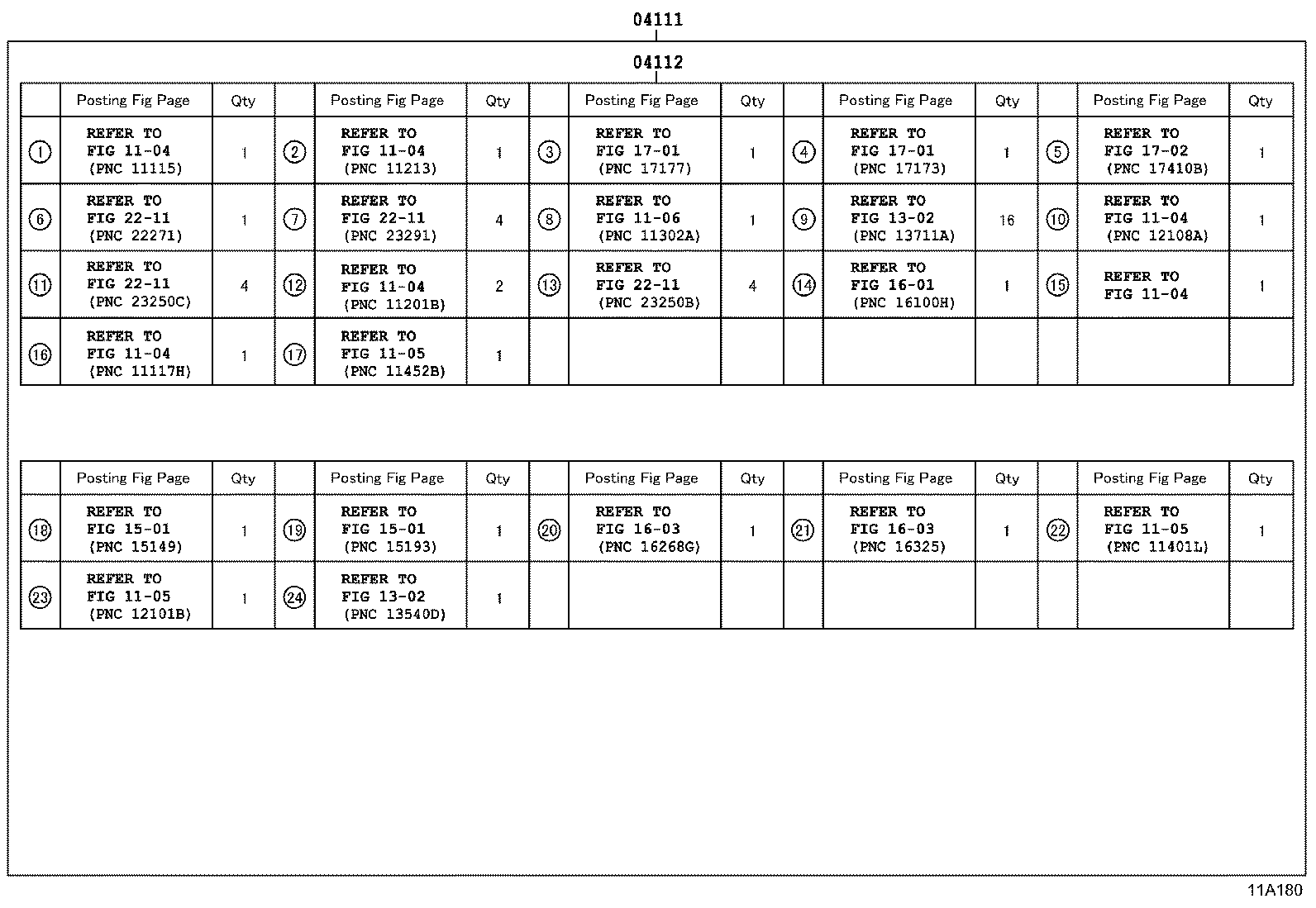

ILLUST NO. 2 OF 2(0402- )3ZZFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04111 - GASKET KIT, ENGINE OVERHAUL | ||||
| 04111-0D211 |
3ZZFE..ZNR10 |
1 | ||
| 04111-0D210 |
3ZZFE..ZNR10 |
1 | ||
| 04111-0D380 |
3ZZFE..ZNR10 |
1 | ||
| 04112 - GASKET KIT, ENGINE VALVE GRIND | ||||
| 04112-0D210 |
3ZZFE..ZNR10 |
1 | ||
| 04112-0D211 |
3ZZFE..ZNR10 |
1 | ||
| 04112-0D370 |
3ZZFE..ZNR10 |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1106 | ||||
| 1302 | ||||
| 1501 | ||||
| 1601 | ||||
| 1603 | ||||
| 1701 | ||||
| 1702 | ||||
| 2211 | ||||
