ZNR10L-GRMDKW (2004)

Toyota Corolla Verso

Production Feb 2004 - May 2007
Engine 3ZZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )ZNR1#..LHD

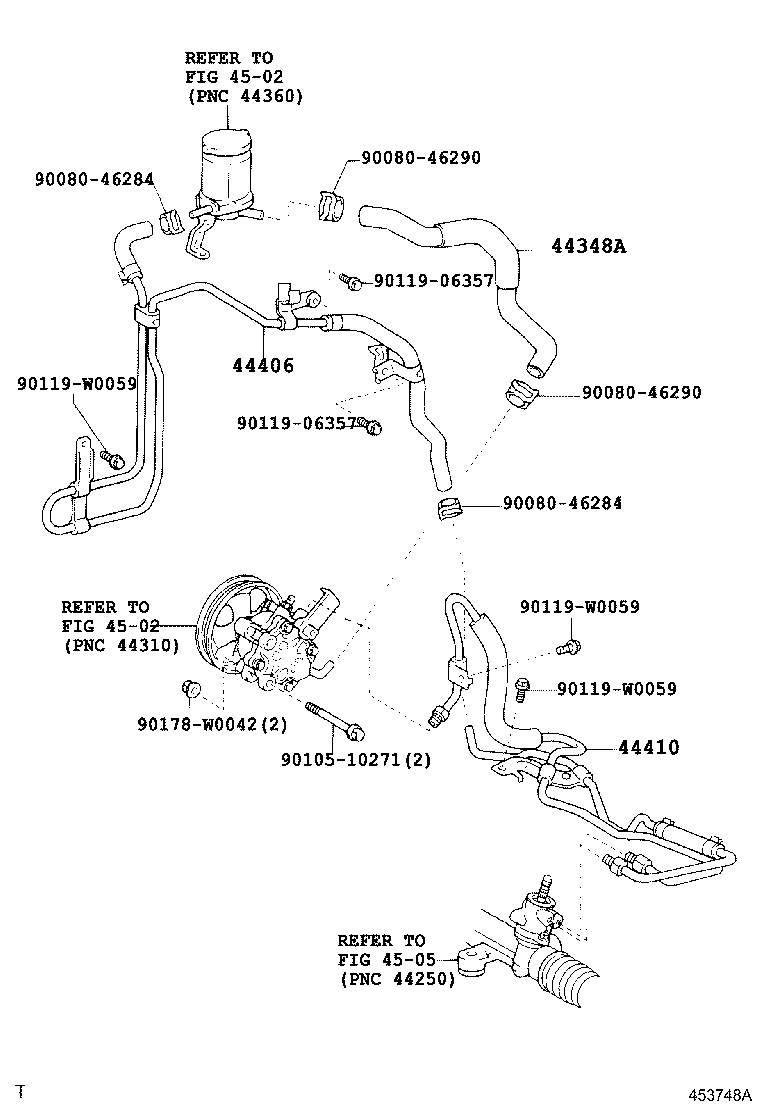

Click highlighted areas on diagram

diagram 44348A 44406 44410 4502 4502 4505 9008046284 9008046284 9008046290 9008046290 9010510271 9011906357 9011906357 90119W0059 90119W0059 90119W0059 90178W0042
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0F010

ZNR1#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-0F010

ZNR1#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-0F010

ZNR1#..LHD

 1
Common parts
90080-46284
90080-46290
90105-10271
90119-06357
90119-W0059
90178-W0042
Linked diagrams
4502
4505
