CUR10R-GWMDYW (2004)

Toyota Corolla Verso

Production Feb 2004 - Aug 2005
Engine 1CDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402-0508)CUR10..RHD

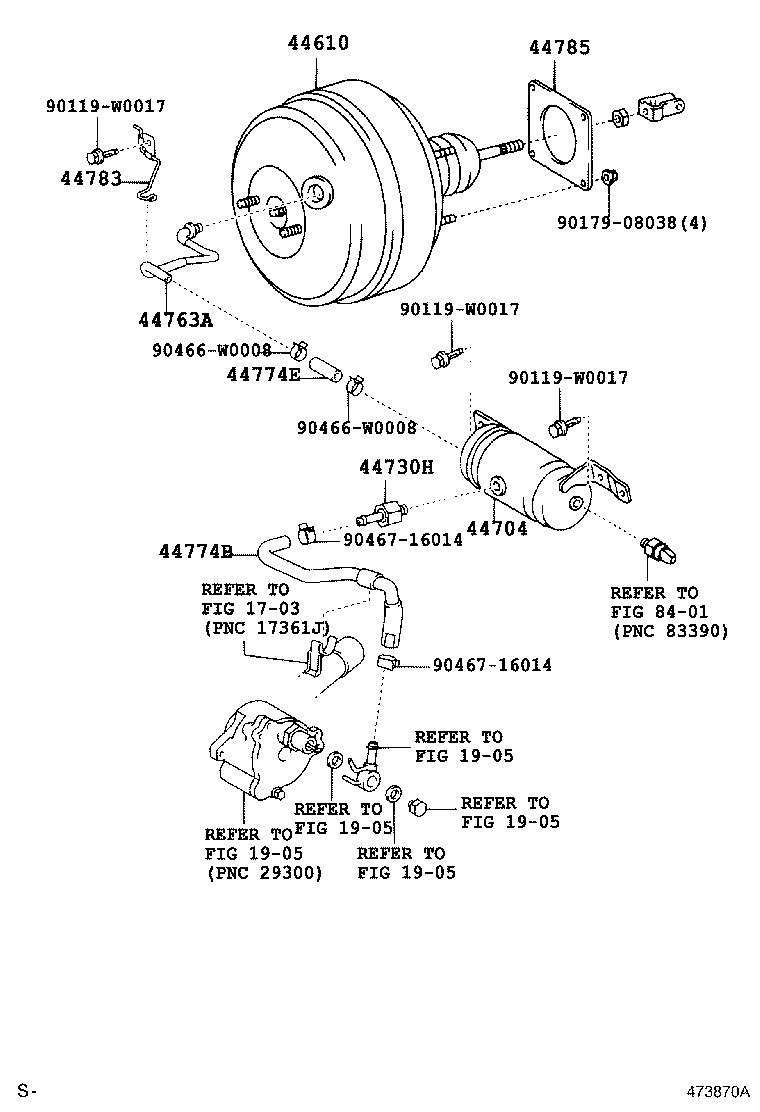

Click highlighted areas on diagram

diagram 1703 1905 1905 1905 1905 1905 44610 44704 44730H 44763A 44774B 44774E 44783 44785 8401 90119W0017 90119W0017 90119W0017 9017908038 90466W0008 90466W0008 9046716014 9046716014
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-05100

AUR10,CUR10,ZNR1#..RHD

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-64020

CUR10..RHD

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-12080

CUR10

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0F020

CUR10..RHD

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-64010

CUR10

 1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-20390

CUR10..RHD

 1
44783 - CLAMP, VACUUM HOSE
44783-64020

CUR10..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

CUR10

 1
44785-20020

CUR10,ZNR1#

 1
Common parts
90119-W0017
90179-08038
90466-W0008
90467-16014
