CUR10R-GWMDYW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
Aug 2005
Engine
1CDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )CUR10..RHD

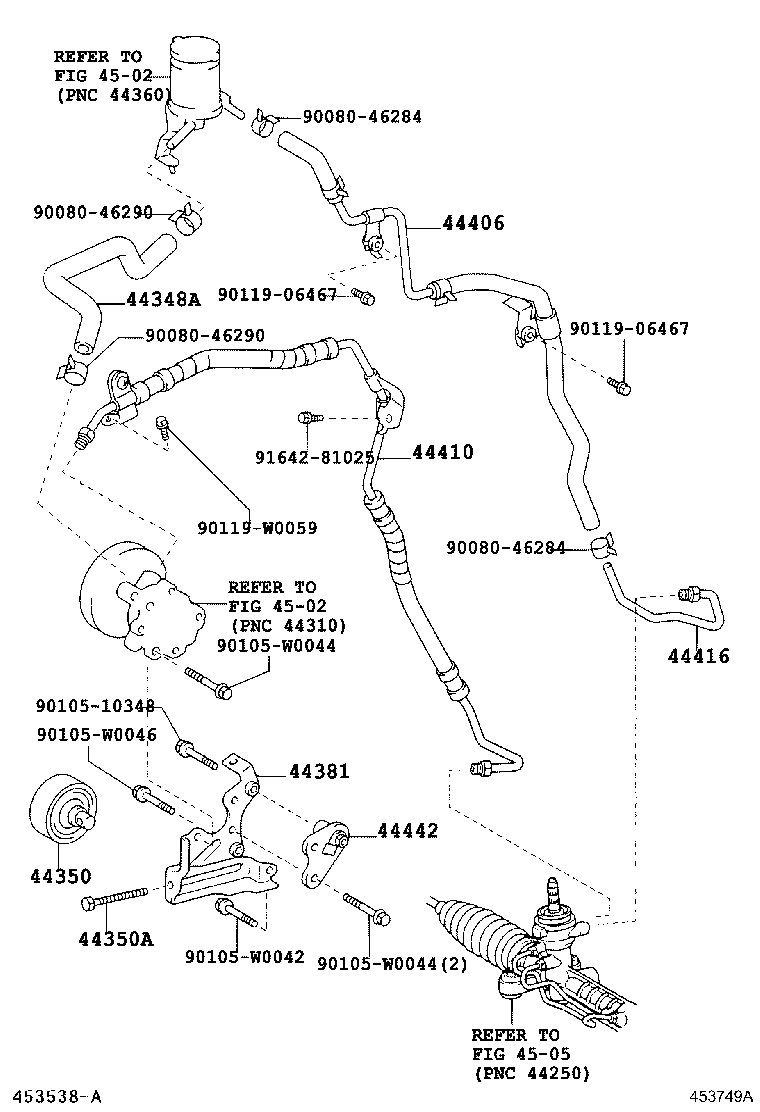

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-05090 |
CUR10 |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-12070 |
CUR10 |
1 | ||
| 44350A - BOLT(FOR POWER STEERING IDLE PULLEY) | ||||
| 90109-08106 |
CUR10 |
1 | ||
| 44381 - BRACKET, POWER STEERING IDLE PULLEY | ||||
| 44381-13010 |
CUR10 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-0F020 |
CUR10 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-05270 |
CUR10..RHD |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-05020 |
CUR10..RHD |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-05020 |
CUR10 |
1 | ||
| Common parts | ||||
| 90080-46284 | ||||
| 90080-46290 | ||||
| 90105-10348 | ||||
| 90105-W0042 | ||||
| 90105-W0044 | ||||
| 90105-W0046 | ||||
| 90119-06467 | ||||
| 90119-W0059 | ||||
| 91642-81025 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
