CUR10L-GRMDYW (2004)
Toyota Corolla Verso

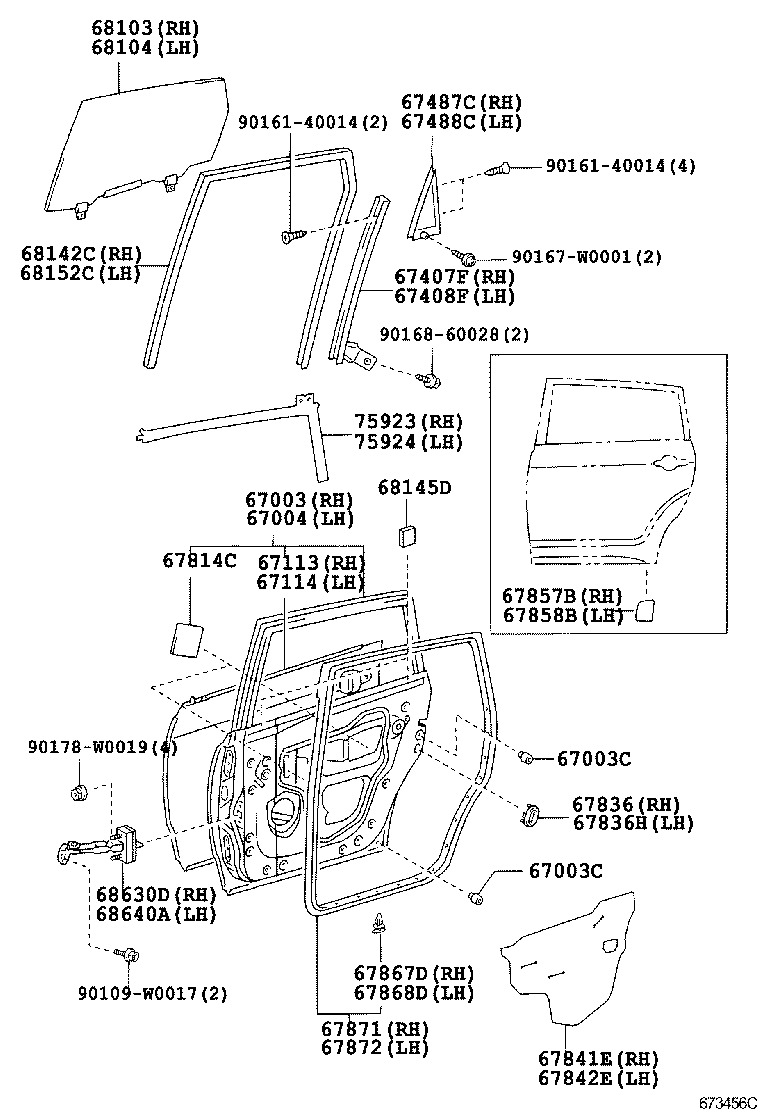

ILLUST NO. 1 OF 2(0402- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
AUR10,CUR10,ZNR1# |
4 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09124 |
AUR10,CUR10,ZNR1# |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0F010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-0F010 |
CUR10 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-0F010 |
CUR10 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-0F010 |
CUR10 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-0F010 |
CUR10 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-0F010 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-0F010 |
AUR10,CUR10,ZNR1#..DCR,DCRL,HTWC |
1 | ||
| 67814C - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
CUR10 |
4 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
CUR10 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
CUR10 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0F010 |
CUR10 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0F010 |
CUR10 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-0F010 |
AUR10,CUR10,ZNR1# W/ANTI-CHIPPING |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-0F010 |
CUR10 W/ANTI-CHIPPING |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-02020 |
CUR10 |
21 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-02020 |
CUR10 |
21 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0F010 |
CUR10 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0F010 |
CUR10 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-0F010 |
AUR10,CUR10,ZNR1#..DCR,HTWC *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-0F010 |
AUR10,CUR10,ZNR1#..DCR,HTWC *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0F010 |
CUR10 |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
CUR10 |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0F010 |
CUR10 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-64010 |
CUR10 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-64010 |
CUR10 |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-0F010 |
CUR10 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-0F010 |
CUR10 |
1 | ||
| Common parts | ||||
| 90109-W0017 | ||||
| 90161-40014 | ||||
| 90167-W0001 | ||||
| 90168-60028 | ||||
| 90178-W0019 | ||||

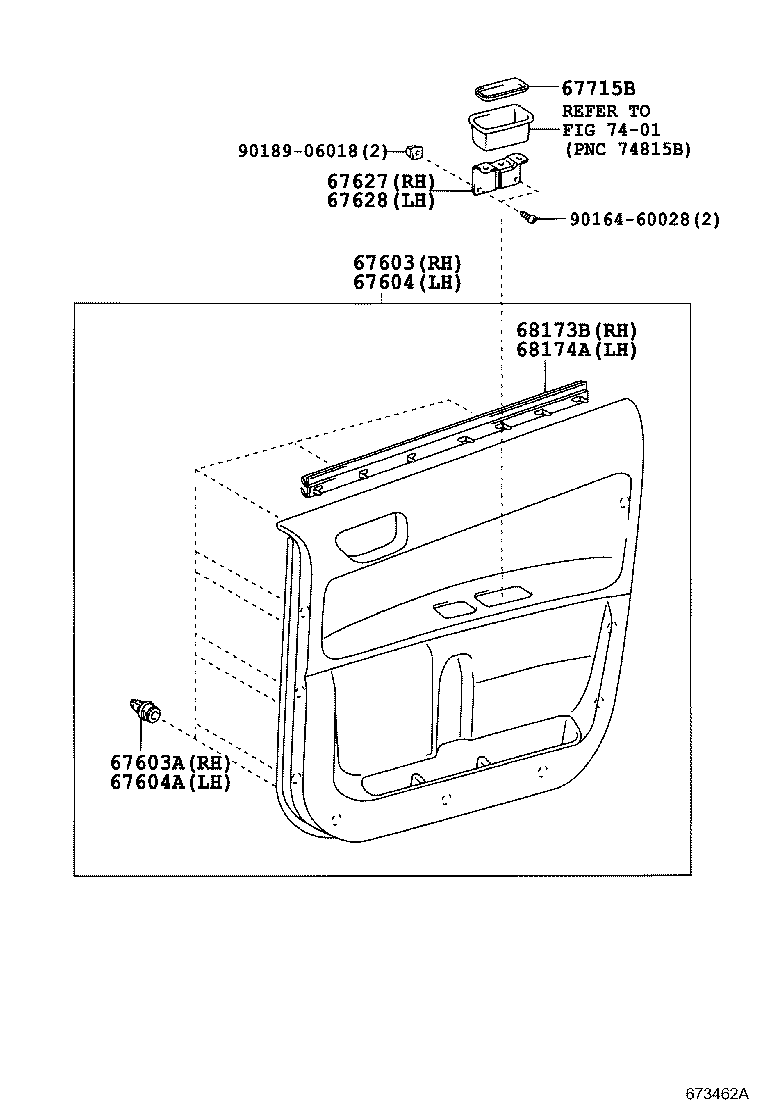

ILLUST NO. 2 OF 2(0402- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0F010B1 |
CUR10,ZNR1#..TERRA DK.GRAY,TRIM11 |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-W0005 |
CUR10 (L) |
9 | ||
| 90467-10161 |
CUR10 (J) |
9 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0F010B1 |
CUR10,ZNR1#..TERRA DK.GRAY,TRIM11 |
1 | ||
| 67604A - BOARD ASSY, SLIDE DOOR TRIM, UPPER, LH | ||||
| 90467-W0005 |
CUR10 (L) |
9 | ||
| 90467-10161 |
CUR10 (J) |
9 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-0F010 |
CUR10 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67625-0F010 |
CUR10 |
1 | ||
| 67715B - PAD, REAR DOOR TRIM | ||||
| 67715-0F010 |
AUR10,CUR10,ZNR1# |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0F010 |
CUR10 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0F010 |
CUR10 |
1 | ||
| Common parts | ||||
| 90164-60028 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7401 | ||||
