CUR10L-GRMDYW (2004)
Toyota Corolla Verso

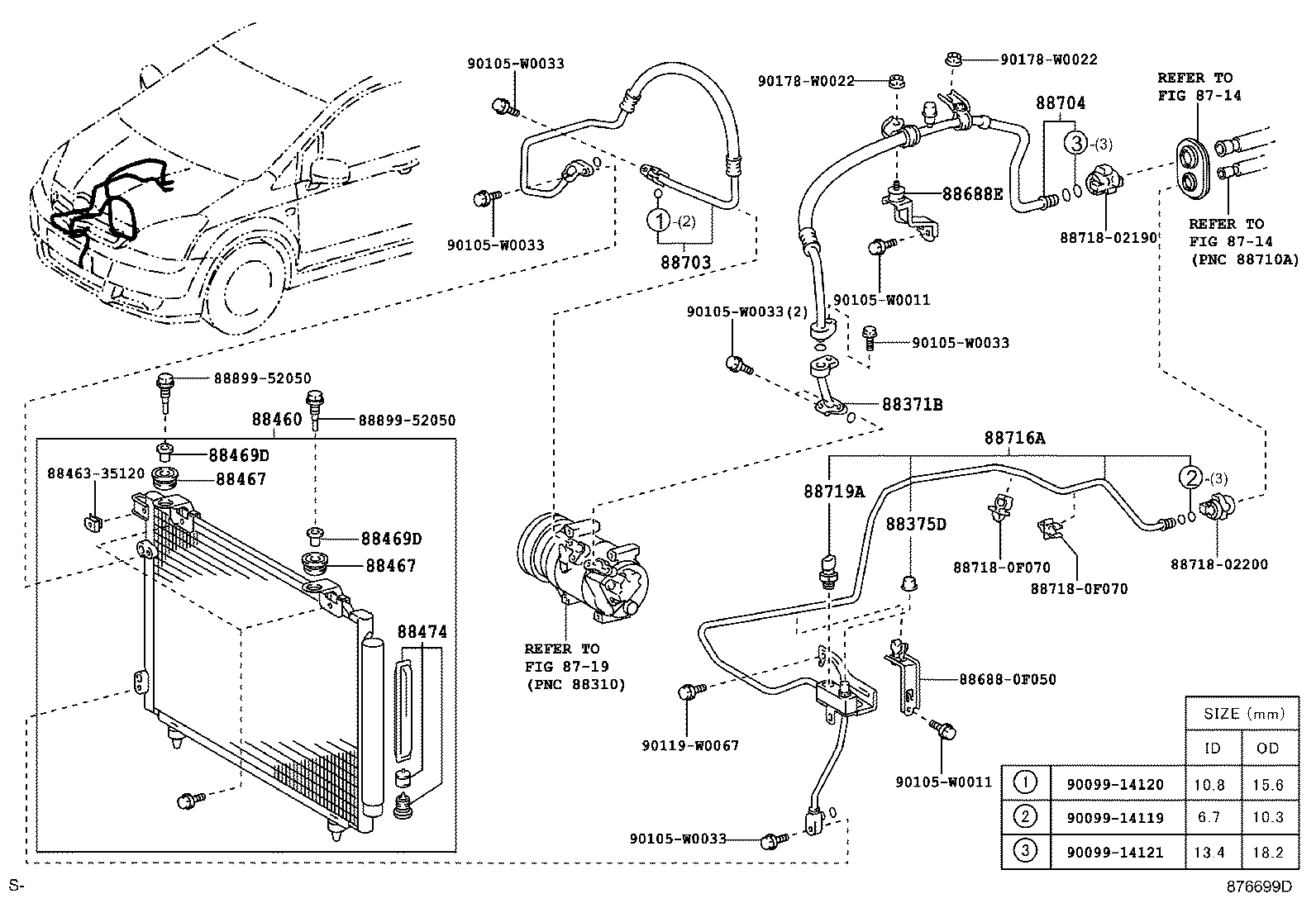

(0402-0508)CUR10..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88371B - VALVE, SUCTION SERVICE | ||||
| 88371-05010 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88371-05010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
AUR10,CUR10,ZNR1#..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88375-30280 |
AUR10,CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-0F120 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88450-0F110 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467-12180 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467-12180 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469-52010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469-52010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-0F020 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-0F040 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88703-0F030 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0F050 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-0F160 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88706-0F170 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
AUR10,CUR10,ZNR1#..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| Common parts | ||||
| 88463-35120 | ||||
| 88688-0F050 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-0F070 | ||||
| 88899-52050 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-W0011 | ||||
| 90105-W0033 | ||||
| 90119-W0067 | ||||
| 90178-W0022 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

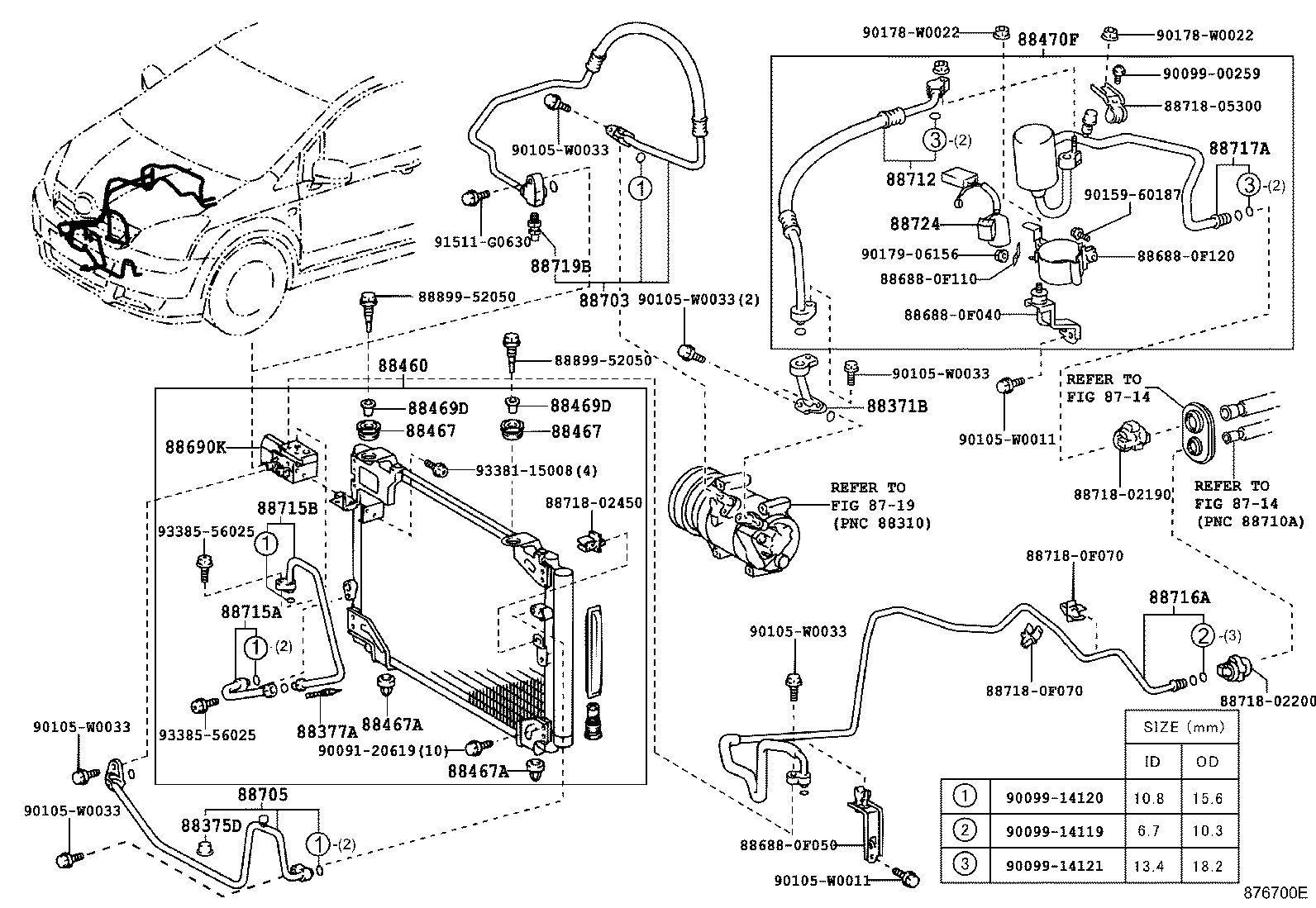

(0402-0508)CUR10..LHD
COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88371B - VALVE, SUCTION SERVICE | ||||
| 88371-05010 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88371-05010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
AUR10,CUR10,ZNR1#..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88375-30280 |
AUR10,CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88377A - FILTER, REFRIGERANT | ||||
| 88377-52010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88450-0F120 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88450-0F110 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467-12180 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467-12180 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-05010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469-52010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-52010 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88469-52010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
2 | ||
| 88470F - ACCUMULATOR & ACCESSORY ASSY | ||||
| 88470-0F040 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-05010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-0F040 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88703-0F030 |
CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-0F020 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-0F030 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-05010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-0F010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88706-0F160 |
CUR10..LHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88706-0F170 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-0F010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88719B - SENSOR, AIR CONDITIONER PRESSURE, NO.2 | ||||
| 88719-40020 |
AUR10,CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| 88724 - HEATER, REFRIGERANT | ||||
| 88724-0F010 |
CUR10..LHD..TERRA COLD SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION) |
1 | ||
| Common parts | ||||
| 88688-0F040 | ||||
| 88688-0F050 | ||||
| 88688-0F110 | ||||
| 88688-0F120 | ||||
| 88718-02190 | ||||
| 88718-02200 | ||||
| 88718-02450 | ||||
| 88718-05300 | ||||
| 88718-0F070 | ||||
| 88899-52050 | ||||
| 90091-20619 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-W0011 | ||||
| 90105-W0033 | ||||
| 90159-60187 | ||||
| 90178-W0022 | ||||
| 90179-06156 | ||||
| 91511-G0630 | ||||
| 93381-15008 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
