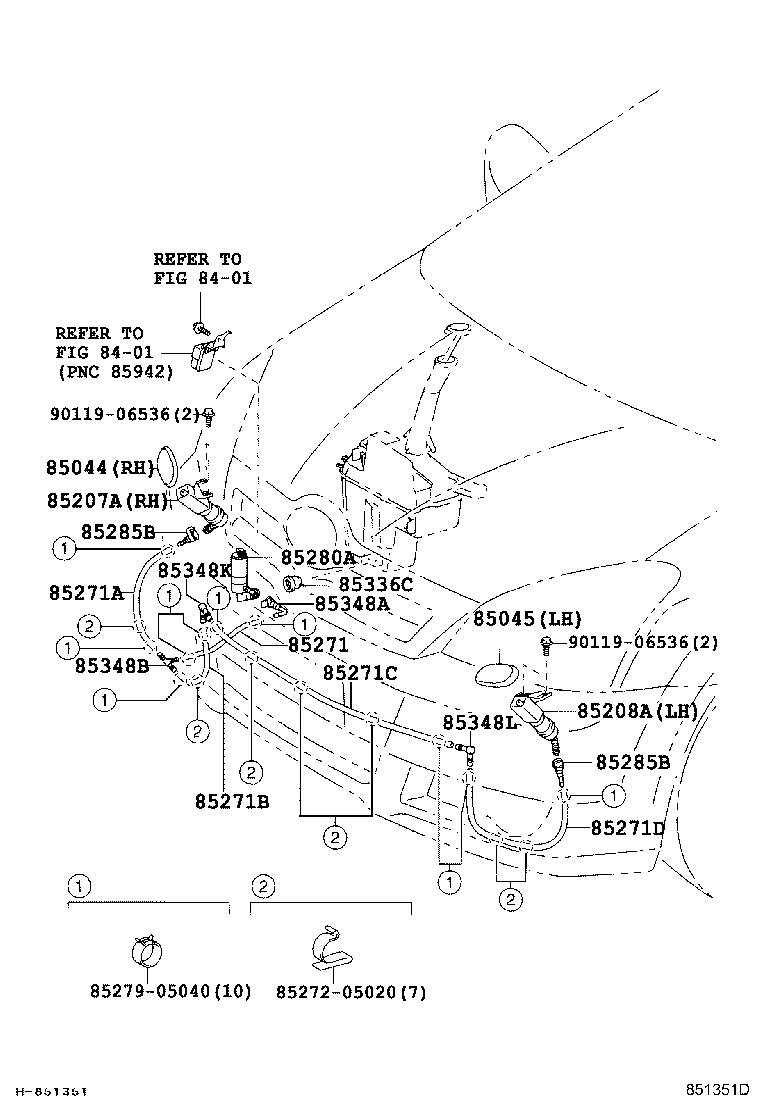

CUR10L-GRMDYW (2004)
Toyota Corolla Verso
(0402-0705)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH | ||||
| 85044-0F010B1 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),GRAY M.M.,1C3 |
1 | ||
| 85044-0F010B0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),SILVER ME.,1C0 |
1 | ||
| 85044-0F010A0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),SUPER WHITE 2,040 |
1 | ||
| 85044-0F010D0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK. RED M.M.,3Q3 |
1 | ||
| 85044-0F010E0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),BEIGE M.M.,4S0 |
1 | ||
| 85044-0F010J0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK.BLUE M.M.,8P4 |
1 | ||
| 85044-0F010J1 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK.BLUE,8Q4 |
1 | ||
| 85044-0F010J2 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),LT.BLUE M.M.,8S1 |
1 | ||
| 85044-0F010C0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),BLACK MC.,209 |
1 | ||
| 85044-0F010G0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK.GREEN M.M.,6S3 |
1 | ||
| 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH | ||||
| 85045-0F010A0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),SUPER WHITE 2,040 |
1 | ||
| 85045-0F010B0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),SILVER ME.,1C0 |
1 | ||
| 85045-0F010J1 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK.BLUE,8Q4 |
1 | ||
| 85045-0F010B1 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),GRAY M.M.,1C3 |
1 | ||
| 85045-0F010E0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),BEIGE M.M.,4S0 |
1 | ||
| 85045-0F010G0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK.GREEN M.M.,6S3 |
1 | ||
| 85045-0F010C0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),BLACK MC.,209 |
1 | ||
| 85045-0F010D0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK. RED M.M.,3Q3 |
1 | ||
| 85045-0F010J0 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),DK.BLUE M.M.,8P4 |
1 | ||
| 85045-0F010J2 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER),LT.BLUE M.M.,8S1 |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-0F010 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-0F010 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85277-05050 |
AUR10,CUR10,ZNR1#..LHD *H,L=440,WITH(HEADLAMP CLEANER) |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85276-02050 |
AUR10,CUR10,ZNR1#..LHD L=1380,WITH(HEADLAMP CLEANER) |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85277-05050 |
AUR10,CUR10,ZNR1#..LHD *H,L=440,WITH(HEADLAMP CLEANER) |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85276-05050 |
AUR10,CUR10,ZNR1#..LHD L=300,WITH(HEADLAMP CLEANER) |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 85276-02050 |
AUR10,CUR10,ZNR1#..LHD L=1380,WITH(HEADLAMP CLEANER) |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-02020 |
CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1 | ||||
| 85285-05040 |
CUR10..LHD WITH(HEADLAMP CLEANER) |
2 | ||
| 85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1 | ||||
| 85285-05040 |
CUR10..LHD WITH(HEADLAMP CLEANER) |
2 | ||
| 85336C - PACKING, HEADLAMP CLEANER MOTOR | ||||
| 90069-20005 |
AUR10,CUR10,ZNR1#..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90069-44001 |
CUR10..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85288-02030 |
CUR10..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85278-02050 |
CUR10..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85278-02050 |
CUR10..LHD WITH(HEADLAMP CLEANER) |
1 | ||
| Common parts | ||||
| 85272-05020 | ||||
| 85279-05040 | ||||
| 90119-06536 | ||||
| Linked diagrams | ||||
| 8401 | ||||
