CUR10L-GRMDYW (2004)
Toyota Corolla Verso

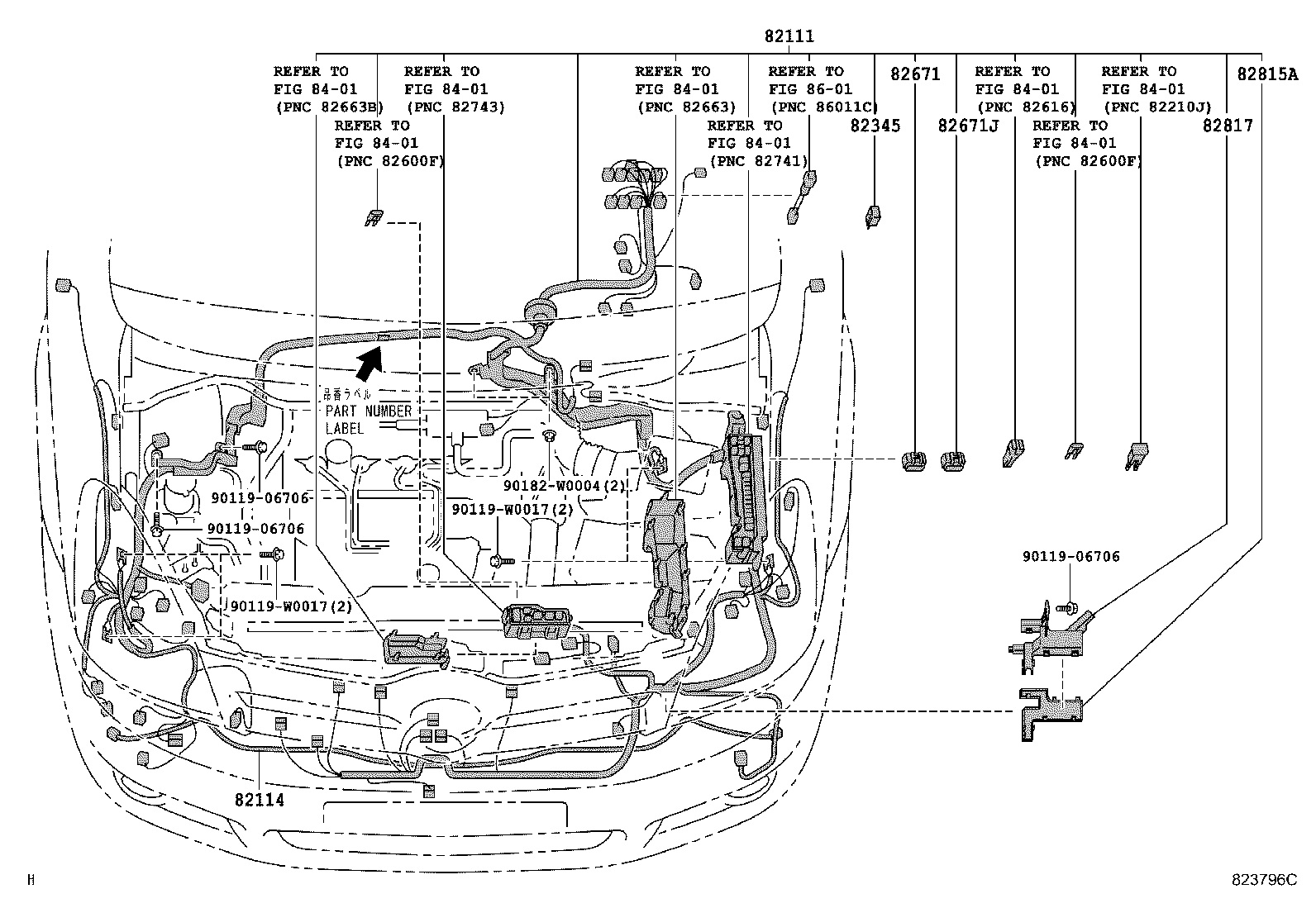

ILLUST NO. 1 OF 8(0402-0508)CUR10..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0F150 |
CUR10..LHD COLD SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-0F140 |
CUR10..LHD COLD SPEC |
1 | ||
| 82111-0F120 |
CUR10..LHD..TERRA COLD SPEC&VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-0F100 |
CUR10..LHD..TERRA VSC-W/O |
1 | ||
| 82111-0F110 |
CUR10..LHD..TERRA COLD SPEC&VSC-W/O |
1 | ||
| 82111-0F151 |
CUR10..LHD COLD SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-0F130 |
CUR10..LHD |
1 | ||
| 82111-0F101 |
CUR10..LHD..TERRA VSC-W/O |
1 | ||
| 82111-0F131 |
CUR10..LHD |
1 | ||
| 82111-0F121 |
CUR10..LHD..TERRA COLD SPEC&VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-0F141 |
CUR10..LHD COLD SPEC |
1 | ||
| 82111-0F111 |
CUR10..LHD..TERRA COLD SPEC&VSC-W/O |
1 | ||
| 82111-0F110 |
CUR10..LHD..TERRA PART NUMBER LABEL=82111-0F110 |
1 | ||
| 82111-0F120 |
CUR10..LHD..TERRA PART NUMBER LABEL=82111-0F120 |
1 | ||
| 82111-0F140 |
CUR10..LHD PART NUMBER LABEL=82111-0F140 |
1 | ||
| 82111-0F100 |
CUR10..LHD..TERRA PART NUMBER LABEL=82111-0F100 |
1 | ||
| 82111-0F131 |
CUR10..LHD PART NUMBER LABEL=82111-0F131 |
1 | ||
| 82111-0F130 |
CUR10..LHD PART NUMBER LABEL=82111-0F130 |
1 | ||
| 82111-0F121 |
CUR10..LHD..TERRA PART NUMBER LABEL=82111-0F121 |
1 | ||
| 82111-0F101 |
CUR10..LHD..TERRA PART NUMBER LABEL=82111-0F101 |
1 | ||
| 82111-0F151 |
CUR10..LHD PART NUMBER LABEL=82111-0F151 |
1 | ||
| 82111-0F111 |
CUR10..LHD..TERRA PART NUMBER LABEL=82111-0F111 |
1 | ||
| 82111-0F150 |
CUR10..LHD PART NUMBER LABEL=82111-0F150 |
1 | ||
| 82111-0F141 |
CUR10..LHD PART NUMBER LABEL=82111-0F141 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-0F010 |
CUR10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CUR10 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30360 |
CUR10 |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30370 |
CUR10 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0F010 |
CUR10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0F010 |
CUR10 |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90119-W0017 | ||||
| 90182-W0004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

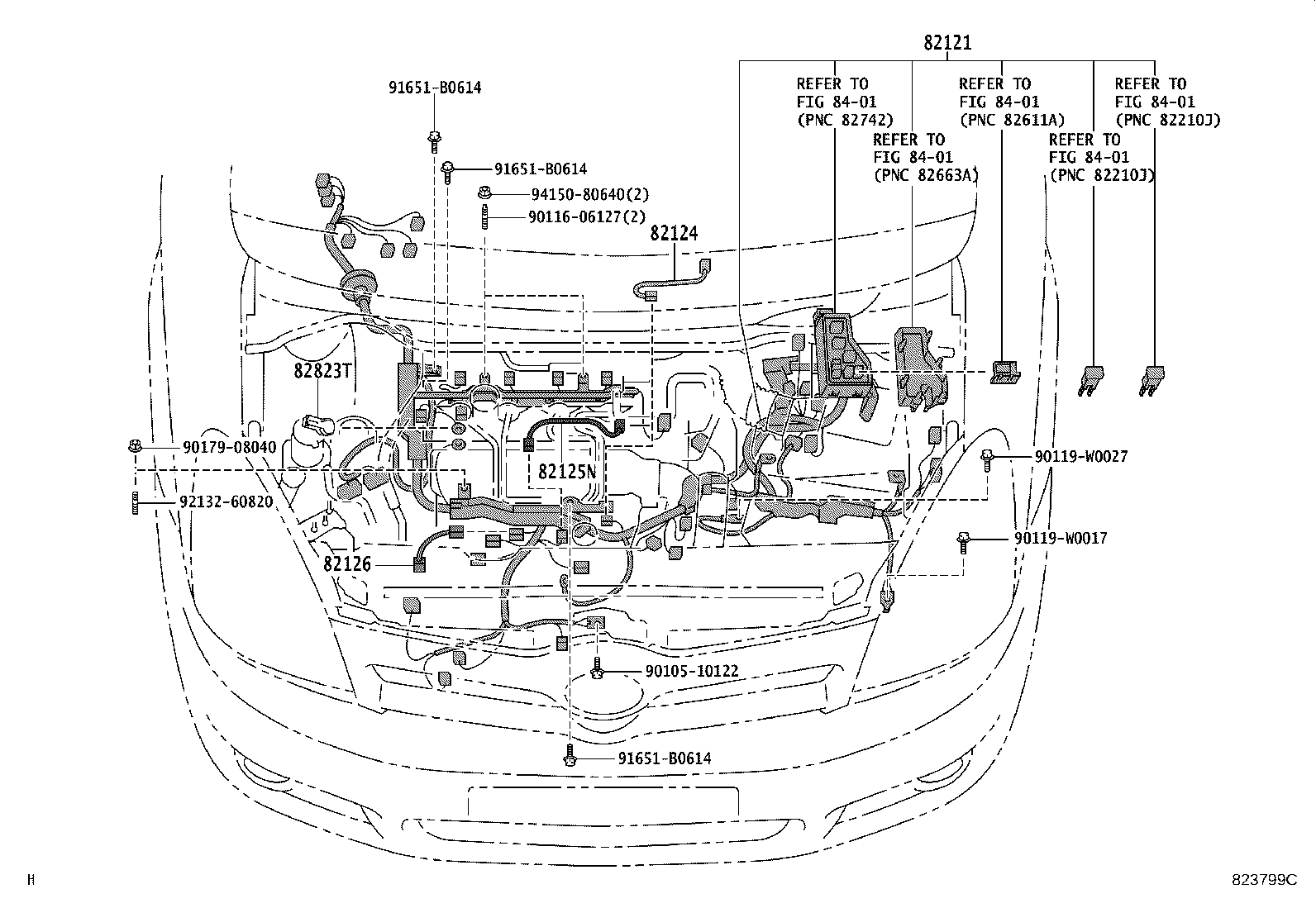

ILLUST NO. 2 OF 8(0402-0508)CUR10
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0F040 |
CUR10..LHD COLD SPEC |
1 | ||
| 82121-0F090 |
CUR10..LHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-05020 |
CUR10 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-20290 |
CUR10 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-05020 |
CUR10 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
AUR10,CUR10,ZNR1# |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-W0017 | ||||
| 90119-W0027 | ||||
| 90179-08040 | ||||
| 91651-B0614 | ||||
| 92132-60820 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 8(0402- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-0F150 |
CUR10..LHD..TERRA VSC-W/O |
1 | ||
| 82141-0F140 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82141-0F160 |
CUR10..LHD..TERRA DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82141-0F170 |
CUR10..LHD..TERRA |
1 | ||
| 82141-0F161 |
CUR10..LHD..TERRA DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82141-0F151 |
CUR10..LHD..TERRA VSC-W/O |
1 | ||
| 82141-0F171 |
CUR10..LHD..TERRA |
1 | ||
| 82141-0F141 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82141-0F140 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F140 |
1 | ||
| 82141-0F160 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F160 |
1 | ||
| 82141-0F150 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F150 |
1 | ||
| 82141-0F171 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F171 |
1 | ||
| 82141-0F170 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F170 |
1 | ||
| 82141-0F151 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F151 |
1 | ||
| 82141-0F161 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F161 |
1 | ||
| 82141-0F141 |
CUR10..LHD..TERRA PART NUMBER LABEL=82141-0F141 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-0F010 |
CUR10 |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-0F040 |
CUR10..LHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0F020 |
AUR10,CUR10,ZNR1#..LHD |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-22140 |
CUR10..LHD |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
ZNR1#..LHD..SOL;AUR10,CUR10..LHD;ZNR11..LHD..5FS..TERRA NO.1 |
1 | ||
| 82824-30220 |
CUR10..LHD..TERRA VSC-W/O&DAYTIME RUNNING LIGHT SYSTEM-WITH&OUTSIDE REAR VIEW MIRROR-WITH(HEATER),NO.5 |
3 | ||
| 82824-20110 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.2 |
1 | ||
| 82824-20130 |
AUR10,CUR10,ZNR1# NO.3 |
1 | ||
| 82824-30220 |
ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA VSC-W/O,NO.5 |
3 | ||
| 82824-30220 |
ZNR1#..RHD;AUR10,CUR10;ZNR1#..LHD..SOL NO.5 |
4 | ||
| 82824-22170 |
CUR10..LHD;AUR10,ZNR1# NO.9 |
1 | ||
| 82824-50110 |
AUR10,CUR10,ZNR1#..LHD NO.8 |
3 | ||
| 82824-44040 |
AUR10,CUR10;ZNR1#..TERRA NO.7 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-60545 | ||||
| 90159-60546 | ||||
| 90159-70003 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(0402- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0F010 |
CUR10..LHD..TERRA |
1 | ||
| 82151-0F020 |
CUR10..LHD..TERRA OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0F020 |
CUR10..LHD..TERRA OUTSIDE REAR VIEW MIRROR-WITH(HEATER) |
1 | ||
| 82152-0F010 |
CUR10..LHD..TERRA |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0F010 |
CUR10..TERRA |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0F010 |
CUR10..TERRA |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0F010 |
CUR10 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0F010 |
CUR10 |
1 | ||
| Common parts | ||||
| 82819-0F010 | ||||
| 82819-0F020 | ||||
| 90119-W0017 | ||||
ILLUST NO. 5 OF 8(0402- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0F040 |
CUR10..LHD..TERRA DAYTIME RUNNING LIGHT SYSTEM-WITH&SRS AIR BAG-DRIVE,PASSENGER,KNEE,SIDE |
1 | ||
| 82161-0F050 |
CUR10..LHD DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82161-0F010 |
CUR10..LHD..TERRA |
1 | ||
| 82161-0F080 |
CUR10..LHD..TERRA SRS AIR BAG-DRIVE,PASSENGER,KNEE,SIDE |
1 | ||
| 82161-0F010 |
CUR10..LHD..TERRA PART NUMBER LABEL=82161-0F010 |
1 | ||
| 82161-0F050 |
CUR10..LHD PART NUMBER LABEL=82161-0F050 |
1 | ||
| 82161-0F040 |
CUR10..LHD..TERRA PART NUMBER LABEL=82161-0F040 |
1 | ||
| 82161-0F080 |
CUR10..LHD..TERRA PART NUMBER LABEL=82161-0F080 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-0F030 |
CUR10,ZNR1#..LHD..TERRA CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82162-0F010 |
CUR10,ZNR1#..LHD..TERRA |
1 | ||
| 82162-0F020 |
CUR10,ZNR1#..LHD..TERRA SRS AIR BAG-DRIVE,PASSENGER,KNEE,SIDE |
1 | ||
| 82162-0F020 |
CUR10,ZNR1#..LHD..TERRA SRS AIR BAG-DRIVE,PASSENGER,KNEE,SIDE&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82162-0F020 |
CUR10,ZNR1#..LHD..TERRA PART NUMBER LABEL=82162-0F020 |
1 | ||
| 82162-0F010 |
CUR10,ZNR1#..LHD..TERRA PART NUMBER LABEL=82162-0F010 |
1 | ||
| 82162-0F030 |
CUR10,ZNR1#..LHD..TERRA PART NUMBER LABEL=82162-0F030 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-0F010 |
CUR10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0F010 |
CUR10..TERRA |
1 | ||
| 82171-0F010 |
CUR10..TERRA PART NUMBER LABEL=82171-0F010 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-05070 |
CUR10 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
CUR10 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-05080 |
CUR10 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
CUR10 |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
ILLUST NO. 6 OF 8(0402- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-05190 | ||||
| 82715-05200 | ||||
| 82715-0F020 | ||||
| 82715-0F030 | ||||
| 82715-0F050 | ||||
| 82715-12680 | ||||
| 82715-13100 | ||||
| 82715-13120 | ||||
| 82715-13150 | ||||
| 82715-18031 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A30 | ||||
| 82715-20A40 | ||||
| 82715-20A50 | ||||
| 82715-20A70 | ||||
| 82715-20A80 | ||||
| 82715-20A90 | ||||
| 82715-20B00 | ||||
| 82715-20B10 | ||||
| 82715-20B20 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82729-20010 | ||||
| 82729-20120 | ||||
| 82729-20140 | ||||
| 82729-20150 | ||||
| 82729-20160 | ||||
| 82729-20190 | ||||
| 82729-20220 | ||||
| 82729-20230 | ||||
| 82729-20250 | ||||
| 82729-20260 | ||||
| 82729-20290 | ||||
| 82729-28120 | ||||
| 90119-06625 | ||||
| 90119-W0027 | ||||
| 90119-W0041 | ||||
| 90119-W0043 | ||||
| 90119-W0050 | ||||
| 90119-W0059 | ||||
| 90179-06274 | ||||
| 90179-08040 | ||||
| 91512-B1016 | ||||
| 91611-60814 | ||||
| 91631-J0612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| 91671-80614 | ||||
| 91671-A0614 | ||||
ILLUST NO. 8 OF 8(0402- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10964 | ||||
| 90980-11019 | ||||
| 90980-11096 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
ILLUST NO. 6 OF 8(0402- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16790 | ||||
| 82711-33550 | ||||
| 82711-50190 | ||||
| 82715-0F010 | ||||
| 82715-0F040 | ||||
| 82715-0F060 | ||||
| 82715-20A60 | ||||
| 82715-20B30 | ||||
| 90119-W0027 | ||||
| 90119-W0059 | ||||
| 90163-W0002 | ||||
| 90178-W0022 | ||||
| 90464-00763 | ||||
| 91651-B0614 | ||||
| 91671-A0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
