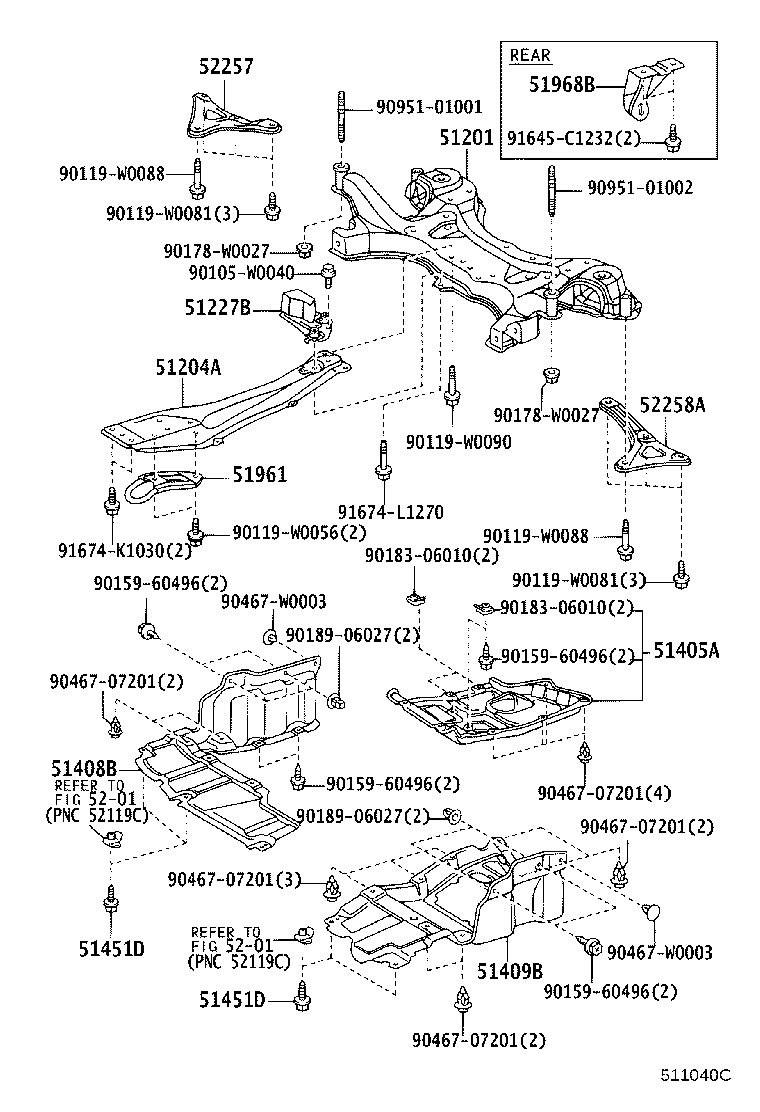

Toyota Corolla verso CUR10 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0F010	CUR10,ZNR1#	02/2004 - 02/2005	1
51201-0F011	CUR10	03/2005 - 08/2005	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-05022	CUR10	02/2004 - 08/2005	1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-64010	CUR10	02/2004 - 08/2005	1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-0F010	CUR10	02/2004 - 08/2005	1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
51408-0F011	CUR10,ZNR1#	04/2005 - 08/2005	1
51408-0F010	CUR10,ZNR1#	02/2004 - 03/2005	1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
51409-0F010	CUR10,ZNR1#	02/2004 - 08/2005	1
51451D - SCREW, NO.1
90159-60488	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	2
51451D - SCREW, NO.1
90159-60488	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	2
51961 - HOOK, NO.1
51960-0F010	CUR10	02/2004 - 08/2005	1
51968B - HOOK, TRANSPORT, REAR LH
51968-02020	CUR10	02/2004 - 08/2005	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-02020	CUR10	02/2004 - 08/2005	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-0F010	CUR10	02/2004 - 08/2005	1
Common parts
90105-W0040
90119-W0056
90119-W0081
90119-W0088
90119-W0090
90159-60496
90178-W0027
90183-06010
90189-06027
90467-07201
90467-W0003
90951-01001
90951-01002
91645-C1232
91674-K1030
91674-L1270
Linked diagrams
5201

CUR10L-GRMDYW (2004)
