CUR10L-GRMDYW (2004)

Toyota Corolla Verso

Production Feb 2004 - Aug 2005
Engine 1CDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )CUR10..LHD

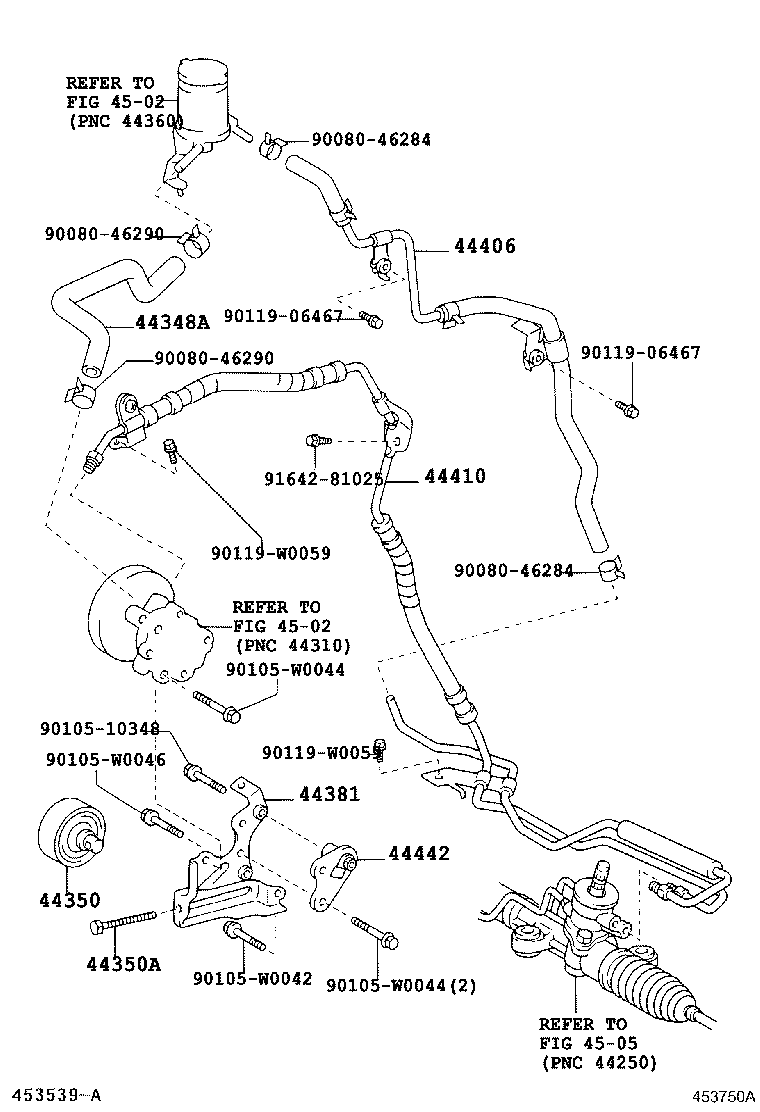

Click highlighted areas on diagram

diagram 44348A 44350 44350A 44381 44406 44410 44442 4502 4502 4505 9008046284 9008046284 9008046290 9008046290 9010510348 90105W0042 90105W0044 90105W0044 90105W0046 9011906467 9011906467 90119W0059 90119W0059 9164281025
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-05090

CUR10

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12070

CUR10

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90109-08106

CUR10

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-13010

CUR10

 1
44406 - TUBE SUB-ASSY, RETURN
44406-0F020

CUR10

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-0F030

CUR10..LHD

 1
44442 - BRACKET, PUMP, REAR
44442-05020

CUR10

 1
Common parts
90080-46284
90080-46290
90105-10348
90105-W0042
90105-W0044
90105-W0046
90119-06467
90119-W0059
91642-81025
Linked diagrams
4502
4505
