CUR10L-GRMDYW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
Aug 2005
Engine
1CDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )CUR10

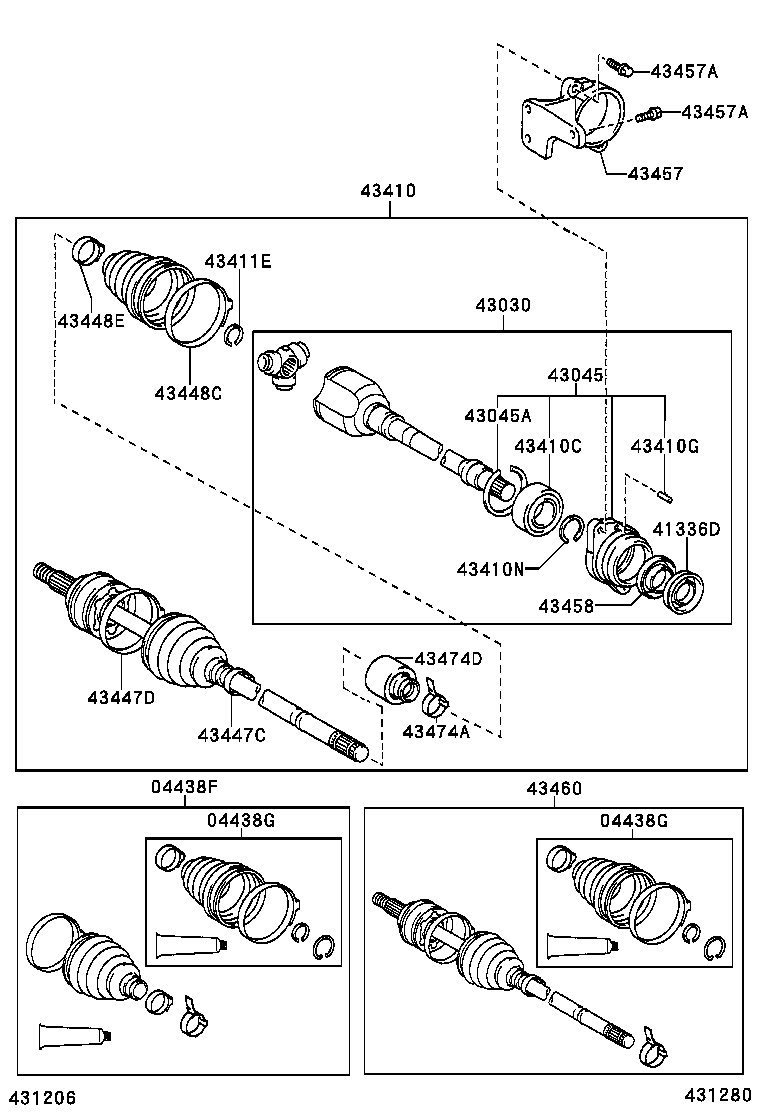

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-0F040 |
CUR10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-05250 |
CUR10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-05250 |
CUR10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-05080 |
CUR10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-0F010 |
CUR10 |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-64020 |
CUR10 |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 90520-69002 |
CUR10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0F021 |
CUR10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-41003 |
CUR10 |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
CUR10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52106 |
CUR10 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-02020 |
CUR10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0F020 |
CUR10 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-05240 |
CUR10 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02080 |
CUR10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02090 |
CUR10 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-05030 |
CUR10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10361 |
CUR10 *10-1.25PX22-19.5 |
5 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10361 |
CUR10 *10-1.25PX22-19.5 |
5 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-05020 |
CUR10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-09B50 |
CUR10 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-0F040 |
CUR10 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0F010 |
CUR10 |
1 | ||
(0402- )CUR10

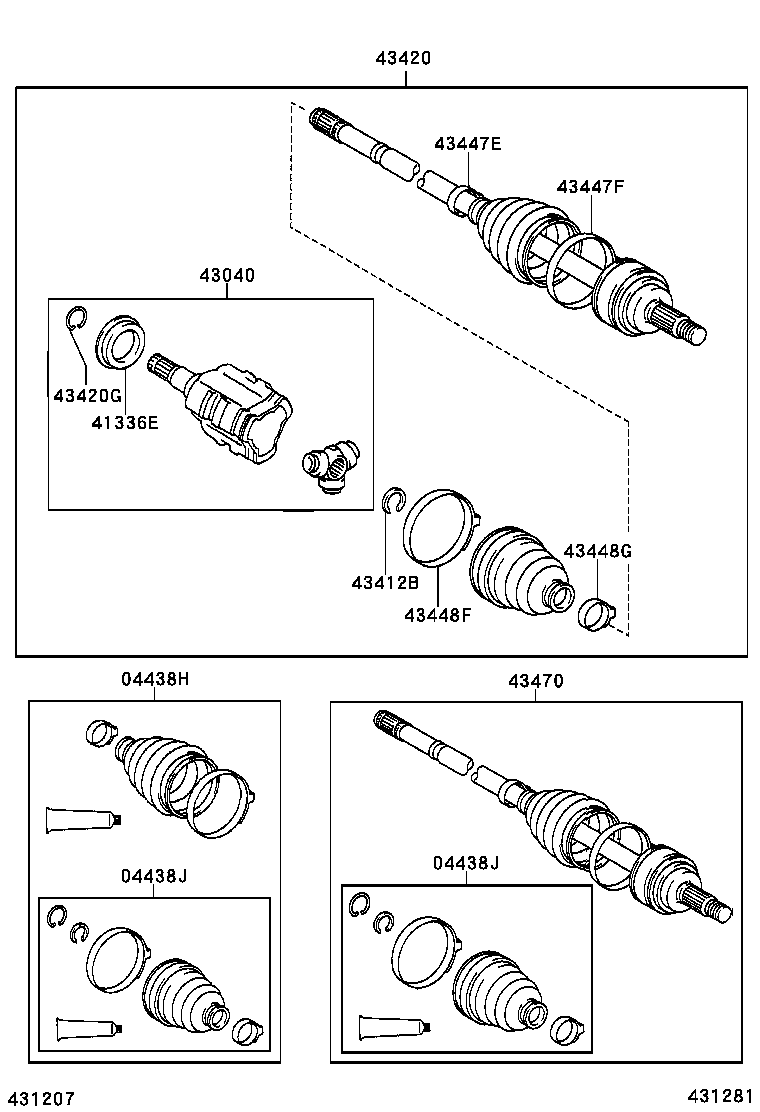

Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-0F030 |
CUR10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-02131 |
CUR10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-02131 |
CUR10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-05090 |
CUR10 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-02050 |
CUR10 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-02020 |
CUR10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0F020 |
CUR10 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
CUR10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-05230 |
CUR10 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-05240 |
CUR10 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-02080 |
CUR10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-02090 |
CUR10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09B40 |
CUR10 |
1 | ||
