CUR10L-GRMDYW (2004)
Toyota Corolla Verso
(0402- )CUR10
E358
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30006 |
CUR10 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-28011 |
CUR10 |
1 | ||
| 31115-20061 |
CUR10 |
1 | ||
| 31116F - SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER) | ||||
| 90311-40025 |
CUR10 |
1 | ||
| 31116H - BOLT(FOR FRONT TRANSAXLE CASE COVER) | ||||
| 91622-B1025 |
CUR10 |
2 | ||
| 31116P - COVER, TRANSAXLE CASE | ||||
| 31116-20010 |
CUR10 |
1 | ||
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-28010 |
CUR10 |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-20010 |
CUR10 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-28050 |
CUR10 N=32 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28080 |
CUR10 |
1 | ||
| 41221-20390 |
CUR10 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
AUR10,CUR10 |
16 | ||
| 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||||
| 41301-28070 |
CUR10 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56056 |
CUR10 T=2.05,MARK 1 |
1 | ||
| 90564-56055 |
CUR10 T=2.00,MARK 0 |
1 | ||
| 90564-56057 |
CUR10 T=2.10,MARK 2 |
1 | ||
| 90564-56060 |
CUR10 T=2.25,MARK 5 |
1 | ||
| 90564-56059 |
CUR10 T=2.20,MARK 4 |
1 | ||
| 90564-56063 |
CUR10 T=2.40,MARK 8 |
1 | ||
| 90564-56061 |
CUR10 T=2.30,MARK 6 |
1 | ||
| 90564-56058 |
CUR10 T=2.15,MARK 3 |
1 | ||
| 90564-56072 |
CUR10 T=2.85,MARK H |
1 | ||
| 90564-56066 |
CUR10 T=2.55,MARK B |
1 | ||
| 90564-56069 |
CUR10 T=2.70,MARK E |
1 | ||
| 90564-56062 |
CUR10 T=2.35,MARK 7 |
1 | ||
| 90564-56064 |
CUR10 T=2.45,MARK 9 |
1 | ||
| 90564-56068 |
CUR10 T=2.65,MARK D |
1 | ||
| 90564-56065 |
CUR10 T=2.50,MARK A |
1 | ||
| 90564-56071 |
CUR10 T=2.80,MARK G |
1 | ||
| 90564-56070 |
CUR10 T=2.75,MARK F |
1 | ||
| 90564-56067 |
CUR10 T=2.60,MARK C |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57001 |
CUR10 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50072 |
CUR10 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
CUR10 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-28020 |
CUR10 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
CUR10 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-28010 |
CUR10 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
AUR10,CUR10,ZNR1# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28010 |
CUR10 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CUR10 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
CUR10 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28250 |
CUR10 T=1.2,MARK 3 |
2 | ||
| 41361-28240 |
CUR10 T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
CUR10 T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
CUR10 T=1.3,MARK 4 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28250 |
CUR10 T=1.2,MARK 3 |
2 | ||
| 41361-28240 |
CUR10 T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
CUR10 T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
CUR10 T=1.3,MARK 4 |
2 | ||

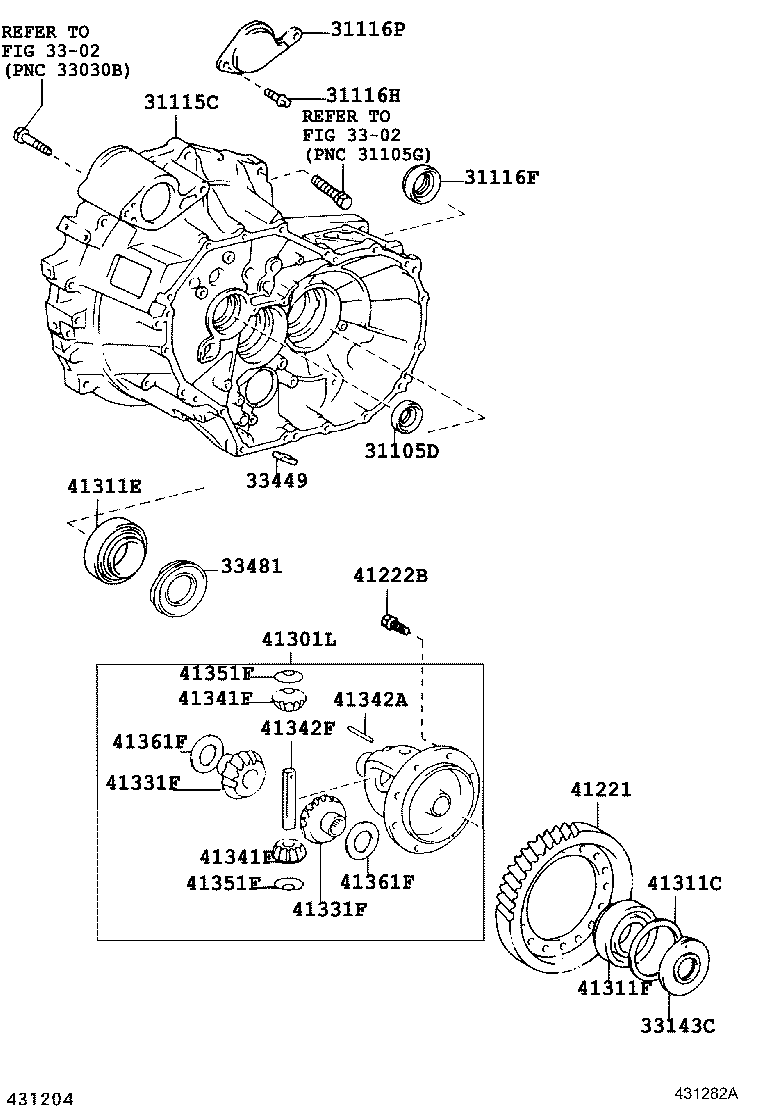

| Linked diagrams | ||||
| 3302 | ||||
