CUR10L-GRMDYW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
Aug 2005
Engine
1CDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(0402- )AUR10,CUR10..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0F020 |
CUR10..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-17004 |
CUR10..LHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
CUR10 |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
CUR10 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CUR10 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
CUR10 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
CUR10 |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
CUR10 NO.1 |
1 | ||
| 90389-05019 |
CUR10 NO.2 |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
CUR10 NO.1 |
1 | ||
| 90389-05019 |
CUR10 NO.2 |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03143 |
CUR10 |
1 | ||
| 90949-03122 |
CUR10 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
CUR10 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
CUR10 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08143 |
CUR10 L=30 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
CUR10 |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0F030 |
AUR10,CUR10..LHD |
1 | ||
| Common parts | ||||
| 90119-W0046 | ||||
| 90179-08186 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 8401 | ||||

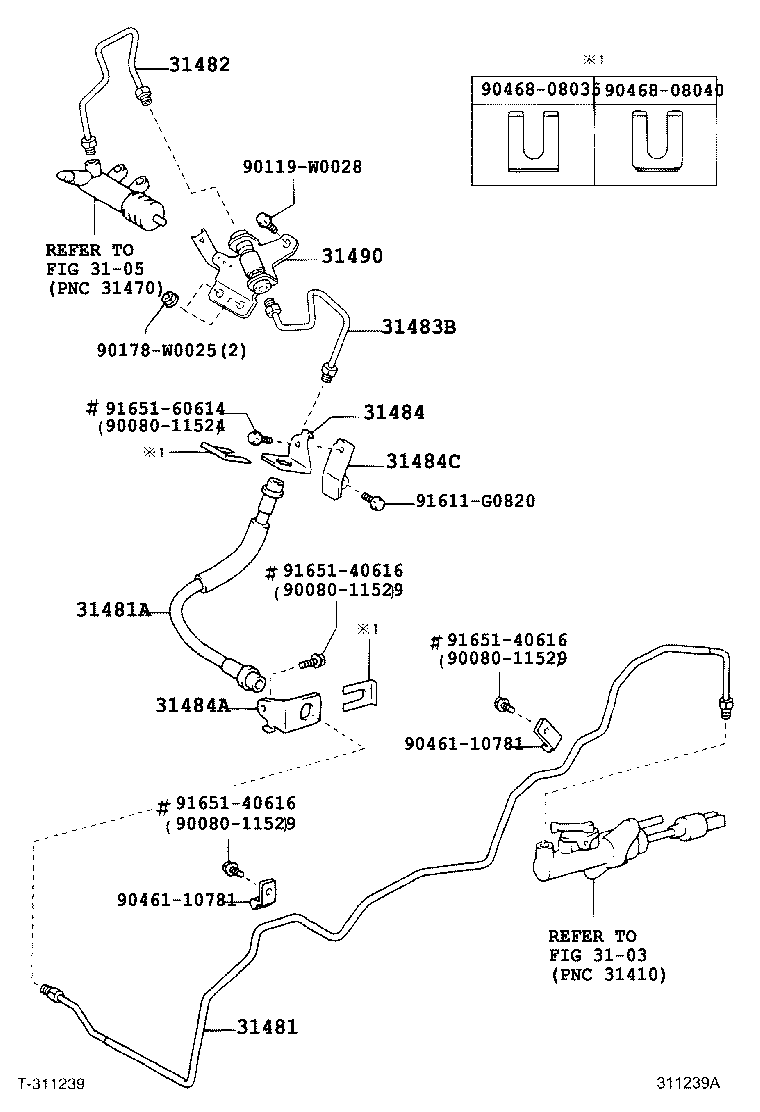

ILLUST NO. 2 OF 2(0402-0508)CUR10..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02190 |
CUR10..LHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90080-94130 |
AUR10,CUR10..DCR,DCRL |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-0F010 |
CUR10 |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-0F010 |
CUR10 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12400 |
CUR10 |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-12380 |
CUR10 |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20320 |
CUR10 |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-0F010 |
CUR10 |
1 | ||
| Common parts | ||||
| 90080-11524 | ||||
| 90080-11529 | ||||
| 90119-W0028 | ||||
| 90178-W0025 | ||||
| 90461-10781 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91611-G0820 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
