CUR10L-GRMDYW (2004)

Toyota Corolla Verso

Production Feb 2004 - Aug 2005
Engine 1CDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )1CDFTV

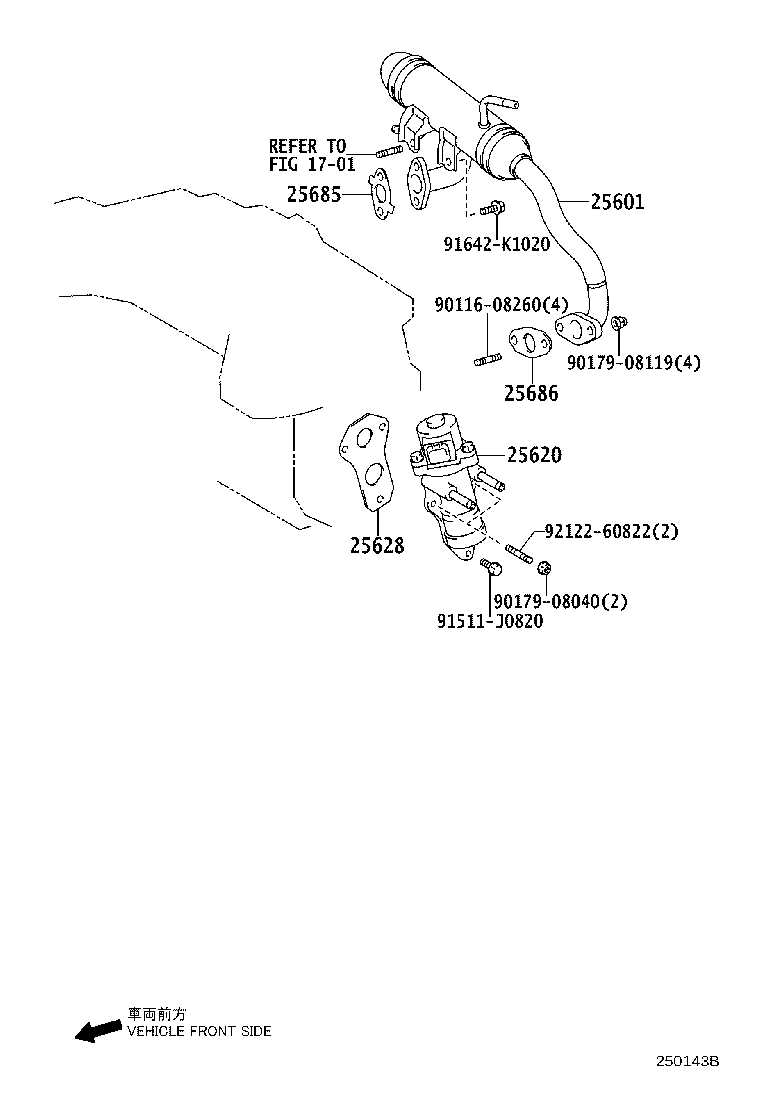

Click highlighted areas on diagram

diagram 1701 25601 25620 25628 25685 25686 9011608260 9017908040 9017908119 91511J0820 91642K1020 9212260822
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-27020

1CDFTV..CUR10

 1
25620 - VALVE ASSY, EGR
25620-27090

1CDFTV..CUR10

 1
25628 - GASKET, EGR INLET
25628-27010

1CDFTV..CUR10

 1
25685 - GASKET, EGR COOLER, NO.1
25685-27010

1CDFTV..CUR10

 1
25686 - GASKET, EGR COOLER, NO.2
25686-27010

1CDFTV..CUR10

 1
Common parts
90116-08260
90179-08040
90179-08119
91511-J0820
91642-K1020
92122-60822
Linked diagrams
1701
