CUR10L-GRMDYW (2004)

Toyota Corolla Verso

Production Feb 2004 - Aug 2005
Engine 1CDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )1CDFTV

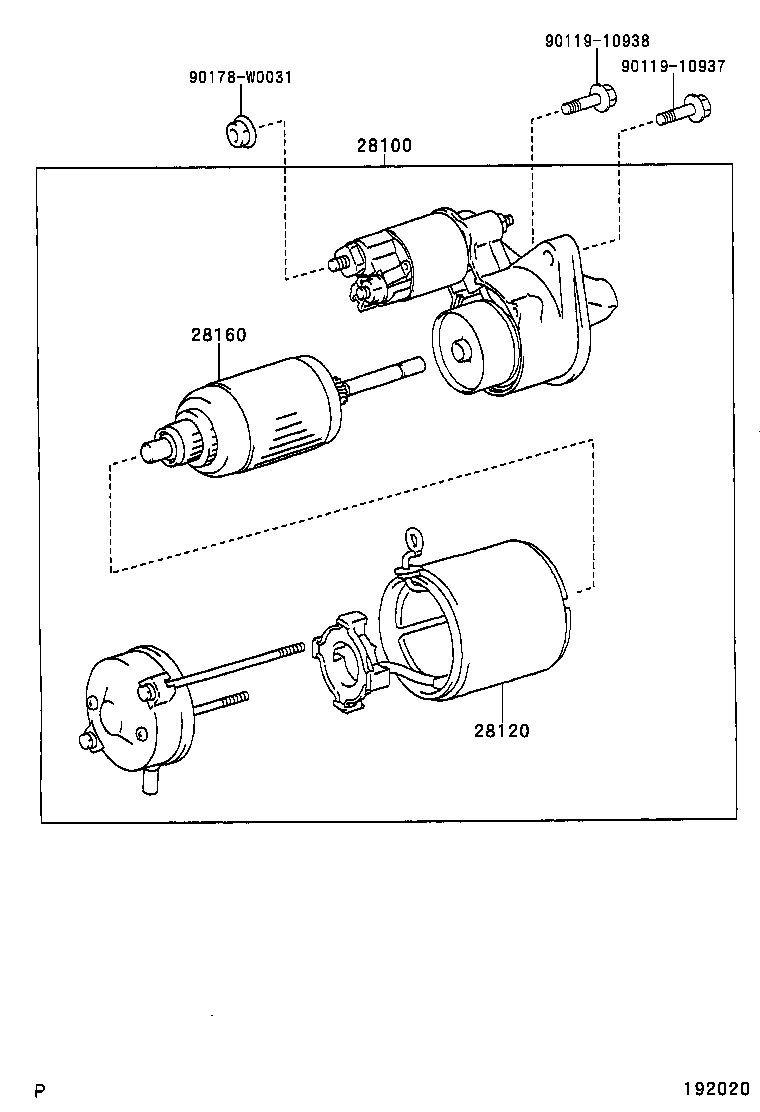

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28160 9011910937 9011910938 90178W0031
Part # Description Qty Price
28100 - STARTER ASSY
28100-0G020

1CDFTV..CUR10

12V 2.0KW

 1
28120 - YOKE ASSY, STARTER
28120-0G020

2AD#,1CDFTV..AUR10,CUR10

 1
28160 - ARMATURE ASSY, STARTER
28160-0G020

2AD#,1CDFTV..AUR10,CUR10

 1
Common parts
90119-10937
90119-10938
90178-W0031
