CUR10L-GRMDYW (2004)
Toyota Corolla Verso
Production
Feb 2004
-
Aug 2005
Engine
1CDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0402- )1CDFTV

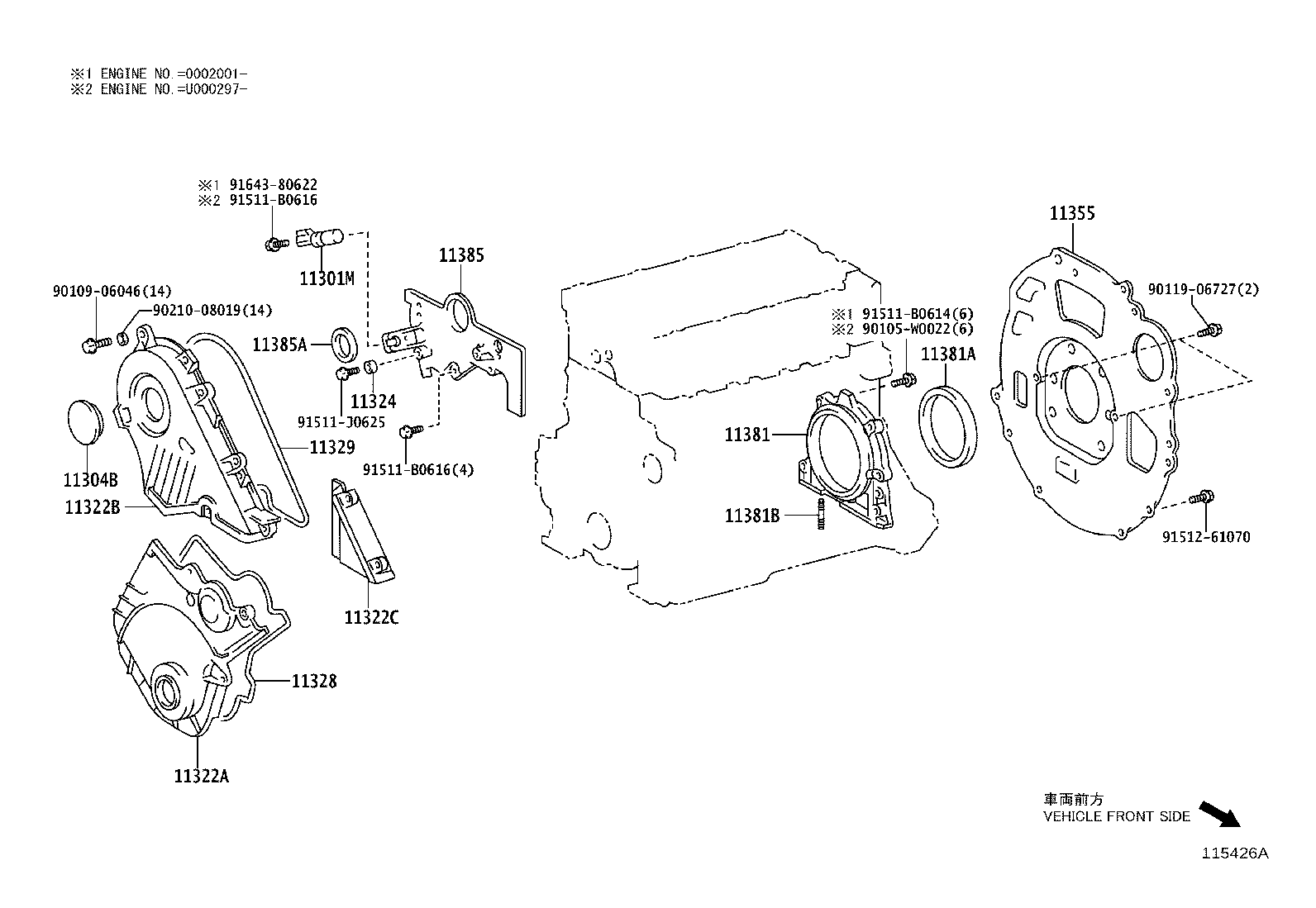

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05012 |
1CDFTV..CUR10 |
1 | ||
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01357 |
1CDFTV..CUR10 OD=64 |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11321-27011 |
1CDFTV..CUR10 |
1 | ||
| 11322B - COVER, TIMING BELT, NO.2 | ||||
| 11322-27011 |
1CDFTV..CUR10 |
1 | ||
| 11322C - COVER, TIMING BELT, NO.3 | ||||
| 11323-27010 |
1CDFTV..CUR10 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-27010 |
1CDFTV..CUR10 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-27010 |
1CDFTV..CUR10 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-27010 |
1CDFTV..CUR10 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-27011 |
1CDFTV..CUR10 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-64020 |
1CDFTV..CUR10 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-90008 |
1CDFTV..CUR10 |
1 | ||
| 11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) | ||||
| 90126-06018 |
1CDFTV..CUR10 |
2 | ||
| 11385 - RETAINER, CAMSHAFT OIL SEAL | ||||
| 11382-27010 |
1CDFTV..CUR10 |
1 | ||
| 11385A - SEAL, OIL(FOR CAMSHAFT) | ||||
| 90311-38081 |
1CDFTV..CUR10 |
1 | ||
| Common parts | ||||
| 90105-W0022 | ||||
| 90109-06046 | ||||
| 90119-06727 | ||||
| 90210-08019 | ||||
| 91511-B0614 | ||||
| 91511-B0616 | ||||
| 91511-J0625 | ||||
| 91512-61070 | ||||
| 91643-80622 | ||||
