CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )CDE120

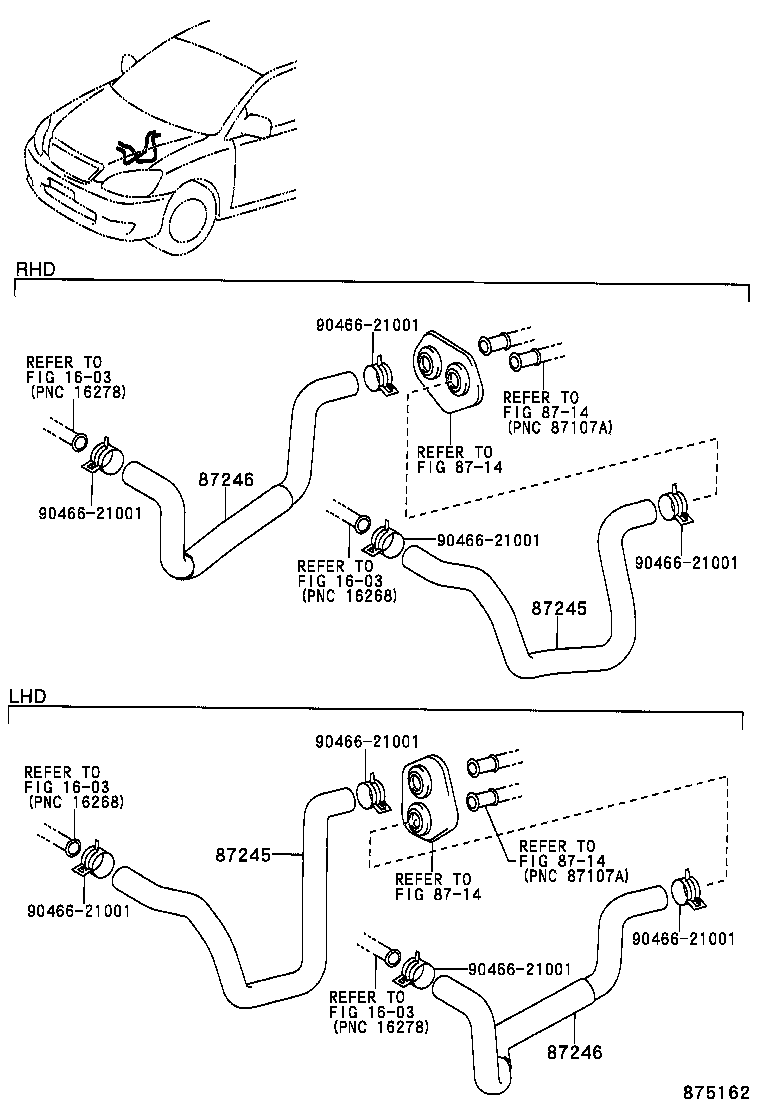

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 8714 8714 8714 8714 87245 87245 87246 87246 9046621001 9046621001 9046621001 9046621001 9046621001 9046621001 9046621001 9046621001
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-13030

CDE120..LHD

 1
87245-13050

CDE120..LHD

W(STOVE HEATER)

 1
87245 - HOSE, HEATER WATER, INLET
87245-13030

CDE120..LHD

 1
87245-13050

CDE120..LHD

W(STOVE HEATER)

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-13060

CDE120..LHD

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-13060

CDE120..LHD

 1
Common parts
90466-21001
Linked diagrams
1603
8714

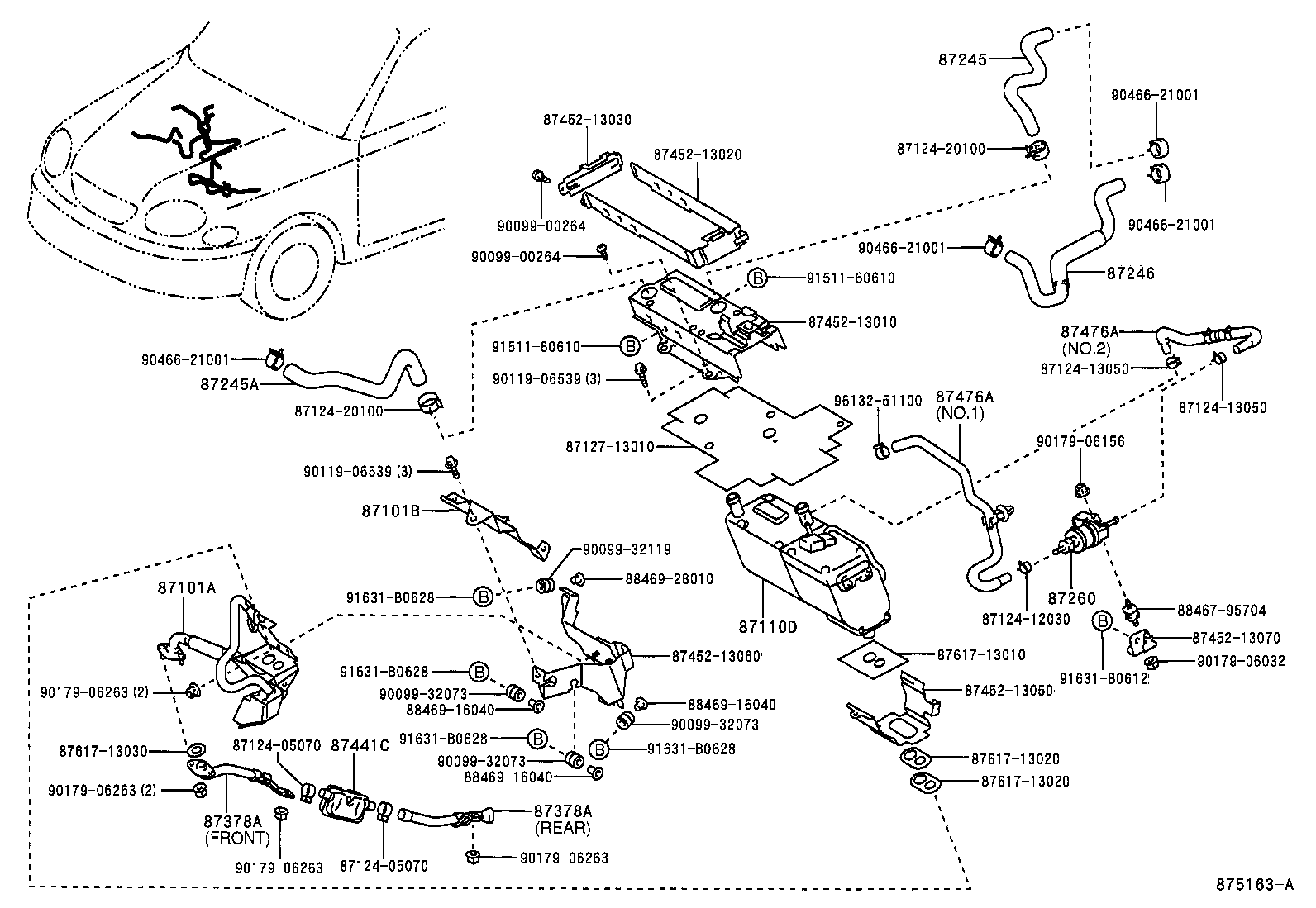

ILLUST NO. 1 OF 2(0110- )CDE120..LHD

Click highlighted areas on diagram

W(STOVE HEATER)

diagram 87101A 87101B 87110D 8712405070 8712405070 8712412030 8712413050 8712413050 8712420100 8712420100 8712713010 87245 87245A 87246 87260 87378A 87378A 87441C 8745213010 8745213020 8745213030 8745213050 8745213060 8745213070 87476A 87476A 8761713010 8761713020 8761713020 8761713030 8846795704 8846916040 8846916040 8846916040 8846928010 9009900264 9009900264 9009932073 9009932073 9009932073 9009932119 9011906539 9011906539 9017906032 9017906156 9017906263 9017906263 9017906263 9017906263 9046621001 9046621001 9046621001 9046621001 9151160610 9151160610 91631B0612 91631B0628 91631B0628 91631B0628 91631B0628 9613251100
Part # Description Qty Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-13020

CDE120..LHD

 1
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-13030

CDE120..LHD

 1
87110D - HEATER ASSY
87110-05030

CDE120..LHD

 1
87245 - HOSE, HEATER WATER, INLET
87245-13030

CDE120..LHD

 1
87245-13050

CDE120..LHD

W(STOVE HEATER)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-13070

CDE120..LHD

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-13060

CDE120..LHD

 1
87260 - PUMP ASSY, HEATER
87260-13010

CDE120..LHD

 1
87378A - PIPE, EXHAUST
87378-13010

CDE120..LHD

FRONT

 1
87378-13020

CDE120..LHD

REAR

 1
87378A - PIPE, EXHAUST
87378-13010

CDE120..LHD

FRONT

 1
87378-13020

CDE120..LHD

REAR

 1
87441C - MUFFLER
87441-05010

CDE120..LHD

 1
87476A - HOSE, HEATER FUEL, NO.1
87476-13010

CDE120..LHD

NO.1

 1
87476-13020

CDE120..LHD

NO.2

 1
87476A - HOSE, HEATER FUEL, NO.1
87476-13010

CDE120..LHD

NO.1

 1
87476-13020

CDE120..LHD

NO.2

 1
Common parts
87124-05070
87124-12030
87124-13050
87124-20100
87127-13010
87452-13010
87452-13020
87452-13030
87452-13050
87452-13060
87452-13070
87617-13010
87617-13020
87617-13030
88467-95704
88469-16040
88469-28010
90099-00264
90099-32073
90099-32119
90119-06539
90179-06032
90179-06156
90179-06263
90466-21001
91511-60610
91631-B0612
91631-B0628
96132-51100

ILLUST NO. 2 OF 2(0110- )CDE120..LHD

Click highlighted areas on diagram

W(STOVE HEATER)

diagram 87110D 87114E 87131A 87131C 87131D 87343A 87344D 87351 87363 87392 87611 87611 88326E 8835205010 8835205010 8835205030 88626E
Part # Description Qty Price
87110D - HEATER ASSY
87110-05030

CDE120..LHD

 1
87114E - COVER, HEATER, NO.1
87114-05050

CDE120..LHD

 1
87131A - HOUSING, HEATER BLOWER
87131-05040

CDE120..LHD

 1
87131C - HOUSING, HEATER BLOWER, NO.2
87131-05050

CDE120..LHD

 1
87131D - HOUSING, HEATER BLOWER, NO.3
87131-05060

CDE120..LHD

 1
87343A - PLUG, COMBUSTION HEATER GLOW
87343-05010

CDE120..LHD

 1
87344D - WIRING, HEATER
87344-05010

CDE120..LHD

 1
87351 - CHAMBER, FUEL REGULATOR BODY
87351-05010

CDE120..LHD

 1
87363 - GASKET, FUEL REGULATOR COVER
87363-05010

CDE120..LHD

 1
87392 - HOUSING, MOTOR
87392-05020

CDE120..LHD

 1
87611 - CASE, HEAT EXCHANGER
87611-05010

CDE120..LHD

NO.1

 1
87611-05020

CDE120..LHD

NO.2

 1
87611 - CASE, HEAT EXCHANGER
87611-05010

CDE120..LHD

NO.1

 1
87611-05020

CDE120..LHD

NO.2

 1
88326E - PLATE, COVER
88326-05040

CDE120..LHD

 1
88626E - SENSOR, WATER TEMPERATURE
88626-05020

CDE120..LHD

 1
Common parts
88352-05010
88352-05030
