Toyota Corolla verso CDE120 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
COROLLA VERSO
CDE120L-FWMDYW (2001)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0109- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

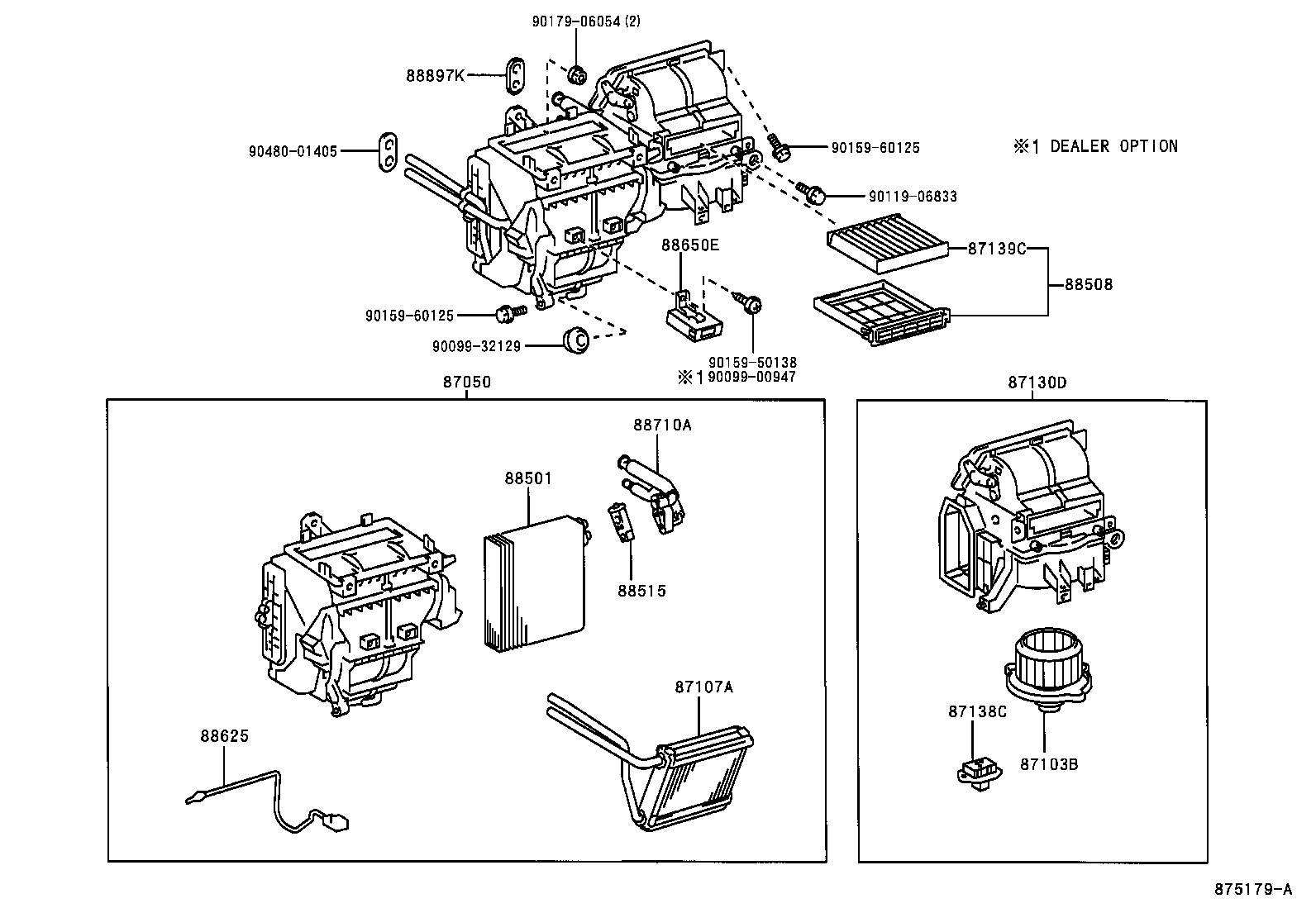

ILLUST NO. 1 OF 2(0110- )LHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13070	CDE120..LHD W/O(COOLER)	10/2001 - 01/2004	1
87050-13100	CDE120,ZZE12#..LHD..TERRA COLD SPEC & W(COOLER)	10/2001 - 01/2004	1
87050-13110	CDE120,ZZE12#..LHD COLD SPEC & W/O(COOLER)	10/2001 - 01/2004	1
87050-13060	CDE120..LHD..TERRA W(COOLER)	10/2001 - 01/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12070	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-13020	CDE120..LHD W(PTC HEATER)	10/2001 - 01/2004	1
87107-12560	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
87130D - BLOWER ASSY
87130-12460	CDE120,ZZE12#..LHD MANUAL AIR CONDITIONER	10/2001 - 01/2004	1
87138C - RESISTOR, BLOWER
87138-20360	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
87139C - FILTER, CLEAN AIR
88568-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12450	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
88515 - VALVE, COOLER EXPANSION
88515-27020	CDE120,ZZE12#	02/2003 - 08/2003	1
88515-28160	CDE120,ZZE12#	08/2003 - 01/2004	1
88515-48040	CDE120,ZZE12#	09/2001 - 02/2003	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	CDE120,ZZE12#	09/2001 - 01/2004	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E410	CDE120	10/2001 - 01/2004	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12550	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CDE120,ZZE12#	09/2001 - 01/2004	1
Common parts
90099-00947
90099-32129
90119-06833
90159-50138
90159-60125
90179-06054
90480-01405

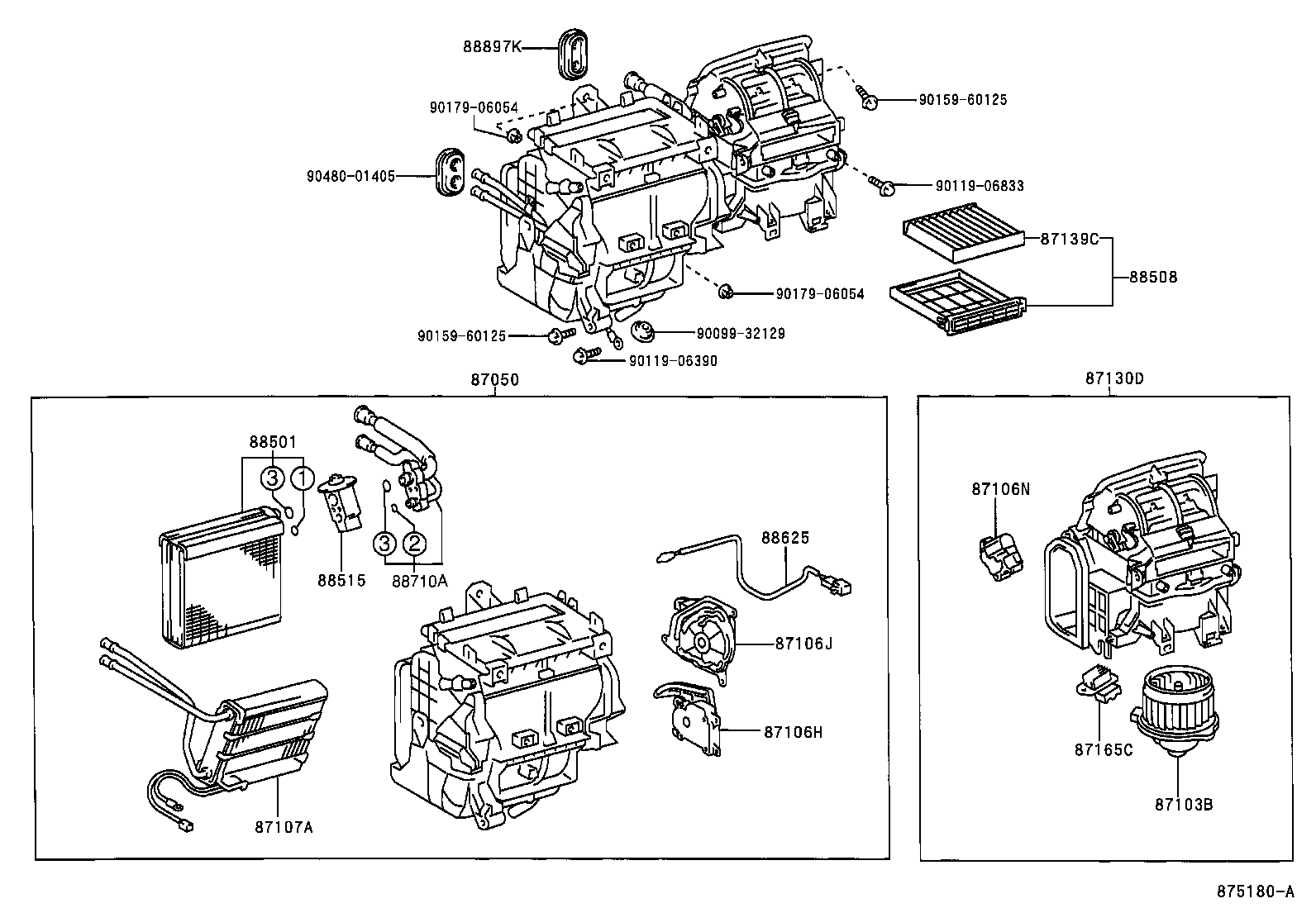

ILLUST NO. 1 OF 2(0110- )LHD

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13070	CDE120..LHD W/O(COOLER)	10/2001 - 01/2004	1
87050-13100	CDE120,ZZE12#..LHD..TERRA COLD SPEC & W(COOLER)	10/2001 - 01/2004	1
87050-13110	CDE120,ZZE12#..LHD COLD SPEC & W/O(COOLER)	10/2001 - 01/2004	1
87050-13060	CDE120..LHD..TERRA W(COOLER)	10/2001 - 01/2004	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12070	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-13020	CDE120..LHD W(PTC HEATER)	10/2001 - 01/2004	1
87107-12560	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
87130D - BLOWER ASSY
87130-12460	CDE120,ZZE12#..LHD MANUAL AIR CONDITIONER	10/2001 - 01/2004	1
87139C - FILTER, CLEAN AIR
88568-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12450	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
88515 - VALVE, COOLER EXPANSION
88515-27020	CDE120,ZZE12#	02/2003 - 08/2003	1
88515-28160	CDE120,ZZE12#	08/2003 - 01/2004	1
88515-48040	CDE120,ZZE12#	09/2001 - 02/2003	1
88625 - THERMISTOR, COOLER, NO.1
88625-60140	CDE120,ZZE12#	09/2001 - 01/2004	1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434	CDE120,ZZE12#	09/2001 - 01/2004	1
Common parts
90099-32129
90119-06390
90119-06833
90159-60125
90179-06054
90480-01405

CDE120L-FWMDYW (2001)

ILLUST NO. 2 OF 2(0109- )

ILLUST NO. 1 OF 2(0110- )LHD

ILLUST NO. 1 OF 2(0110- )LHD
