CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

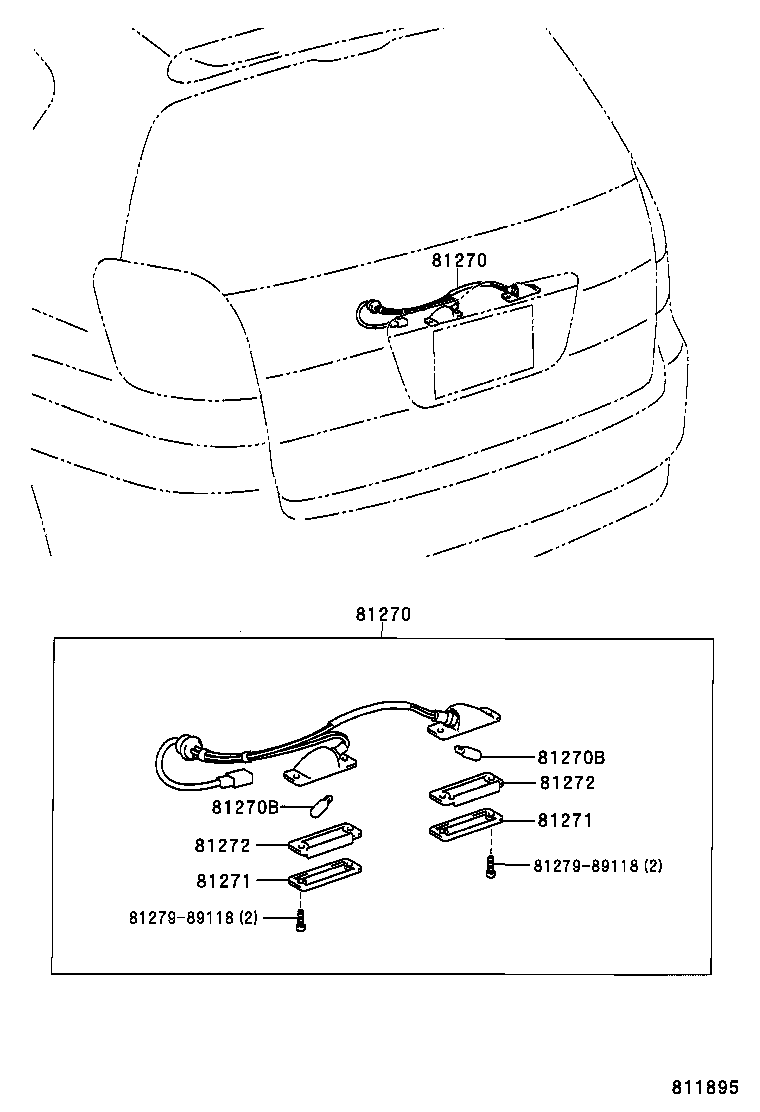

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 8127989118 8127989118
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-13330

CDE120,ZZE12#

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-13330

CDE120,ZZE12#

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CDE120,ZZE12#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

CDE120,ZZE12#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-21110

CDE120,ZZE12#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-21110

CDE120,ZZE12#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95J07

CDE120,ZZE12#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-95J07

CDE120,ZZE12#

 2
Common parts
81279-89118
