CDE120L-FWMDYW (2001)
Toyota Corolla Verso

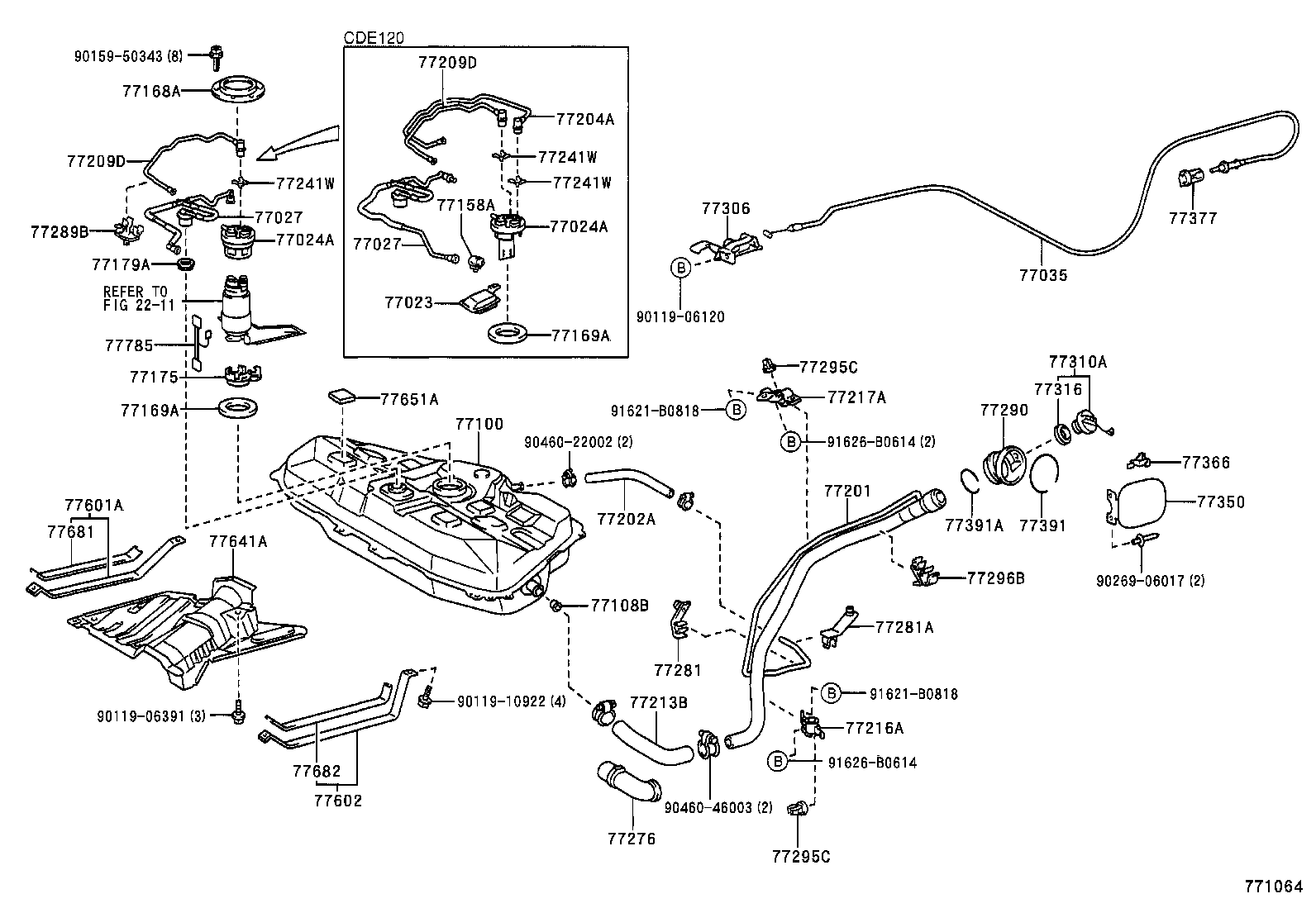

ILLUST NO. 1 OF 2(0109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CDE120 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12020 |
CDE120 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12020 |
CDE120 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12050 |
CDE120 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12050 |
CDE120 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-13120 |
CDE120,ZZE12#..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-1A010 |
CDE120,ZZE12# |
1 | ||
| 77001-12870 |
CDE120 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12040 |
CDE120,ZZE12# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-12030 |
CDE120 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
CDE120,ZZE12# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
CDE120,ZZE12# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
CDE120,ZZE12# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
CDE120,ZZE12# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12580 |
CDE120 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
CDE120,ZZE12# L=340 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-12100 |
CDE120 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
CDE120,ZZE12# |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
CDE120,ZZE12# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
CDE120,ZZE12# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
CDE120,ZZE12# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
CDE120,ZZE12# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
CDE120 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
CDE120 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
CDE120 |
2 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
CDE120,ZZE12# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-32040 |
CDE120,ZZE12# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
CDE120,ZZE12# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
CDE120,ZZE12# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-13040 |
CDE120,ZZE12# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
CDE120,ZZE12# |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
CDE120,ZZE12# |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12030 |
CDE120,ZZE12# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13030 |
CDE120,ZZE12#..LHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-60010 |
CDE120 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CDE120,ZZE12# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13090 |
CDE120,ZZE12# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
CDE120,ZZE12# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
CDE120,ZZE12# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
CDE120,ZZE12# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CDE120,ZZE12# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12250 |
CDE120,ZZE12# |
1 | ||
| 77602 - CASE SUB-ASSY, FUEL TANK, UPPER | ||||
| 77602-12180 |
CDE120,ZZE12# |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12170 |
CDE120,ZZE12# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CDE120,ZZE12# |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
CDE120,ZZE12# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
CDE120,ZZE12# |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90119-06391 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 91621-B0818 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 2211 | ||||

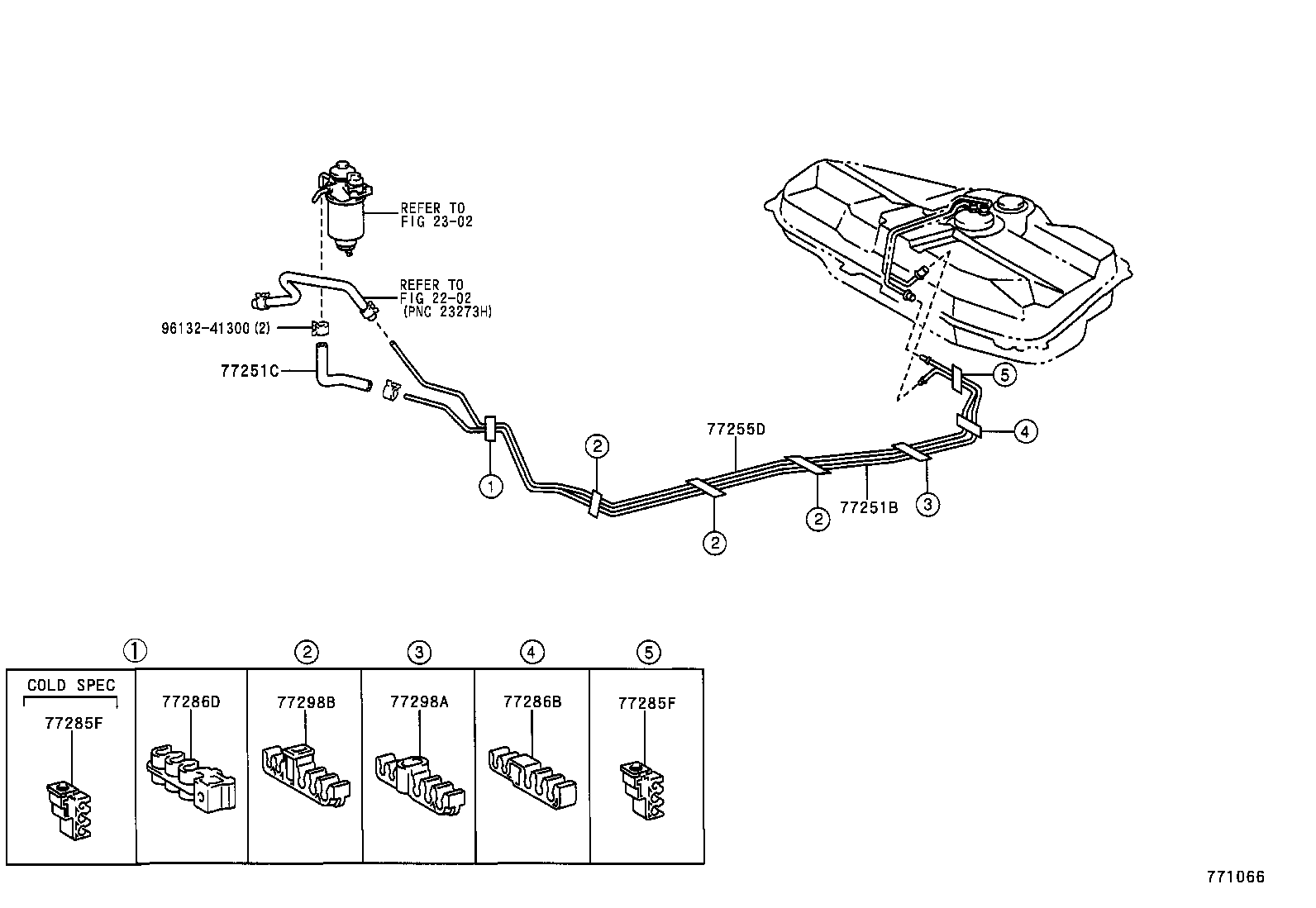

ILLUST NO. 2 OF 2(0110- )CDE120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-13180 |
CDE120 |
1 | ||
| 77251-13190 |
CDE120..LHD COLD SPEC |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-12270 |
CDE120 |
1 | ||
| 77259-12260 |
CDE120..LHD COLD SPEC |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-13150 |
CDE120 |
1 | ||
| 77255-13160 |
CDE120..LHD COLD SPEC |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-12060 |
CDE120..LHD COLD SPEC |
2 | ||
| 77286-12060 |
CDE120,ZZE12# |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-12060 |
CDE120..LHD COLD SPEC |
2 | ||
| 77286-12060 |
CDE120,ZZE12# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77298-12060 |
CDE120,ZZE12# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77289-20060 |
CDE120,ZZE12# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12100 |
CDE120,ZZE12# |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-20080 |
CDE120,ZZE12# |
3 | ||
| Common parts | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
