Toyota Corolla verso CDE120 SEAT BELT & CHILD RESTRAINT SEAT

Manufacturers Home
Toyota
EU
COROLLA VERSO
CDE120L-FWMDYW (2001)
7104 - SEAT BELT & CHILD RESTRAINT SEAT

CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0109- )

Click highlighted areas on diagram

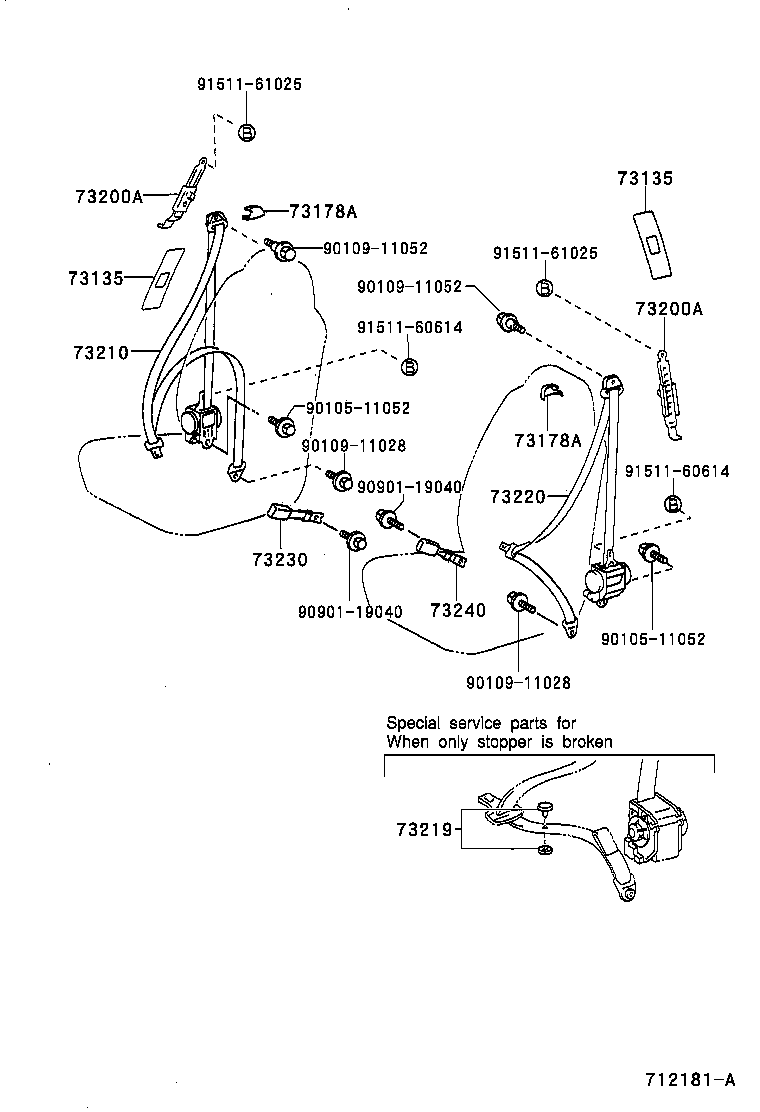

FRONT SEAT

Part #	Description	Period	Qty
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B9	CDE120,ZZE12# LT.GRAY,TRIM1#	09/2001 - 01/2004	2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-12030B9	CDE120,ZZE12# LT.GRAY,TRIM1#	09/2001 - 01/2004	2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3	CDE120,ZZE12# LT.GRAY,TRIM1#	09/2001 - 01/2004	2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B3	CDE120,ZZE12# LT.GRAY,TRIM1#	09/2001 - 01/2004	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52040B0	CDE120,ZZE12# LT.GRAY,TRIM1#	02/2002 - 01/2004	2
73200-52010B0	CDE120,ZZE12# LT.GRAY,TRIM1#	09/2001 - 02/2002	2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52040B0	CDE120,ZZE12# LT.GRAY,TRIM1#	02/2002 - 01/2004	2
73200-52010B0	CDE120,ZZE12# LT.GRAY,TRIM1#	09/2001 - 02/2002	2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-13230C0	CDE120,ZZE12#..LHD BLACK,TRIM1#	10/2001 - 04/2003	1
73210-13240C0	CDE120,ZZE12#..LHD BLACK,TRIM1#	04/2003 - 01/2004	1
73219 - STOPPER, TONGUE PLATE
73219-33010	CDE120,ZZE12#	10/2001 - 01/2004	1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-13220C0	CDE120,ZZE12#..LHD BLACK,TRIM1#	10/2001 - 04/2003	1
73220-13230C0	CDE120,ZZE12#..LHD BLACK,TRIM1#	04/2003 - 01/2004	1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52280B0	CDE120,ZZE12# DK.GRAY,TRIM1#	04/2003 - 01/2004	1
73230-52080B2	CDE120,ZZE12# DK.GRAY,TRIM1#	09/2001 - 04/2003	1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-52280B0	CDE120,ZZE12# DK.GRAY,TRIM1#	04/2003 - 01/2004	1
73230-52080B2	CDE120,ZZE12# DK.GRAY,TRIM1#	09/2001 - 04/2003	1
Common parts
90105-11052
90109-11028
90109-11052
90901-19040
91511-60614
91511-61025

(0109- )

Click highlighted areas on diagram

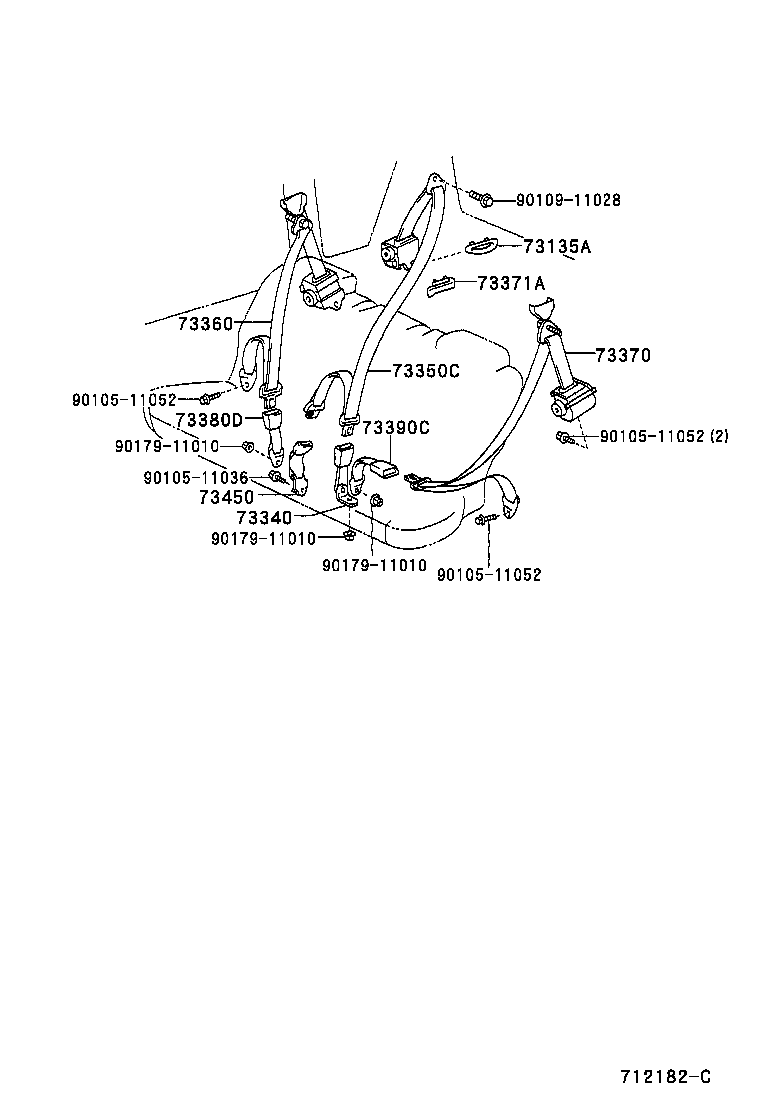

REAR SEAT

Part #	Description	Period	Qty
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-13040B1	CDE120,ZZE12# LT. GRAY,TRIM1#	09/2001 - 01/2004	1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73460-13030C0	CDE120,ZZE12# BLACK,TRIM1#	09/2001 - 01/2004	1
73460-13040C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 01/2004	1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-13040C0	CDE120,ZZE12# BLACK,TRIM1#	09/2001 - 01/2004	1
73350-13060C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 01/2004	1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-13350C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	04/2003 - 01/2004	1
73360-13320C0	CDE120,ZZE12# BLACK,TRIM1#	09/2001 - 01/2004	1
73360-13340C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 04/2003	1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-13280C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 04/2003	1
73370-13290C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	04/2003 - 01/2004	1
73370-13260C0	CDE120,ZZE12# BLACK,TRIM1#	09/2001 - 01/2004	1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-13060B1	CDE120,ZZE12# LT. GRAY,TRIM1#	09/2001 - 01/2004	1
73380D - BELT ASSY, REAR SEAT, INNER
73380-13130C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 01/2004	1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73380-13120C0	CDE120,ZZE12# BLACK,TRIM1#	09/2001 - 01/2004	1
73380-13130C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 01/2004	1
73450 - BUCKLE ASSY, REAR CENTER SEAT BELT
73450-13020C0	CDE120,ZZE12# W(JUNIOR REAR SEAT),BLACK,TRIM1#	09/2001 - 01/2004	1
73450-13010C0	CDE120,ZZE12# BLACK,TRIM1#	09/2001 - 01/2004	1
Common parts
90105-11036
90105-11052
90109-11028
90179-11010

CDE120L-FWMDYW (2001)

(0109- )

(0109- )
