CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

Click highlighted areas on diagram

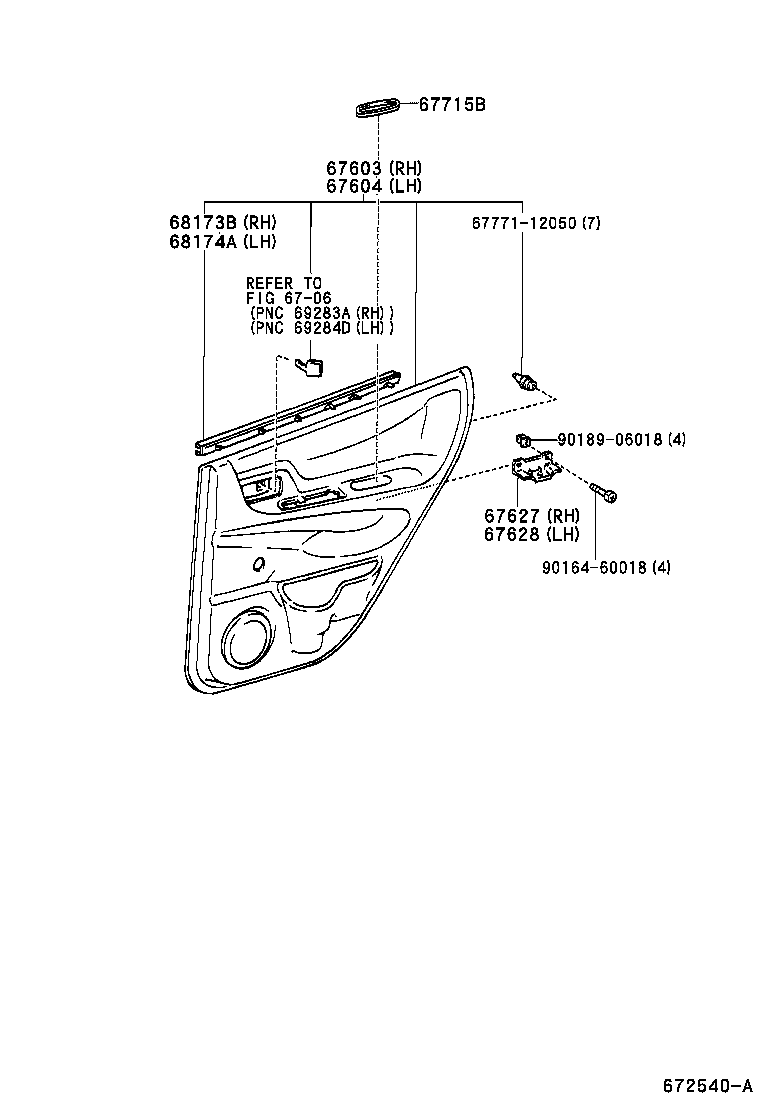

diagram 6706 67603 67604 67627 67628 67715B 6777112050 68173B 68174A 9016460018 9018906018
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-13780B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-13780B0

CDE120,ZZE12#..TERRA

DK.GRAY,TRIM1#

 1
67627 - BRACKET, REAR DOOR TRIM, RH
67625-52010

CDE120,ZZE12#

 1
67628 - BRACKET, REAR DOOR TRIM, LH
67625-52010

CDE120,ZZE12#

 1
67715B - PAD, REAR DOOR TRIM
67715-13010B0

CDE120,ZZE12#

DK.GRAY,TRIM1#

 2
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-13030

CDE120,ZZE12#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-13030

CDE120,ZZE12#

 1
Common parts
67771-12050
90164-60018
90189-06018
Linked diagrams
6706

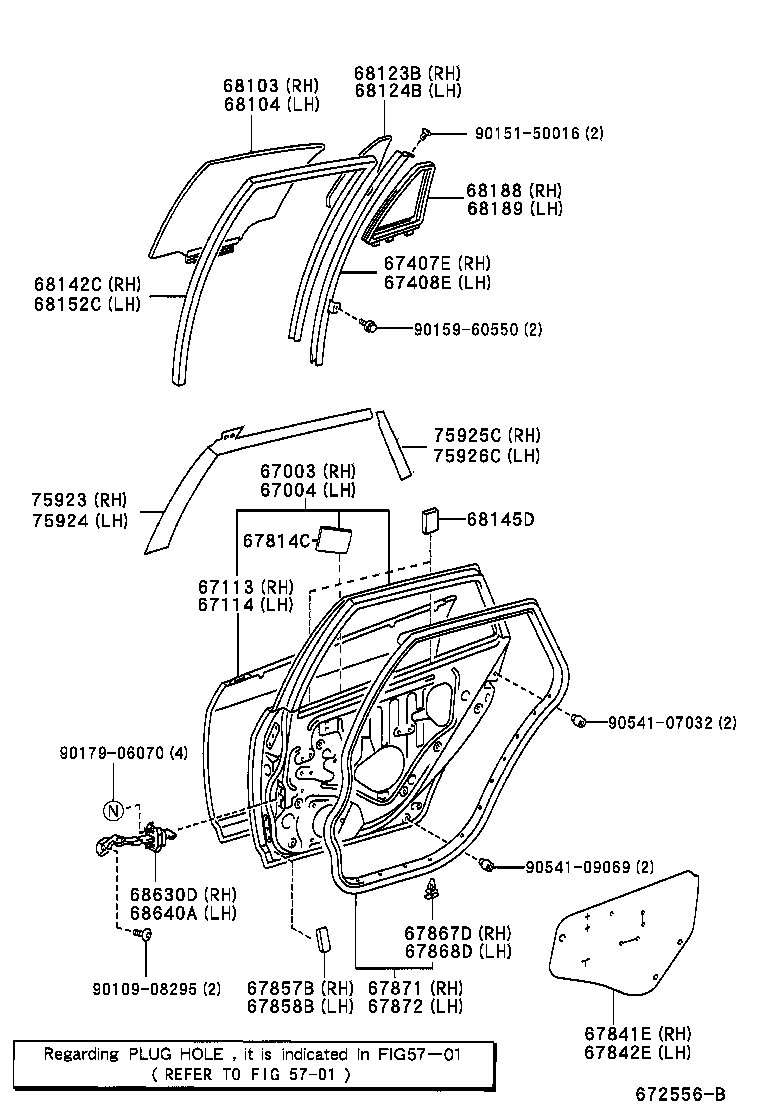

ILLUST NO. 2 OF 2(0109- )

Click highlighted areas on diagram

diagram 5701 67003 67004 67113 67114 67407E 67408E 67814C 67841E 67842E 67857B 67858B 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68145D 68152C 68188 68189 68630D 68640A 75923 75924 75925C 75926C 9010908295 9015150016 9015960550 9017906070 9054107032 9054109069
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-13310

CDE120,ZZE12#

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-13310

CDE120,ZZE12#

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-13050

CDE120,ZZE12#

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-13050

CDE120,ZZE12#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-13080

CDE120,ZZE12#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-13080

CDE120,ZZE12#

 1
67814C - PACKING, DOOR PROTECTOR
67817-47010

CDE120,ZZE12#

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-13070

CDE120,ZZE12#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-13030

CDE120,ZZE12#

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-12090

CDE120,ZZE12#

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-12080

CDE120,ZZE12#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

CDE120,ZZE12#

 15
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

CDE120,ZZE12#

 15
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-13160

CDE120,ZZE12#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-13150

CDE120,ZZE12#

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-13300

CDE120,ZZE12#

*TT,T=3.1,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-13290

CDE120,ZZE12#

*TT,T=3.1,GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-13260

CDE120,ZZE12#

*TT,T=3.1,GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-13250

CDE120,ZZE12#

*TT,T=3.1,GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-13130

CDE120,ZZE12#

 1
68145D - CUSHION, REAR DOOR WINDOW
69759-12110

CDE120,ZZE12#

 4
68152C - RUN, REAR DOOR GLASS, LH
68152-13090

CDE120,ZZE12#

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-13100

CDE120,ZZE12#

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-13100

CDE120,ZZE12#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-12090

CDE120,ZZE12#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-12050

CDE120,ZZE12#

 1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-13030

CDE120,ZZE12#

 1
75923-13032

CDE120,ZZE12#

 1
75923-13031

CDE120,ZZE12#

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-13032

CDE120,ZZE12#

 1
75924-13031

CDE120,ZZE12#

 1
75924-13030

CDE120,ZZE12#

 1
75925C - TAPE, BLACK OUT, NO.3 RH
75925-13021

CDE120,ZZE12#

 1
75925-13020

CDE120,ZZE12#

 1
75926C - TAPE, BLACK OUT, NO.3 LH
75926-13021

CDE120,ZZE12#

 1
75926-13020

CDE120,ZZE12#

 1
Common parts
90109-08295
90151-50016
90159-60550
90179-06070
90541-07032
90541-09069
Linked diagrams
5701
