CDE120L-FWMDYW (2001)
Toyota Corolla Verso

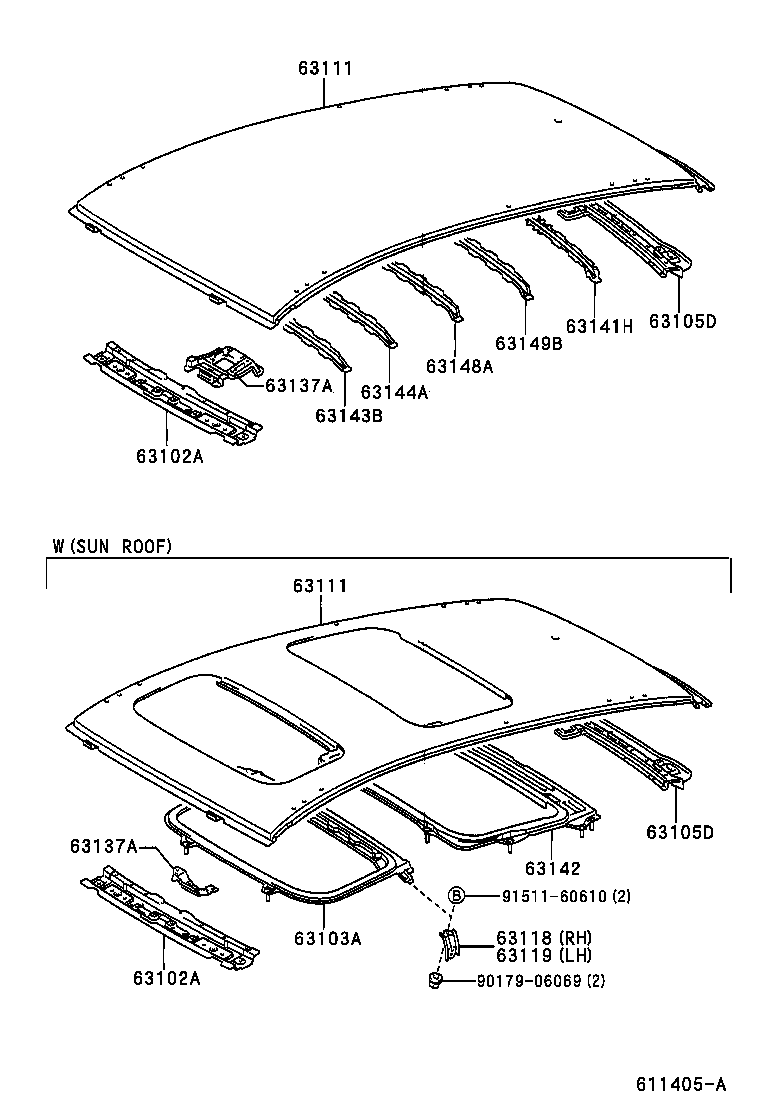

ILLUST NO. 1 OF 3(0109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-13060 |
CDE120,ZZE12# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-13060 |
CDE120,ZZE12# |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-13020 |
CDE120,ZZE12# |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-13180 |
CDE120,ZZE12# |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-13180 |
CDE120,ZZE12# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13370 |
CDE120,ZZE12# W(SUN ROOF) |
1 | ||
| 63111-13330 |
CDE120,ZZE12# W(ROOF RAIL & BACK MONITOR) |
1 | ||
| 63111-13350 |
CDE120,ZZE12# W(BACK MONITOR) |
1 | ||
| 63111-13340 |
CDE120,ZZE12# W(ROOF RAIL & BACK MONITOR & SUN ROOF) |
1 | ||
| 63111-13390 |
CDE120,ZZE12# W(SUN ROOF & ROOF RAIL) |
1 | ||
| 63111-13380 |
CDE120,ZZE12# W(ROOF RAIL) |
1 | ||
| 63111-13360 |
CDE120,ZZE12# |
1 | ||
| 63111-13320 |
CDE120,ZZE12# W(SUN ROOF & BACK MONITOR) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13370 |
CDE120,ZZE12# W(SUN ROOF) |
1 | ||
| 63111-13330 |
CDE120,ZZE12# W(ROOF RAIL & BACK MONITOR) |
1 | ||
| 63111-13350 |
CDE120,ZZE12# W(BACK MONITOR) |
1 | ||
| 63111-13340 |
CDE120,ZZE12# W(ROOF RAIL & BACK MONITOR & SUN ROOF) |
1 | ||
| 63111-13390 |
CDE120,ZZE12# W(SUN ROOF & ROOF RAIL) |
1 | ||
| 63111-13380 |
CDE120,ZZE12# W(ROOF RAIL) |
1 | ||
| 63111-13360 |
CDE120,ZZE12# |
1 | ||
| 63111-13320 |
CDE120,ZZE12# W(SUN ROOF & BACK MONITOR) |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-13020 |
CDE120,ZZE12# |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-13020 |
CDE120,ZZE12# |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-13050 |
CDE120,ZZE12# |
1 | ||
| 63137-13060 |
CDE120,ZZE12# W(SUN ROOF) |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-13050 |
CDE120,ZZE12# |
1 | ||
| 63137-13060 |
CDE120,ZZE12# W(SUN ROOF) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-13100 |
CDE120,ZZE12# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-13090 |
CDE120,ZZE12# |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-13060 |
CDE120,ZZE12# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-13040 |
CDE120,ZZE12# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-13040 |
CDE120,ZZE12# |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-13030 |
CDE120,ZZE12# |
1 | ||
| Common parts | ||||
| 90179-06069 | ||||
| 91511-60610 | ||||

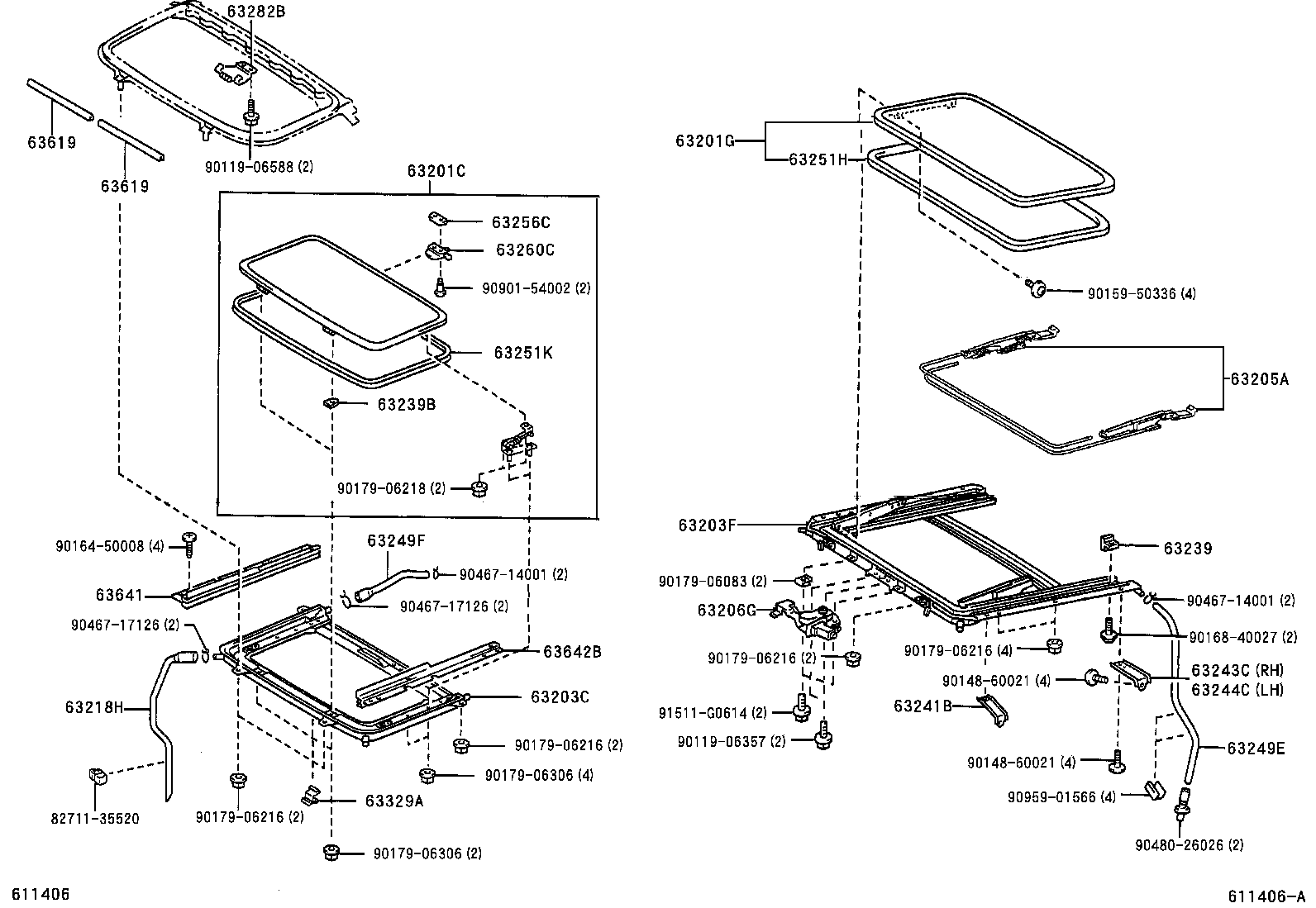

ILLUST NO. 2 OF 3(0109- )
W(SUN ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-13031 |
CDE120,ZZE12# *TT,T=4.0,GRAY |
1 | ||
| 63201-13030 |
CDE120,ZZE12# *TT,T=4.0,GRAY |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-13040 |
CDE120,ZZE12# *TT,T=4.0,GRAY |
1 | ||
| 63201-13041 |
CDE120,ZZE12# *TT,T=4.0,GRAY |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-44020 |
CDE120,ZZE12# |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-13040 |
CDE120,ZZE12# |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-12150 |
CDE120,ZZE12# |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-13040 |
CDE120,ZZE12# |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13070 |
CDE120,ZZE12# |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
CDE120,ZZE12# |
2 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
CDE120,ZZE12# |
1 | ||
| 63241B - BRACKET, SLIDING ROOF HOUSING, NO.1 | ||||
| 63241-13020 |
CDE120,ZZE12# |
2 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-52020 |
CDE120,ZZE12# |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-52020 |
CDE120,ZZE12# |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13080 |
CDE120,ZZE12# |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-13090 |
CDE120,ZZE12# |
2 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12160 |
CDE120,ZZE12# |
1 | ||
| 63251-12161 |
CDE120,ZZE12# |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-44010 |
CDE120,ZZE12# |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
CDE120,ZZE12# |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
CDE120,ZZE12# |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-44010 |
CDE120,ZZE12# |
1 | ||
| 63282-13010 |
CDE120,ZZE12# |
1 | ||
| 63329A - STOPPER, SUNSHADE LOCK | ||||
| 63329-44030 |
CDE120,ZZE12# |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-44010 |
CDE120,ZZE12# |
2 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-44010 |
CDE120,ZZE12# |
2 | ||
| 63641 - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63641-13010 |
CDE120,ZZE12# |
1 | ||
| 63642B - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63642-13010 |
CDE120,ZZE12# |
1 | ||
| Common parts | ||||
| 82711-35520 | ||||
| 90119-06357 | ||||
| 90119-06588 | ||||
| 90148-60021 | ||||
| 90159-50336 | ||||
| 90164-50008 | ||||
| 90168-40027 | ||||
| 90179-06083 | ||||
| 90179-06216 | ||||
| 90179-06218 | ||||
| 90179-06306 | ||||
| 90467-14001 | ||||
| 90467-17126 | ||||
| 90480-26026 | ||||
| 90901-54002 | ||||
| 90959-01566 | ||||
| 91511-G0614 | ||||

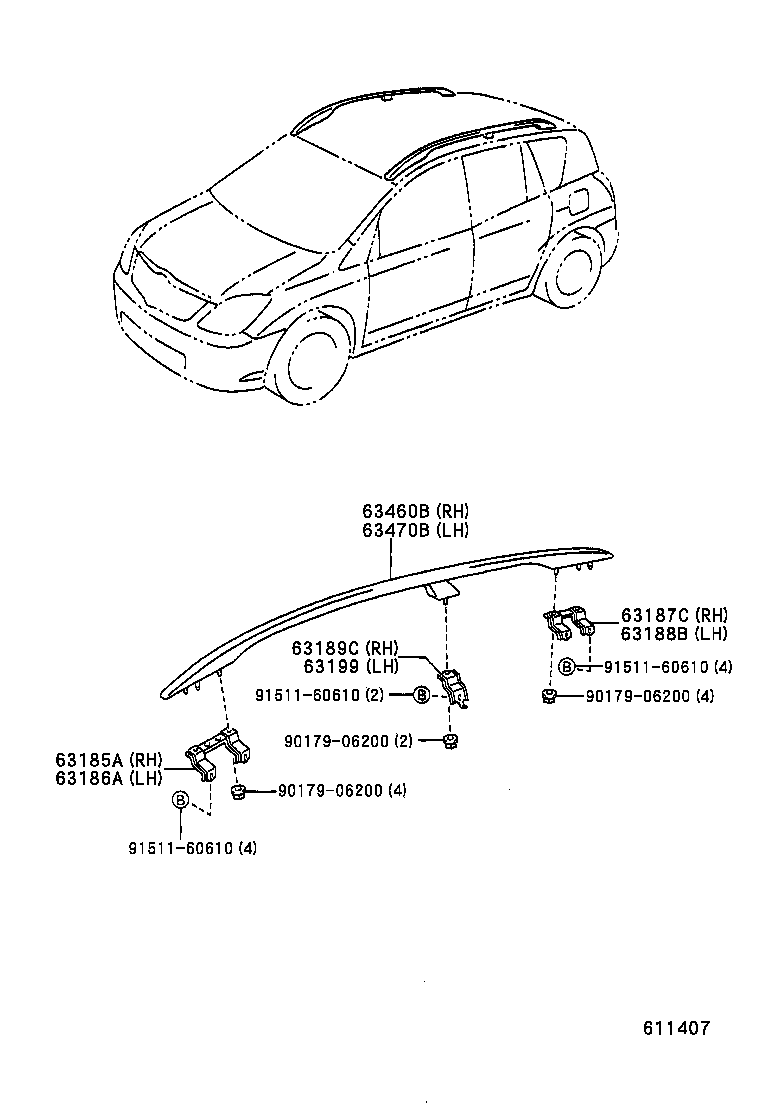

ILLUST NO. 3 OF 3(0109- )
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13080 |
CDE120,ZZE12# |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13090 |
CDE120,ZZE12# |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-13030 |
CDE120,ZZE12# |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63187-13030 |
CDE120,ZZE12# |
1 | ||
| 63189C - BRACKET, ROOF RACK, CENTER RH | ||||
| 63189-13070 |
CDE120,ZZE12# |
1 | ||
| 63199 - BRACKET, ROOF RACK, CENTER LH | ||||
| 63189-13070 |
CDE120,ZZE12# |
1 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-13130B0 |
CDE120,ZZE12# SILVER ME.GR.,1D9 |
1 | ||
| 63460-13130B1 |
CDE120,ZZE12#..TERRA GRAY,TRIM1#&040 ,1D9 ,585 |
1 | ||
| 63460-13130B1 |
CDE120,ZZE12#..TERRA GRAY,TRIM1#&040 ,1D9 ,1E7 |
1 | ||
| 63460-13130D0 |
CDE120,ZZE12# RED M.M.,3N8 |
1 | ||
| 63460-13130A0 |
CDE120,ZZE12# SUPER WHITE 2,040 |
1 | ||
| 63460-13130C1 |
CDE120,ZZE12#..TERRA BLACK,TRIM1#&205 ,3N8 ,3P2 ,6R4 ,8N6 ,8P4 ,8Q1 |
1 | ||
| 63460-13130C1 |
CDE120,ZZE12#..TERRA BLACK,TRIM1#&209 ,3N8 ,3P2 ,6R4 ,761 ,8N6 ,8P4 |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-13130A0 |
CDE120,ZZE12# SUPER WHITE 2,040 |
1 | ||
| 63470-13130B0 |
CDE120,ZZE12# SILVER ME.GR.,1D9 |
1 | ||
| 63470-13130C1 |
CDE120,ZZE12#..TERRA BLACK,TRIM1#&209 ,3N8 ,3P2 ,6R4 ,761 ,8N6 ,8P4 |
1 | ||
| 63470-13130B1 |
CDE120,ZZE12#..TERRA GRAY,TRIM1#&040 ,1D9 ,585 |
1 | ||
| 63470-13130D0 |
CDE120,ZZE12# RED M.M.,3N8 |
1 | ||
| 63470-13130C1 |
CDE120,ZZE12#..TERRA BLACK,TRIM1#&205 ,3N8 ,3P2 ,6R4 ,8N6 ,8P4 ,8Q1 |
1 | ||
| 63470-13130B1 |
CDE120,ZZE12#..TERRA GRAY,TRIM1#&040 ,1D9 ,1E7 |
1 | ||
| Common parts | ||||
| 90179-06200 | ||||
| 91511-60610 | ||||
