CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

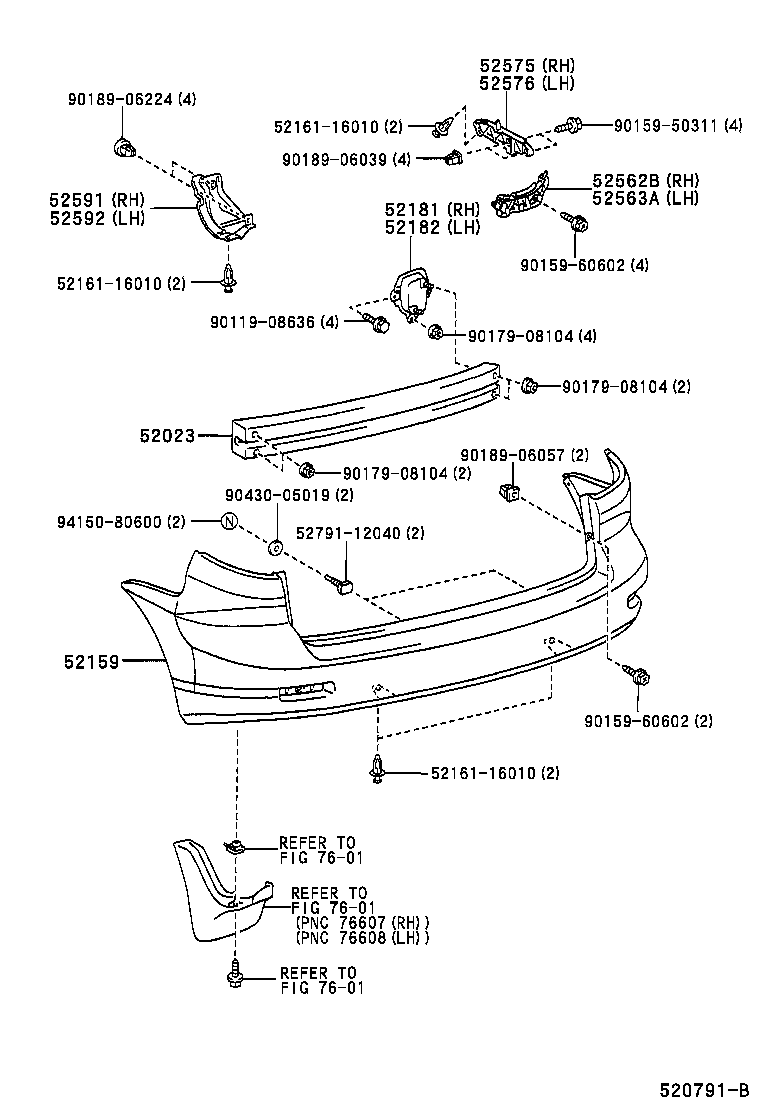

Click highlighted areas on diagram

diagram 52023 52159 5216116010 5216116010 5216116010 52181 52182 52562B 52563A 52575 52576 52591 52592 5279112040 7601 7601 7601 9011908636 9015950311 9015960602 9015960602 9017908104 9017908104 9017908104 9018906039 9018906057 9018906224 9043005019 9415080600
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-13030

CDE120,ZZE12#

 1
52159 - COVER, REAR BUMPER
52159-13905

CDE120,ZZE12#

 1
52181 - ARM, REAR BUMPER, RH
58323-13020

CDE120,ZZE12#

 1
52182 - ARM, REAR BUMPER, LH
58324-13010

CDE120,ZZE12#

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13050

CDE120,ZZE12#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13050

CDE120,ZZE12#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13040

CDE120,ZZE12#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13040

CDE120,ZZE12#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-13060

CDE120,ZZE12#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-13060

CDE120,ZZE12#

 1
Common parts
52161-16010
52791-12040
90119-08636
90159-50311
90159-60602
90179-08104
90189-06039
90189-06057
90189-06224
90430-05019
94150-80600
Linked diagrams
7601
