CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

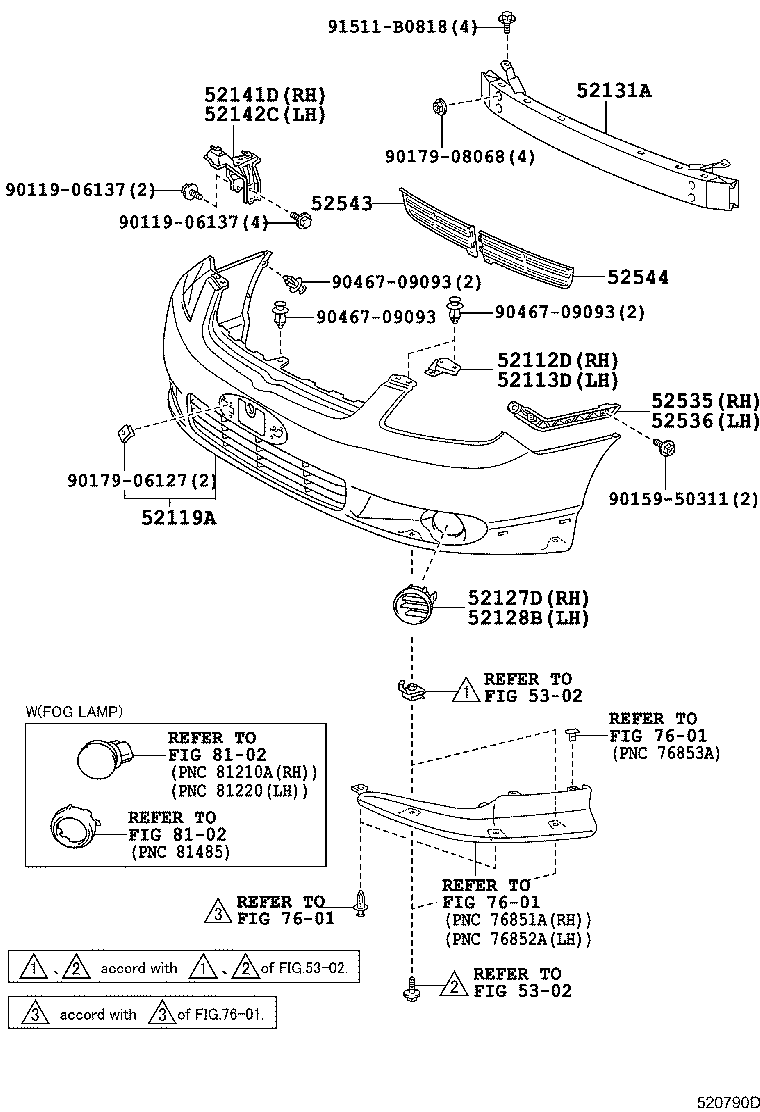

Click highlighted areas on diagram

diagram 52112D 52113D 52119A 52127D 52128B 52131A 52141D 52142C 52535 52536 52543 52544 5302 5302 7601 7601 7601 8102 8102 9011906137 9011906137 9015950311 9017906127 9017908068 9046709093 9046709093 9046709093 91511B0818
Part # Description Qty Price
52112D - EXTENSION, FRONT BUMPER, RH
52112-13040

CDE120,ZZE12#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-13040

CDE120,ZZE12#

 1
52119A - COVER, FRONT BUMPER
52119-13904

CDE120,ZZE12#

 1
52119-13905

CDE120,ZZE12#..LHD

W(HEADLAMP CLEANER)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-13060

CDE120,ZZE12#

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-13060

CDE120,ZZE12#

 1
52131A - REINFORCEMENT, FRONT BUMPER
52021-13020

CDE120,ZZE12#

 1
52141D - STAY, FRONT BUMPER, RH
52081-13011

CDE120,ZZE12#

 1
52081-13010

CDE120,ZZE12#

 1
52142C - STAY, FRONT BUMPER, LH
52082-13010

CDE120,ZZE12#

 1
52082-13011

CDE120,ZZE12#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-13030

CDE120,ZZE12#

 1
52535-13031

CDE120,ZZE12#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-13030

CDE120,ZZE12#

 1
52536-13031

CDE120,ZZE12#

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-13010

CDE120,ZZE12#

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-13010

CDE120,ZZE12#

 1
Common parts
90119-06137
90159-50311
90179-06127
90179-08068
90467-09093
91511-B0818
Linked diagrams
5302
7601
8102
