Toyota Corolla verso CDE120 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
44200 - LINK ASSY, POWER STEERING
44200-13030	CDE120,ZZE12#..LHD	10/2001 - 01/2004	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-13030	CDE120,ZZE12#..LHD	10/2001 - 09/2002	1
45046 - END SUB-ASSY, TIE ROD, RH
45046-49115	CDE120,ZZE12#	09/2001 - 01/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#	09/2001 - 01/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#	09/2001 - 01/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#	09/2001 - 01/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#	09/2001 - 01/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	CDE120,ZZE12#	09/2001 - 01/2004	1
45503 - END SUB-ASSY, STEERING RACK
45503-19255	CDE120,ZZE12#	09/2001 - 01/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-19255	CDE120,ZZE12#	09/2001 - 01/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	CDE120,ZZE12# OD=35.2	09/2001 - 01/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	CDE120,ZZE12# OD=35.2	09/2001 - 01/2004	2
45535 - BOOT, STEERING RACK, NO.1
45535-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	CDE120,ZZE12#	09/2001 - 01/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	CDE120,ZZE12#	09/2001 - 01/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016	CDE120,ZZE12#	09/2001 - 01/2004	1
45536 - BOOT, STEERING RACK, NO.2
45535-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-55016	CDE120,ZZE12#	09/2001 - 01/2004	1
Common parts
90119-12379
90170-14012
95381-03020

CDE120L-FWMDYW (2001)

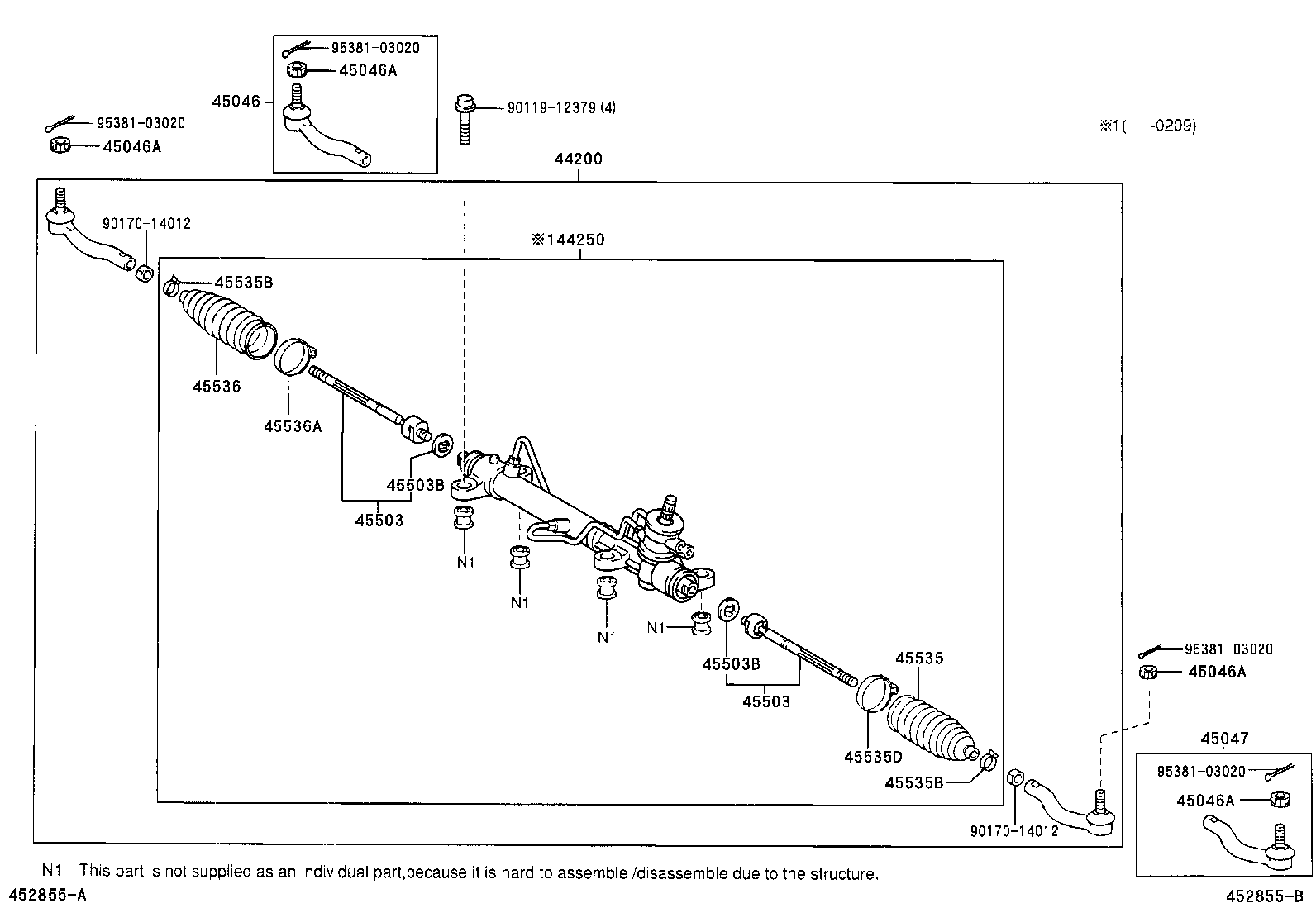

ILLUST NO. 1 OF 2(0110- )LHD

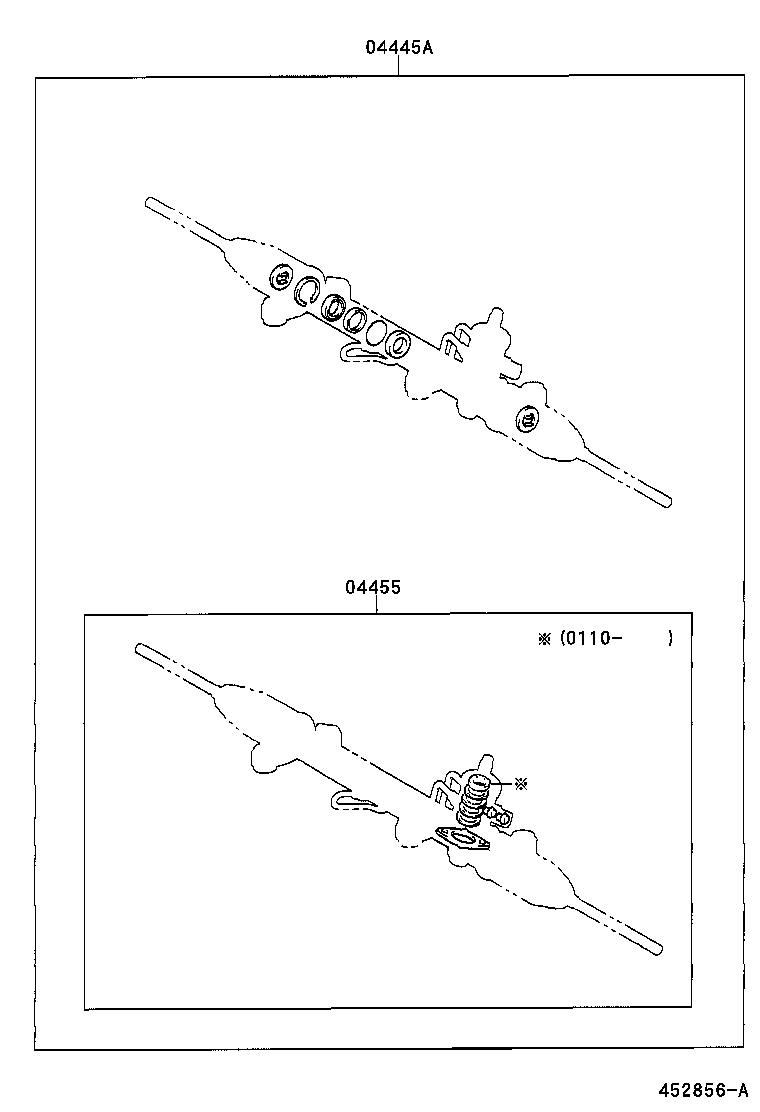

ILLUST NO. 2 OF 2(0110- )LHD

Part Price Details

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-13010	CDE120,ZZE12#	09/2001 - 01/2004	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-44010	CDE120,ZZE12#	10/2001 - 01/2004	1
