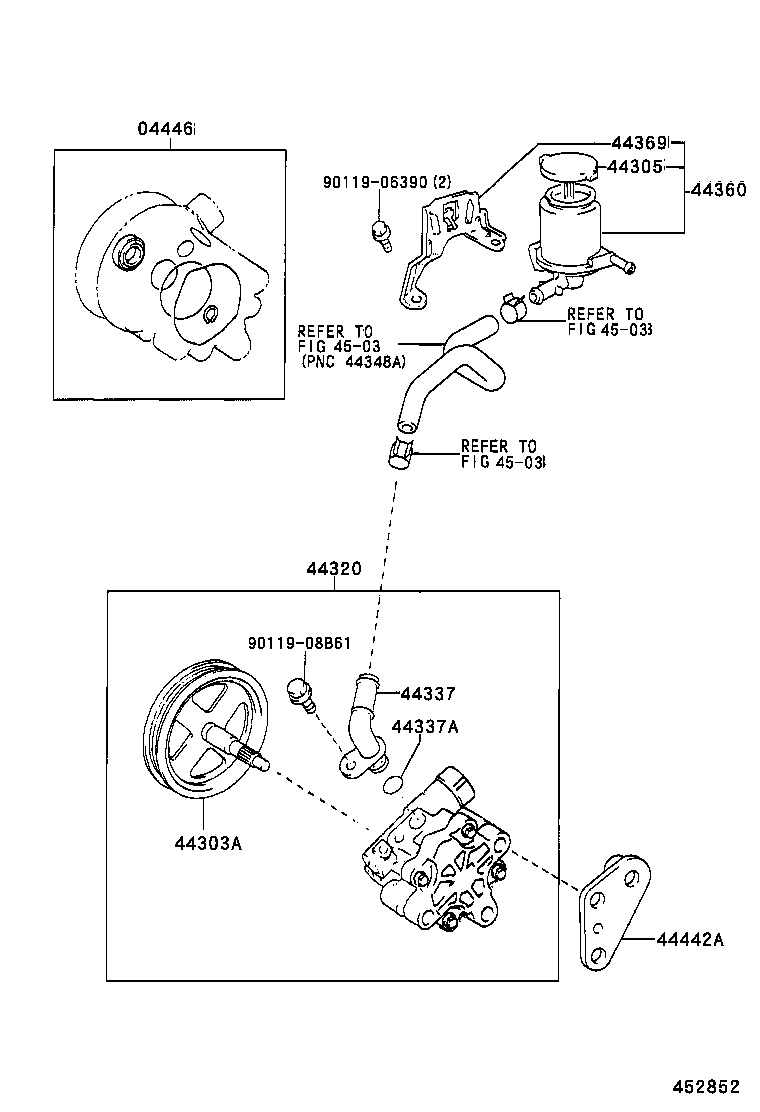

Toyota Corolla verso CDE120 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050	CDE120,ZZE12#	09/2001 - 01/2004	1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-12030	CDE120	10/2001 - 01/2004	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030	CDE120,ZZE12#	09/2001 - 01/2004	1
44320 - PUMP ASSY, VANE
44310-12560	CDE120	10/2001 - 01/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12130	CDE120	10/2001 - 01/2004	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020	CDE120,ZZE12#	09/2001 - 01/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-13010	CDE120	10/2001 - 01/2004	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-12060	CDE120,ZZE12#	09/2001 - 01/2004	1
44442A - BRACKET, VANE PUMP, REAR
44442-13010	CDE120	10/2001 - 01/2004	1
Common parts
90119-06390
90119-08B61
Linked diagrams
4503

CDE120L-FWMDYW (2001)
