CDE120L-FWMDYW (2001)

Toyota Corolla Verso

Production Oct 2001 - Jan 2004

Engine 1CDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0109- )MTM

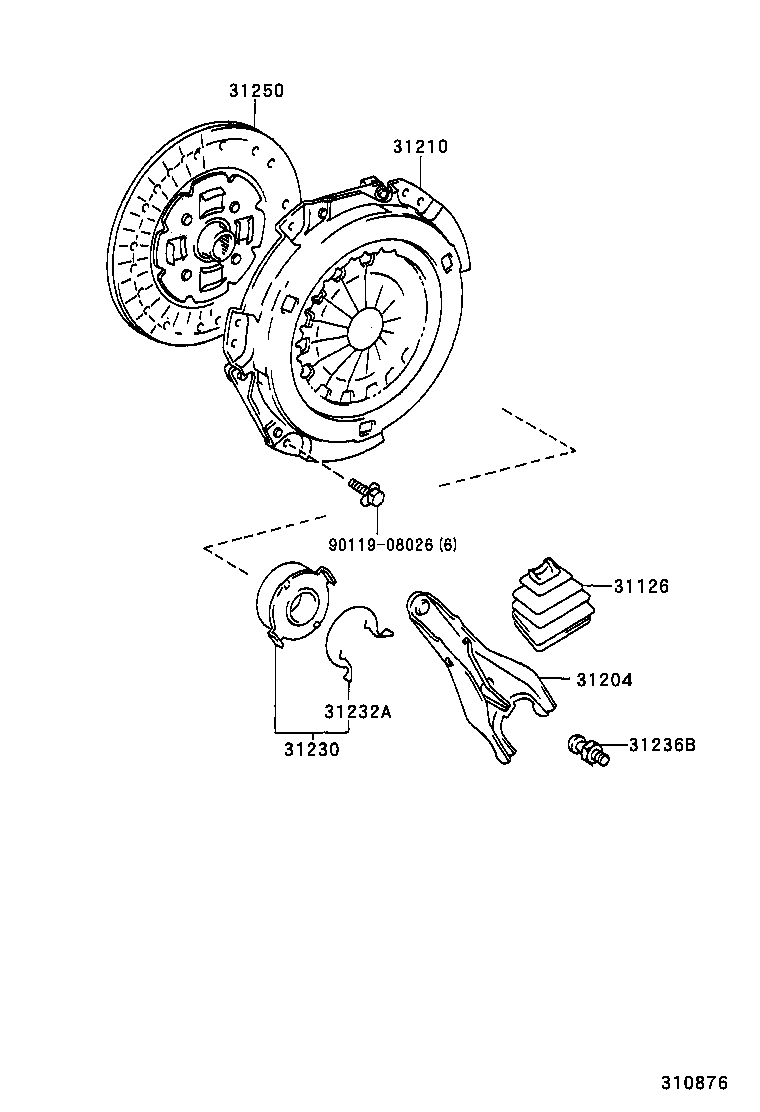

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20080	CDE120	10/2001 - 01/2004	1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20131	CDE120	01/2003 - 01/2004	1
31204-20130	CDE120	10/2001 - 01/2003	1
31210 - COVER ASSY, CLUTCH
31210-12240	CDE120	10/2001 - 01/2004	1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-20191	CDE120	10/2001 - 01/2004	1
31232A - CLIP, RELEASE BEARING HUB
31232-20031	CDE120	10/2001 - 01/2004	1
31236B - SUPPORT, RELEASE FORK
31236-20080	CDE120	10/2001 - 01/2004	1
31250 - DISC ASSY, CLUTCH
31250-12410	CDE120	10/2001 - 01/2004	1
Common parts
90119-08026
