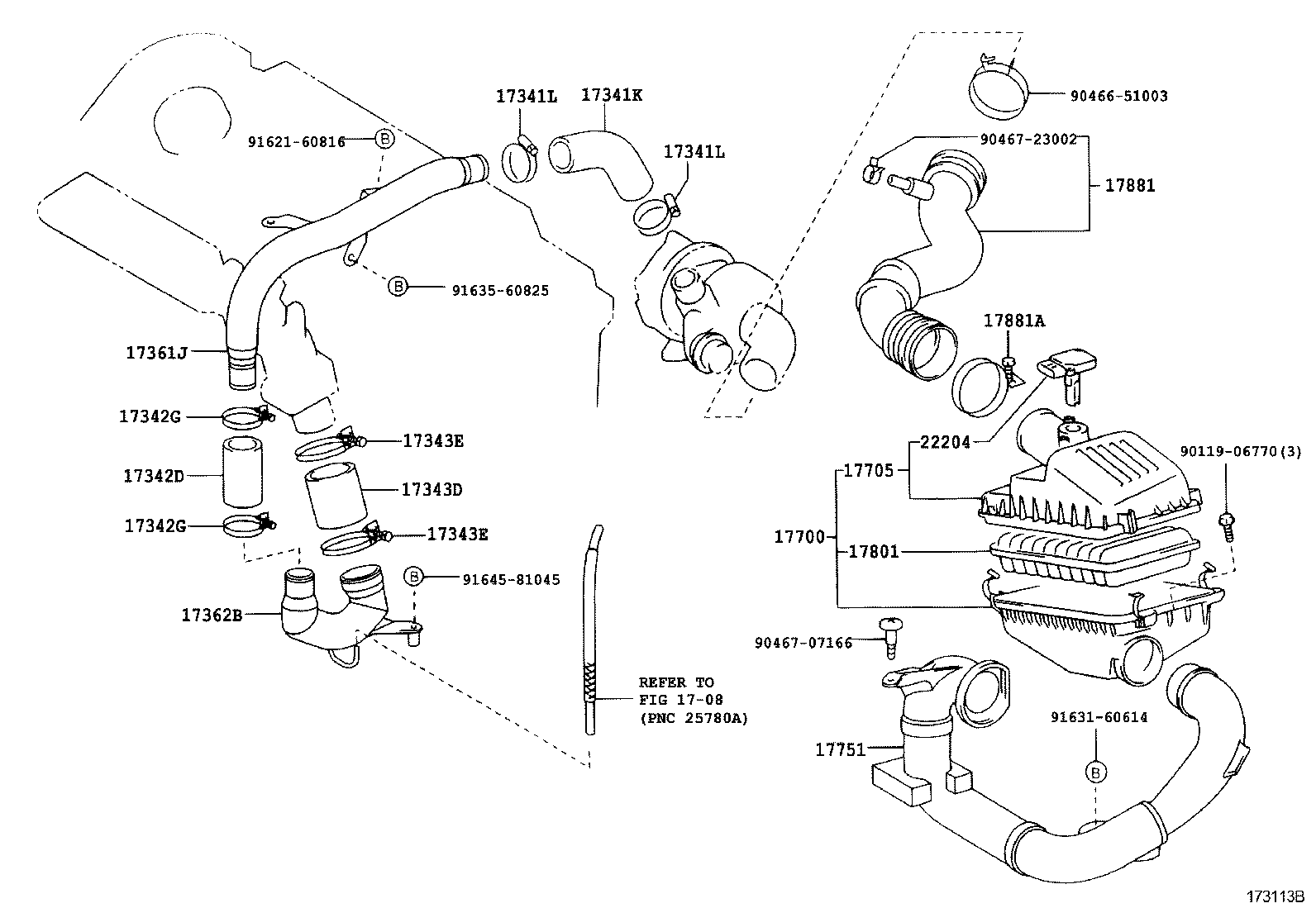

Toyota Corolla verso CDE120 AIR CLEANER

Part #	Description	Period	Qty
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17341L - CLAMP, HOSE
90460-50006	1CDFTV..CDE120	10/2001 - 01/2004	2
17341L - CLAMP, HOSE
90460-50006	1CDFTV..CDE120	10/2001 - 01/2004	2
17342D - HOSE, AIR, NO.2
17342-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-50006	1CDFTV..CDE120	10/2001 - 01/2004	2
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90460-50006	1CDFTV..CDE120	10/2001 - 01/2004	2
17343D - HOSE, AIR, NO.3
17343-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-73011	1CDFTV..CDE120	10/2001 - 01/2004	2
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-73011	1CDFTV..CDE120	10/2001 - 01/2004	2
17361J - TUBE, AIR, NO.1
17361-27040	1CDFTV..CDE120	10/2001 - 01/2004	1
17362B - TUBE, AIR, NO.2
17362-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17700 - CLEANER ASSY, AIR
17700-27170	1CDFTV..CDE120	10/2001 - 01/2004	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-27040	1CDFTV..CDE120	10/2001 - 01/2004	1
17751 - INLET, AIR CLEANER, NO.1
17751-27050	1CDFTV..CDE120	10/2001 - 01/2004	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17881 - HOSE, AIR CLEANER, NO.1
17880-27040	1CDFTV..CDE120	10/2001 - 01/2004	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780	1CDFTV..CDE120	10/2001 - 01/2004	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
Common parts
90119-06770
90466-51003
90467-07166
90467-23002
91621-60816
91631-60614
91635-60825
91645-81045
Linked diagrams
1708

CDE120L-FWMDYW (2001)

(0110- )1CDFTV
