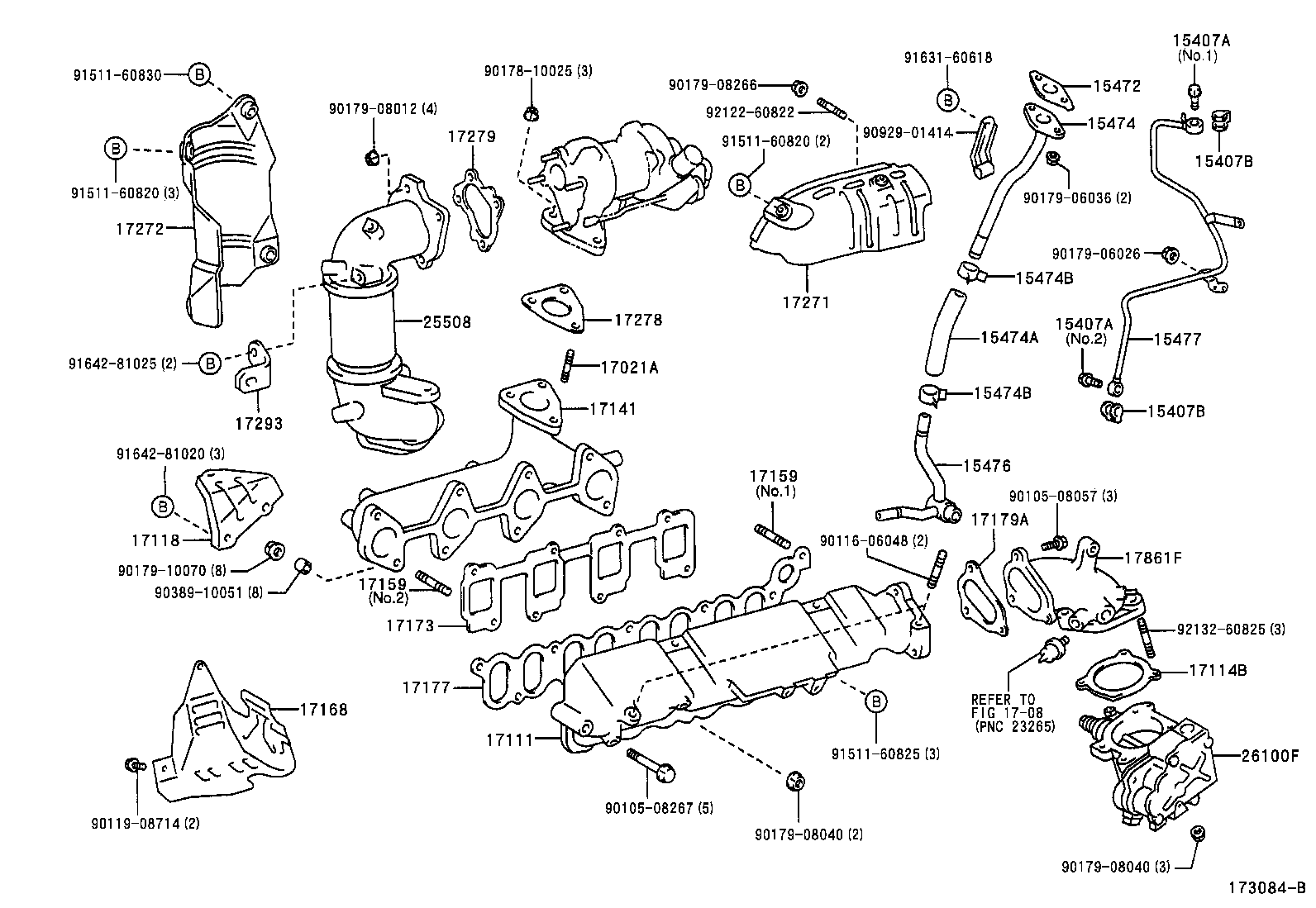

Toyota Corolla verso CDE120 MANIFOLD

Part #	Description	Period	Qty
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10061	1CDFTV..CDE120 NO.1	10/2001 - 01/2004	1
90401-10063	1CDFTV..CDE120 NO.2	10/2001 - 01/2004	1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10061	1CDFTV..CDE120 NO.1	10/2001 - 01/2004	1
90401-10063	1CDFTV..CDE120 NO.2	10/2001 - 01/2004	1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30011	1CDFTV..CDE120	10/2001 - 01/2004	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30011	1CDFTV..CDE120	10/2001 - 01/2004	2
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
15474 - PIPE, TURBO OIL OUTLET
15474-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
15474A - HOSE, TURBO OIL OUTLET
15491-27030	1CDFTV..CDE120	10/2001 - 01/2004	1
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-20005	1CDFTV..CDE120	10/2001 - 01/2004	2
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-20005	1CDFTV..CDE120	10/2001 - 01/2004	2
15476 - PIPE, TURBO OIL OUTLET, NO.2
15476-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
15477 - PIPE, TURBO OIL INLET
15477-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-10148	1CDFTV..CDE120	10/2001 - 01/2004	3
17111 - MANIFOLD, INTAKE
17111-27012	1CDFTV..CDE120	04/2002 - 01/2004	1
17111-27011	1CDFTV..CDE120	10/2001 - 04/2002	1
17114B - GASKET, INTAKE FLANGE
26171-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17118 - STAY, MANIFOLD
17118-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17141 - MANIFOLD, EXHAUST
17141-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10024	1CDFTV..CDE120 NO.2	10/2001 - 01/2004	8
92132-60820	1CDFTV..CDE120 NO.1	10/2001 - 01/2004	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10024	1CDFTV..CDE120 NO.2	10/2001 - 01/2004	8
92132-60820	1CDFTV..CDE120 NO.1	10/2001 - 01/2004	2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17271 - INSULATOR, TURBO, NO.1
17271-27050	1CDFTV..CDE120	10/2001 - 01/2004	1
17272 - INSULATOR, TURBO, NO.2
17272-27050	1CDFTV..CDE120	10/2001 - 01/2004	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17293 - STAY, TURBOCHARGER
17293-27030	1CDFTV..CDE120	10/2001 - 01/2004	1
17861F - CONNECTOR, INTAKE AIR
17861-27011	1CDFTV..CDE120	10/2001 - 01/2004	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25051-27050	1CDFTV..CDE120	10/2001 - 01/2004	1
26100F - SHUTTER ASSY, INTAKE
26100-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
Common parts
90105-08057
90105-08267
90116-06048
90119-08714
90178-10025
90179-06026
90179-06036
90179-08012
90179-08040
90179-08266
90179-10070
90389-10051
90929-01414
91511-60820
91511-60825
91511-60830
91631-60618
91642-81020
91642-81025
92122-60822
92132-60825
Linked diagrams

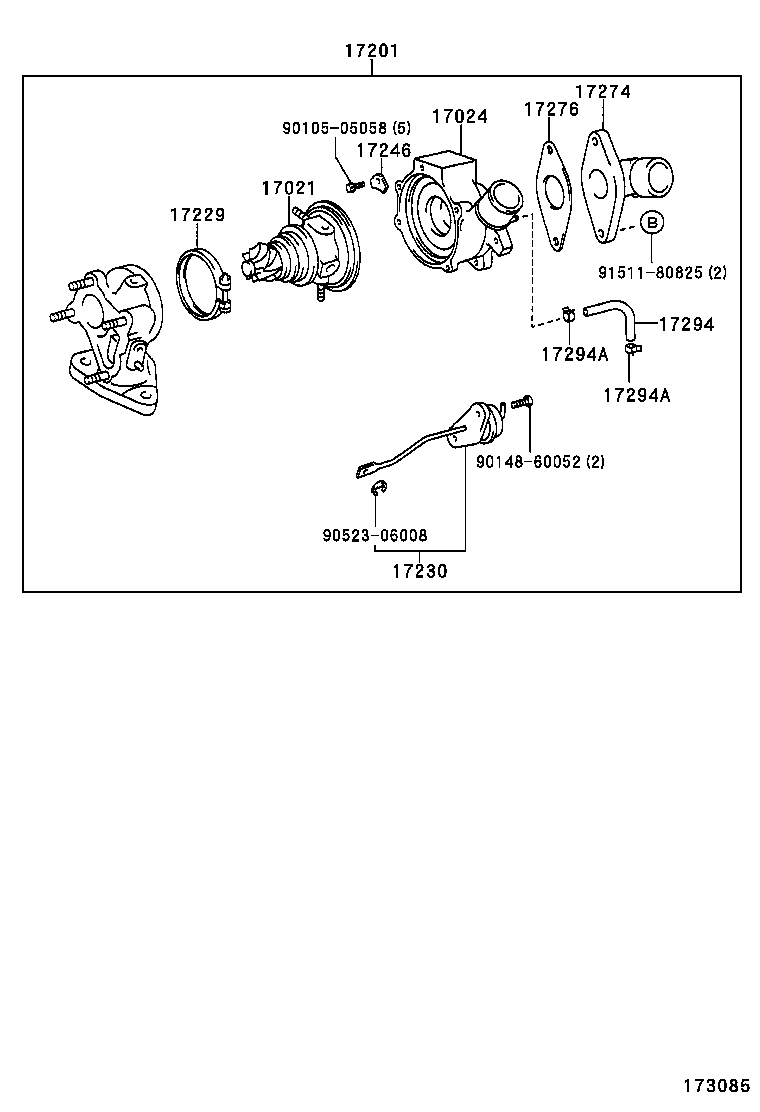

1708

Part #	Description	Period	Qty
17021 - HOUSING SUB-ASSY, BEARING
17021-27020	1CDFTV..CDE120	10/2001 - 01/2004	1
17024 - HOUSING SUB-ASSY, COMPRESSOR
17024-27030	1CDFTV..CDE120	10/2001 - 01/2004	1
17201 - TURBOCHARGER SUB-ASSY
17201-27050	1CDFTV..CDE120	10/2001 - 01/2004	1
17229 - BAND, V
17229-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17230 - ACTUATOR ASSY, W/BRACKET
17230-29035	1CDFTV..CDE120	10/2001 - 01/2004	1
17246 - PLATE, COMPRESSOR HOUSING CLAMP
17246-27010	1CDFTV..CDE120	10/2001 - 01/2004	5
17274 - ELBOW, COMPRESSOR INLET
17274-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17276 - GASKET, COMPRESSOR INLET
17276-27010	1CDFTV..CDE120	10/2001 - 01/2004	1
17294 - HOSE, ACTUATOR
90445-09035	1CDFTV..CDE120	10/2001 - 01/2004	1
17294A - CLIP(FOR ACTUATOR HOSE)
90466-07001	1CDFTV..CDE120	10/2001 - 01/2004	2
17294A - CLIP(FOR ACTUATOR HOSE)
90466-07001	1CDFTV..CDE120	10/2001 - 01/2004	2
Common parts
90105-05058
90148-60052
90523-06008
91511-80825

CDE120L-FWMDYW (2001)

ILLUST NO. 1 OF 2(0110- )1CDFTV

ILLUST NO. 2 OF 2(0110- )1CDFTV
