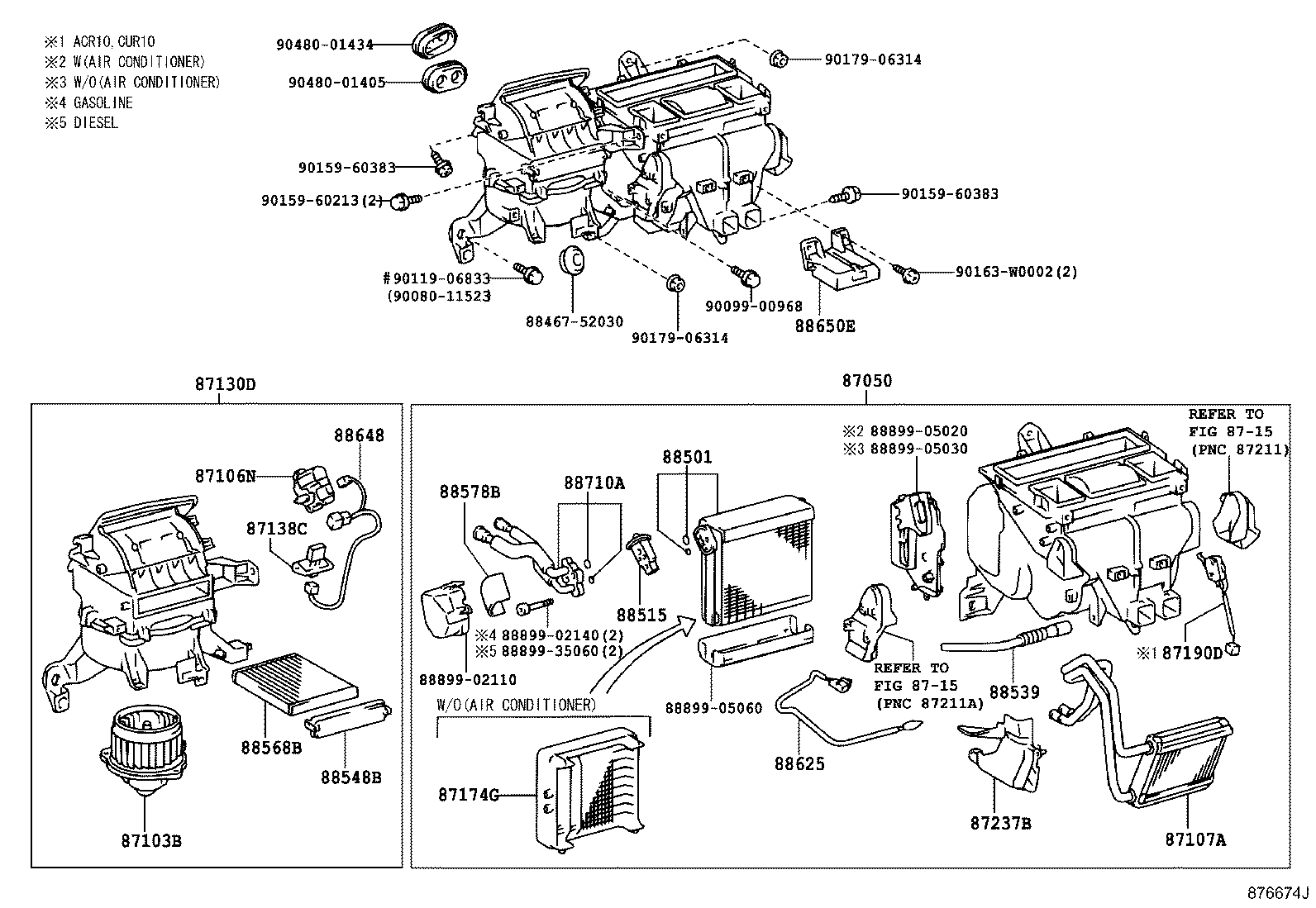

Toyota Corolla verso AUR10 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0F090	AUR10,CUR10..RHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
87050-0F110	AUR10,CUR10..RHD..TERRA	02/2004 - 05/2007	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02070	AUR10,CUR10,ZNR1#..RHD	02/2004 - 05/2007	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-02100	AUR10,CUR10,ZNR1#..RHD	02/2004 - 05/2007	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-05090	AUR10,CUR10,ZNR1#..RHD..(DCR,HTWC)	02/2004 - 05/2007	1
87130D - BLOWER ASSY
87130-0F010	AUR10..RHD..TERRA	02/2004 - 10/2005	1
87130-0F050	AUR10..RHD..TERRA	11/2005 - 05/2007	1
87138C - RESISTOR, BLOWER
87138-02040	AUR10,CUR10,ZNR1#..TERRA	02/2004 - 05/2007	1
87174G - GUIDE, AIR HEATER
87174-0F010	AUR10,ZNR1#..TERRA	02/2004 - 05/2007	1
87190D - SWITCH ASSY, TEMPERATURE CONTROL
87190-0F010	AUR10,CUR10..RHD..TERRA	02/2004 - 05/2007	1
87237B - COVER, HEATER PIPING
87237-05050	AUR10,CUR10,ZNR1#..RHD	02/2004 - 05/2007	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-05070	AUR10,CUR10,ZNR1#..RHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
88515 - VALVE, COOLER EXPANSION
88515-21040	AUR10,ZNR1#..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-02070	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
88548B - CASE, AIR FILTER
88548-02040	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
88568B - FILTER, AIR
88568-02030	AUR10,CUR10,ZNR1#	02/2004 - 05/2007	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12520	ZNR1#..RHD..TERRA;AUR10,CUR10..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
88625 - THERMISTOR, COOLER, NO.1
88625-02060	ZNR1#..TERRA;AUR10,CUR10..RHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
88648 - WIRING, COOLER, NO.1
88648-0F110	AUR10,CUR10,ZNR1#..RHD..TERRA	02/2004 - 05/2007	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0F030	AUR10,CUR10,ZNR1#..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-05360	AUR10,CUR10,ZNR1#..RHD..TERRA AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)	02/2004 - 05/2007	1
Common parts
88467-52030
88899-02110
88899-02140
88899-05020
88899-05030
88899-05060
88899-35060
90080-11523
90099-00968
90119-06833
90159-60213
90159-60383
90163-W0002
90179-06314
90480-01405
90480-01434
Linked diagrams
8715

AUR10R-GWFDYW (2005)

(0402-0705)RHD..TERRA ; (0508-0705)RHD..DCRL
