AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )AUR10

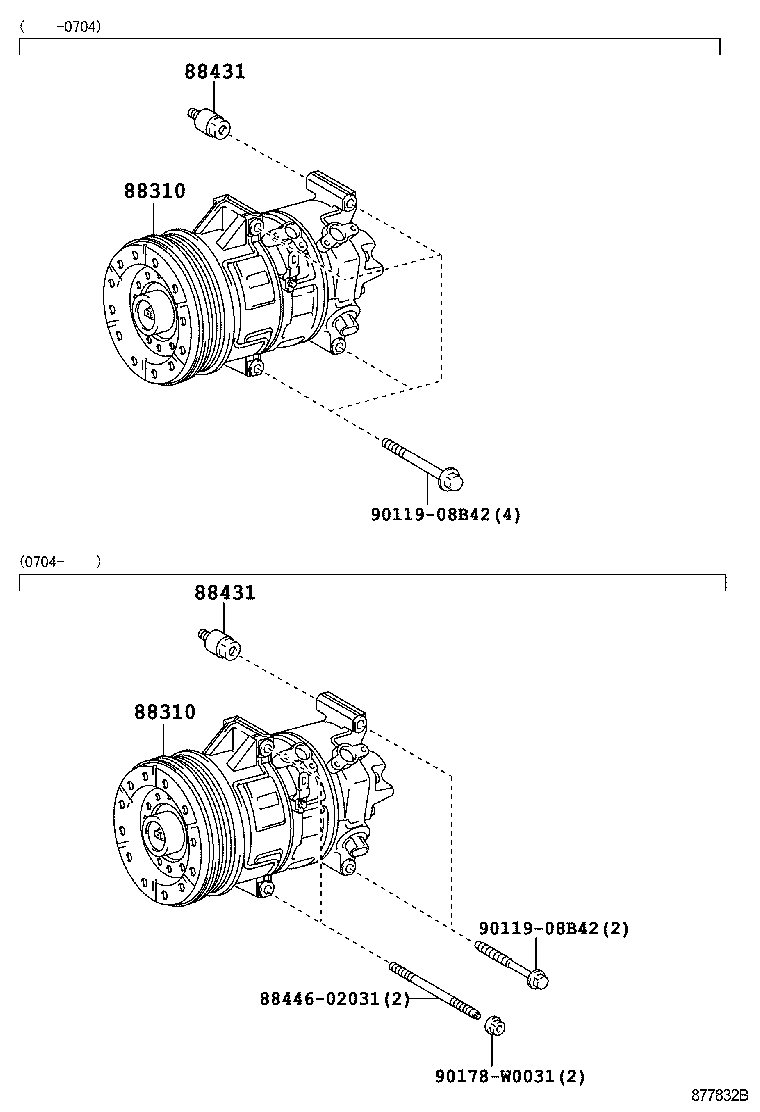

Click highlighted areas on diagram

diagram 88310 88310 88431 88431 8844602031 9011908B42 9011908B42 90178W0031
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0F030

AUR10..SOL

 1
88310 - COMPRESSOR ASSY, W/PULLEY
88310-0F030

AUR10..SOL

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88433-20040

AUR10

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88433-20040

AUR10

 1
Common parts
88446-02031
90119-08B42
90178-W0031
