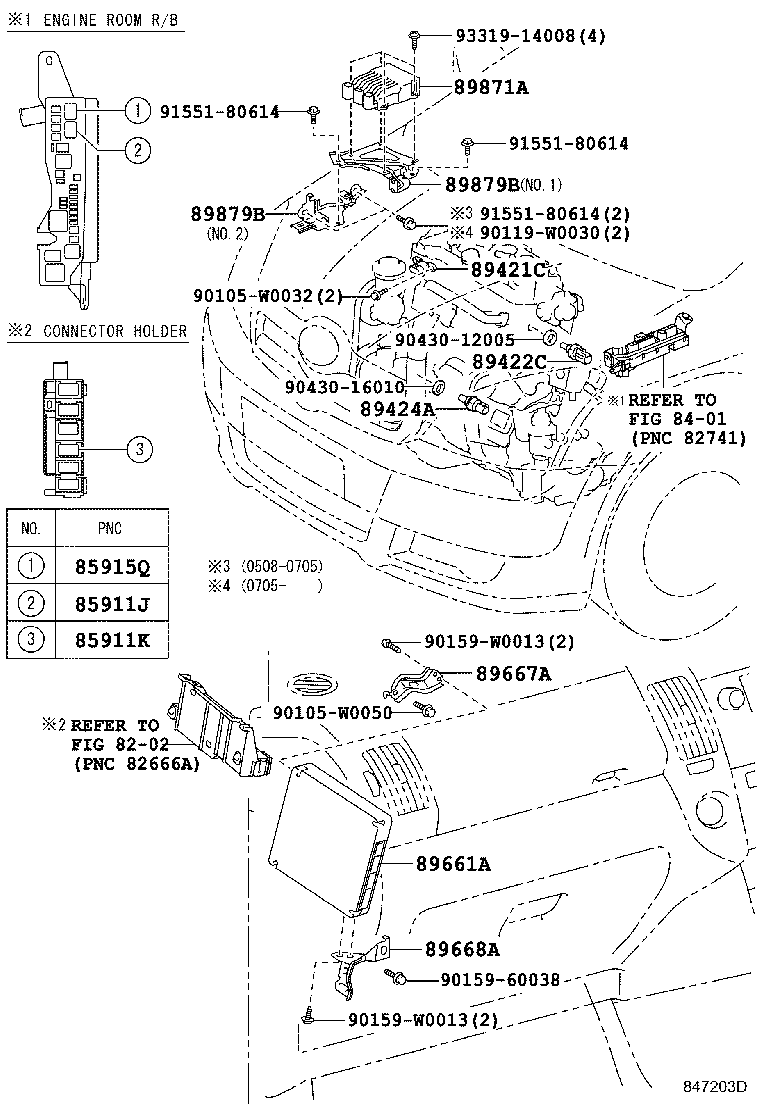

Toyota Corolla verso AUR10 ELECTRONIC CONTROLED DIESEL (ECD)

Part #	Description	Period	Qty
85911J - RELAY ASSY, CIRCUIT OPENING (FOR ECD)
90080-87019	AUR10,CUR10	02/2004 - 05/2007	1
85915Q - RELAY, COMPUTER (FOR DIESEL)
90080-87019	AUR10,CUR10	02/2004 - 05/2007	1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200	AUR10	08/2005 - 05/2007	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	AUR10	08/2005 - 05/2007	1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010	AUR10,CUR10	02/2004 - 05/2007	1
89661A - COMPUTER, ENGINE CONTROL
89661-0F100	AUR10..DCR	08/2005 - 01/2007	1
89661-0F101	AUR10..DCR	02/2007 - 05/2007	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-0F020	AUR10..RHD	02/2004 - 05/2007	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0F020	AUR10..RHD	02/2004 - 05/2007	1
89871A - DRIVER, INJECTOR
89871-71010	AUR10..DCR	08/2005 - 05/2007	1
89879B - BRACKET, INJECTOR DRIVER
89879-20160	AUR10 NO.2	08/2005 - 05/2007	1
89879-20150	AUR10..DCR NO.1	08/2005 - 05/2007	1
89879B - BRACKET, INJECTOR DRIVER
89879-20160	AUR10 NO.2	08/2005 - 05/2007	1
89879-20150	AUR10..DCR NO.1	08/2005 - 05/2007	1
Common parts
90105-W0032
90105-W0050
90119-W0030
90159-60038
90159-W0013
90430-12005
90430-16010
91551-80614
93319-14008
Linked diagrams
8202
8401

AUR10R-GRFEYW (2005)
