AUR10R-GRFEYW (2005)
Toyota Corolla Verso
ILLUST NO. 2 OF 7(0402- )AUR10,CUR10
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-67010 |
2AD#..AUR10 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-28010 |
2AD#..AUR10 |
1 | ||
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-28030 |
2AD#..AUR10 |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-02010 |
AUR10,ZNR1# |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
AUR10 |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 91551-80614 | ||||
| 91626-40620 | ||||
| Linked diagrams | ||||
| 8201 | ||||

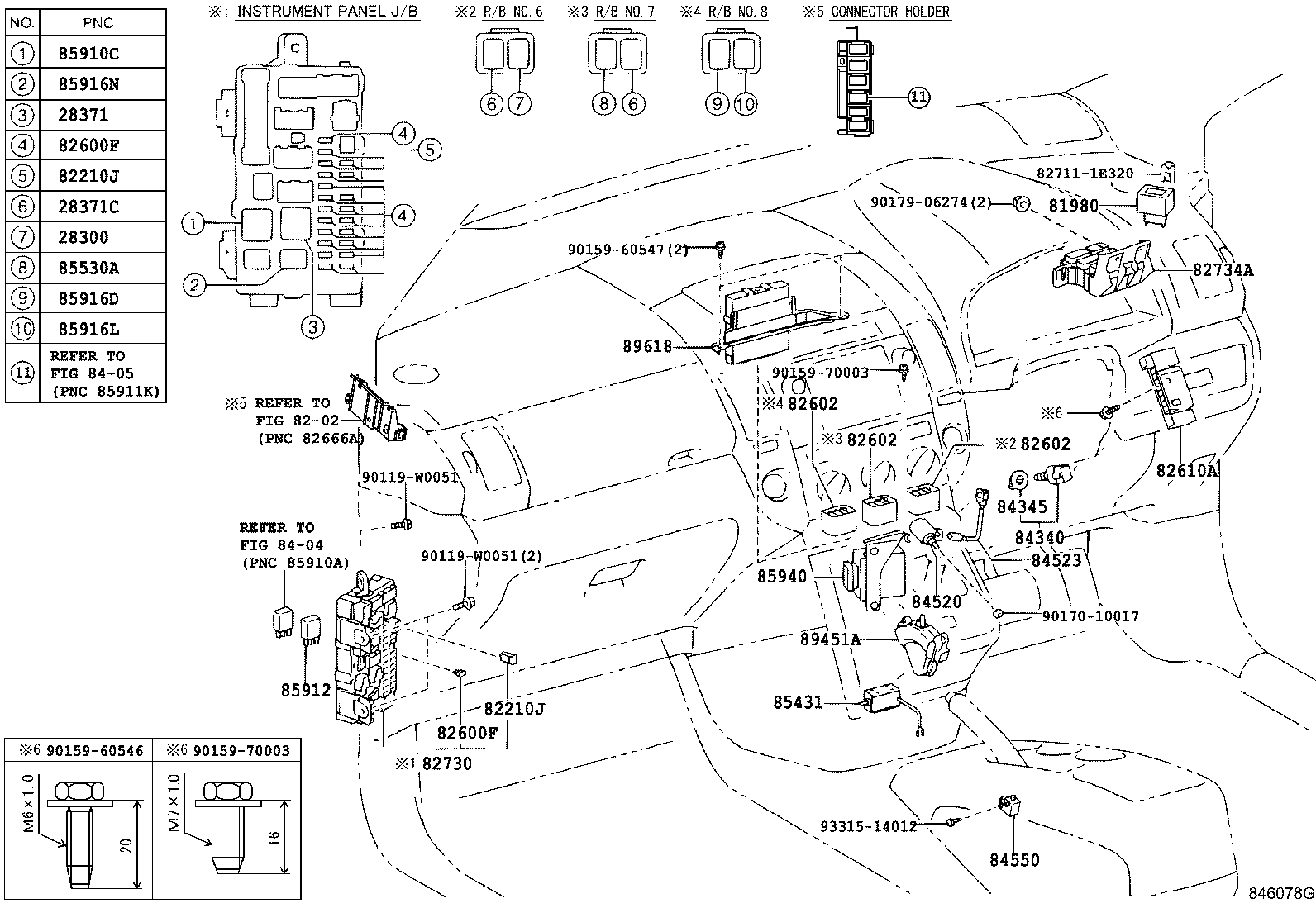

ILLUST NO. 4 OF 7(0402- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90080-87030 |
2AD#,1ZZFE,3ZZFE..AUR10,ZNR1# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87019 |
2AD#..AUR10 |
3 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-05040 |
AUR10,ZNR1# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08257 |
AUR10,CUR10 40A,TERM.:MALE,GRN,ENGINE ROOM R/B |
1 | ||
| 90982-08283 |
AUR10,CUR10,ZNR1# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08280 |
AUR10,CUR10,ZNR1# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08282 |
AUR10,CUR10,ZNR1# 50A,TERM.:FEMALE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-08203 |
AUR10,CUR10 80A,TERM.:MALE,BLK,ENGINE ROOM R/B,NO.2 |
1 | ||
| 90982-08286 |
AUR10,CUR10 140A,TERM.:MALE,RBR,ENGINE ROOM R/B,NO.2 |
1 | ||
| 90982-08281 |
AUR10,CUR10,ZNR1# 40A,TERM.:FEMALE,GRN,ENGINE ROOM R/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08257 |
AUR10,CUR10 40A,TERM.:MALE,GRN,ENGINE ROOM R/B |
1 | ||
| 90982-08283 |
AUR10,CUR10,ZNR1# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08280 |
AUR10,CUR10,ZNR1# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08282 |
AUR10,CUR10,ZNR1# 50A,TERM.:FEMALE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-08203 |
AUR10,CUR10 80A,TERM.:MALE,BLK,ENGINE ROOM R/B,NO.2 |
1 | ||
| 90982-08286 |
AUR10,CUR10 140A,TERM.:MALE,RBR,ENGINE ROOM R/B,NO.2 |
1 | ||
| 90982-08281 |
AUR10,CUR10,ZNR1# 40A,TERM.:FEMALE,GRN,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AUR10,CUR10,ZNR1# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AUR10,CUR10,ZNR1# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AUR10,CUR10,ZNR1# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82033 |
AUR10,CUR10,ZNR1# 25A,MINI FUSE |
1 | ||
| 90080-82023 |
AUR10,CUR10,ZNR1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82021 |
AUR10,CUR10,ZNR1# 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AUR10,ZNR1# 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AUR10,CUR10,ZNR1# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AUR10,CUR10,ZNR1# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AUR10,CUR10,ZNR1# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82033 |
AUR10,CUR10,ZNR1# 25A,MINI FUSE |
1 | ||
| 90080-82023 |
AUR10,CUR10,ZNR1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82021 |
AUR10,CUR10,ZNR1# 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AUR10,ZNR1# 5A,MINI FUSE,TAN |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-43040 |
AUR10,CUR10,ZNR1# |
3 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-43040 |
AUR10,CUR10,ZNR1# |
3 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-43040 |
AUR10,CUR10,ZNR1# |
3 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0F010 |
AUR10,CUR10,ZNR1#..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0F010 |
AUR10,ZNR1#..RHD POWER DOOR LOCK-WITH |
1 | ||
| 82730-0F020 |
AUR10,ZNR1#..RHD |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-05020 |
AUR10,CUR10,ZNR1#..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09020 |
AUR10,CUR10,ZNR1# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
AUR10,CUR10,ZNR1#..5F,6F |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-64010 |
AUR10,CUR10,ZNR1#..RHD..(5F,6F) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-64010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90080-87019 |
AUR10,ZNR1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87031 |
AUR10,ZNR1# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87019 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
1 | ||
| 90080-87019 |
AUR10,ZNR1# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87019 |
AUR10,ZNR1#..SOL |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87019 |
AUR10,ZNR1# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87019 |
AUR10,ZNR1# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-0F010 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
1 | ||
| 85940-0F010 |
AUR10,ZNR1#..SOL |
1 | ||
| 89618 - COMPUTER, IGNITION CONTROL | ||||
| 89618-0F020 |
AUR10,ZNR1#..5F,6F |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90119-W0051 | ||||
| 90159-60546 | ||||
| 90159-60547 | ||||
| 90159-70003 | ||||
| 90170-10017 | ||||
| 90179-06274 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

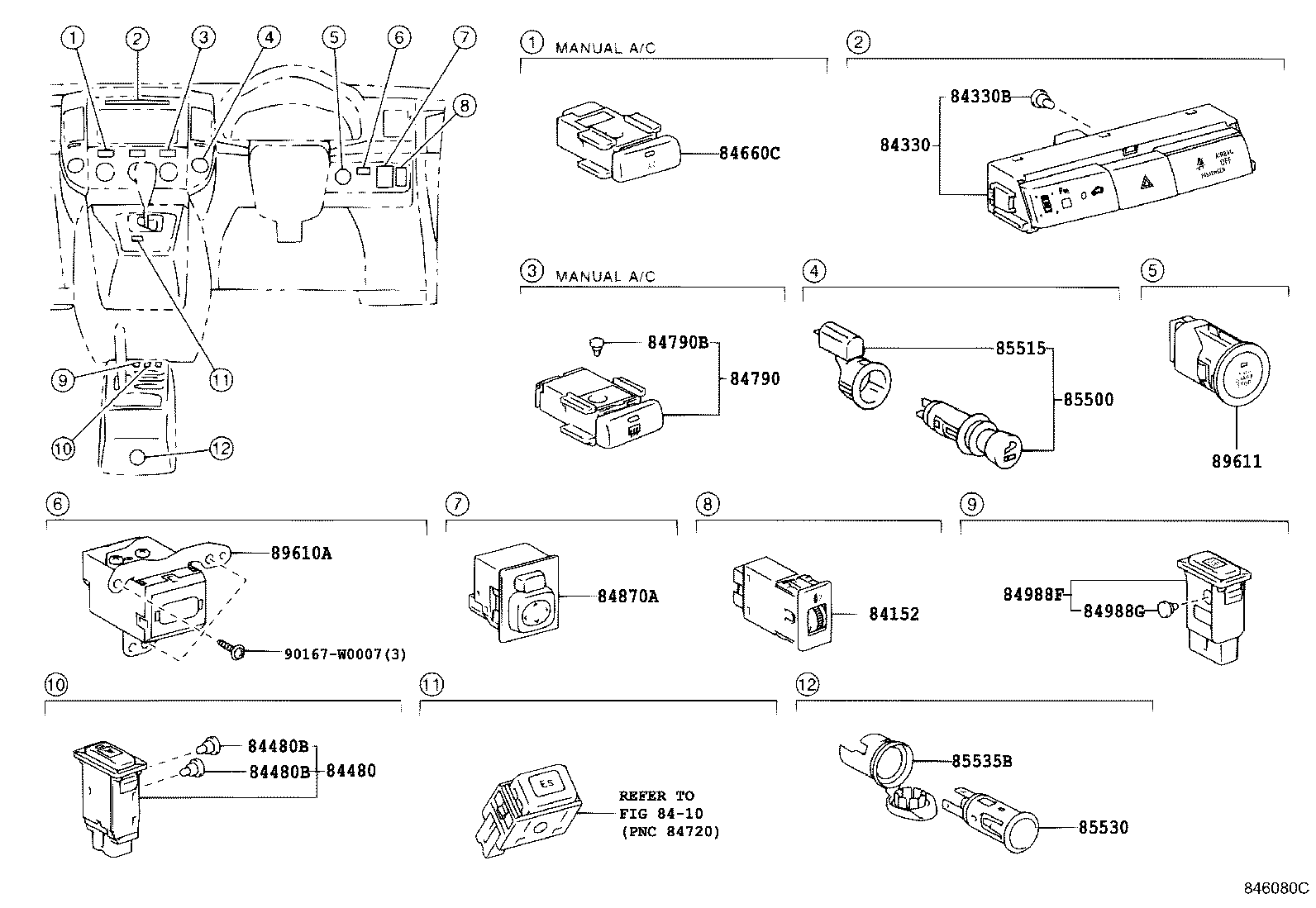

ILLUST NO. 5 OF 7(0402- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0F010 |
AUR10,ZNR1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 84332-0F020 |
AUR10,ZNR1# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90011-01016 |
AUR10,ZNR1# 14V 0.84W |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-0F010 |
AUR10,ZNR1#..SOL BACK MONITOR-WITH |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
AUR10,ZNR1#..SOL 14V 0.91W,BACK MONITOR-WITH |
1 | ||
| 90010-01050 |
AUR10,ZNR1#..SOL 14V 0.91W,YELLOW CAP,BACK MONITOR-WITH |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
AUR10,ZNR1#..SOL 14V 0.91W,BACK MONITOR-WITH |
1 | ||
| 90010-01050 |
AUR10,ZNR1#..SOL 14V 0.91W,YELLOW CAP,BACK MONITOR-WITH |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02040 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-0F010 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90011-01050 |
AUR10,ZNR1#..SOL..(DCR,HTWC) 14V 1.12W,W(CAP),LUNA PACKAGE |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0F010 |
AUR10,ZNR1# |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-02010 |
AUR10,ZNR1# |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10320 |
AUR10,ZNR1# 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09040 |
AUR10,ZNR1# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0D020 |
AUR10,ZNR1# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-05010 |
AUR10,ZNR1# |
1 | ||
| 89610A - HOLDER ASSY, ELECTRICAL KEY | ||||
| 89610-0F020 |
AUR10,ZNR1#..RHD |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0F010 |
AUR10,ZNR1# |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 6 OF 7(0402- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-05110 |
AUR10,ZNR1#..SOL |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-64020B0 |
AUR10,CUR10,ZNR1#..SOL DK.GRAY,TRIM1# |
1 | ||
| 84250-64010B0 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE,DK.GRAY,TRIM1# |
1 | ||
| 84250-64020B0 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE&STEERING WHEEL-LEATHER, W/O(STEERING SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 84250-64020B0 |
AUR10,ZNR1#..SOL..(DCR,HTWC) STEERING WHEEL-LEATHER, W/O(STEERING SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 84250-64020B0 |
AUR10,CUR10,ZNR1#..SOL AUDIO-RADIO LESS,DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-05050 |
AUR10,ZNR1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-05050 |
AUR10,ZNR1# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-05150 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
1 | ||
| 84652-05170 |
AUR10,ZNR1#..SOL |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02020 |
AUR10 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02020 |
AUR10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 7 OF 7(0402- )
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-68010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AUR10,CUR10,ZNR1# |
2 | ||
| 84231-0D030 |
AUR10,ZNR1# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AUR10,CUR10,ZNR1# |
2 | ||
| 84231-0D030 |
AUR10,ZNR1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AUR10,ZNR1# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AUR10,ZNR1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0F010 |
AUR10,ZNR1# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0F010 |
AUR10,ZNR1# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0F010 |
AUR10,ZNR1#..SOL |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-0F010 |
AUR10,ZNR1#..SOL |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0F010 |
AUR10,ZNR1#..RHD..SOL |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0F010 |
AUR10,ZNR1#..RHD..SOL |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-20010 |
AUR10,CUR10,ZNR1# |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90901-48003 | ||||
ILLUST NO. 1 OF 7(0508- )AUR10
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
AUR10,CUR10 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AUR10,CUR10,ZNR1# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-20110 |
AUR10 |
1 | ||
| Common parts | ||||
| 82715-42710 | ||||
| 90178-W0019 | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||
| 94151-80601 | ||||
| 96221-10706 | ||||
ILLUST NO. 3 OF 7(0402- )AUR10,CUR10
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87019 |
2AD#..AUR10 |
3 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08257 |
AUR10,CUR10 40A,TERM.:MALE,GRN,ENGINE ROOM R/B |
1 | ||
| 90982-08283 |
AUR10,CUR10,ZNR1# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08280 |
AUR10,CUR10,ZNR1# 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 90982-08282 |
AUR10,CUR10,ZNR1# 50A,TERM.:FEMALE,RED,ENGINE ROOM R/B |
1 | ||
| 90982-08203 |
AUR10,CUR10 80A,TERM.:MALE,BLK,ENGINE ROOM R/B,NO.2 |
1 | ||
| 90982-08286 |
AUR10,CUR10 140A,TERM.:MALE,RBR,ENGINE ROOM R/B,NO.2 |
1 | ||
| 90982-08281 |
AUR10,CUR10,ZNR1# 40A,TERM.:FEMALE,GRN,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AUR10,CUR10,ZNR1# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AUR10,CUR10,ZNR1# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AUR10,CUR10,ZNR1# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82033 |
AUR10,CUR10,ZNR1# 25A,MINI FUSE |
1 | ||
| 90080-82023 |
AUR10,CUR10,ZNR1# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82021 |
AUR10,CUR10,ZNR1# 10A,MINI FUSE,RED |
1 | ||
| 90080-82031 |
AUR10,ZNR1# 5A,MINI FUSE,TAN |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-13010 |
AUR10,CUR10 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AUR10,CUR10,ZNR1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0F030 |
AUR10..DCR |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-64010 |
AUR10 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-0F081 |
AUR10,ZNR1# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0F020 |
AUR10,CUR10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-13020 |
AUR10,CUR10 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-05060 |
AUR10,CUR10 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20060 |
AUR10,CUR10 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-13020 |
AUR10,CUR10 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82741-05050 |
AUR10,CUR10,ZNR1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
AUR10,ZNR1# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87030 |
AUR10 |
1 | ||
| 90080-87019 |
AUR10,ZNR1#..SOL..(DCR,HTWC) LUNA PACKAGE |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
ZNR1#;AUR10,CUR10..SOL |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87019 |
AUR10,CUR10..SOL |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87019 |
AUR10,ZNR1# |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90182-W0004 | ||||
| 91651-B0616 | ||||
| Linked diagrams | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
