AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007

Engine 2ADFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

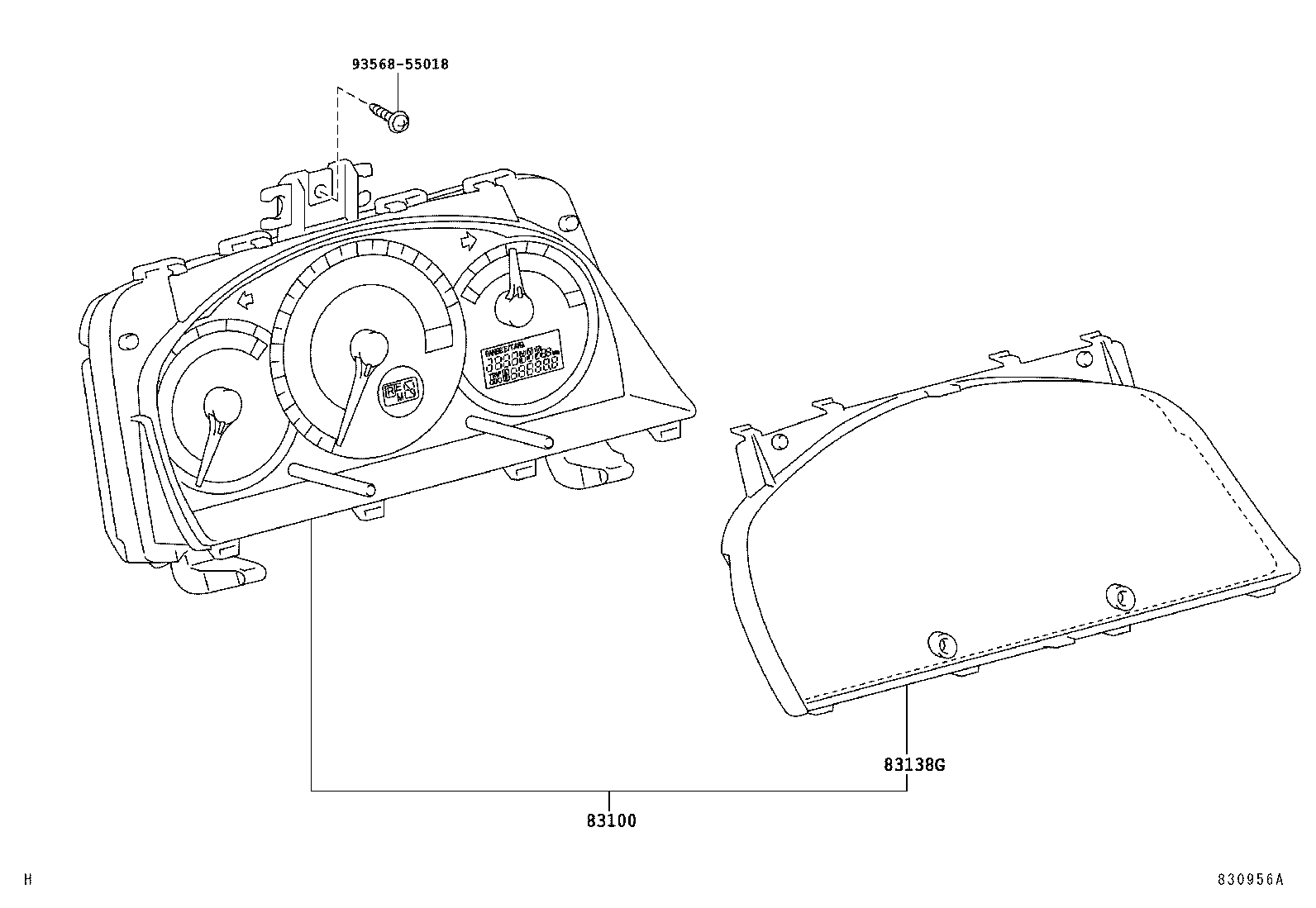

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-0F090	AUR10..RHD SPEED METER-OPTITRON KM/H	08/2005 - 12/2005	1
83800-0F080	AUR10..RHD	08/2005 - 12/2005	1
83800-0F091	AUR10..RHD SPEED METER-OPTITRON KM/H	01/2006 - 05/2007	1
83800-0F081	AUR10..RHD	01/2006 - 05/2007	1
83138G - GLASS, COMBINATION METER
83852-0F010	AUR10..RHD SPEED METER-OPTITRON KM/H	08/2005 - 05/2007	1
83852-0F010	AUR10..RHD	02/2004 - 01/2006	1
Common parts
93568-55018
