AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )

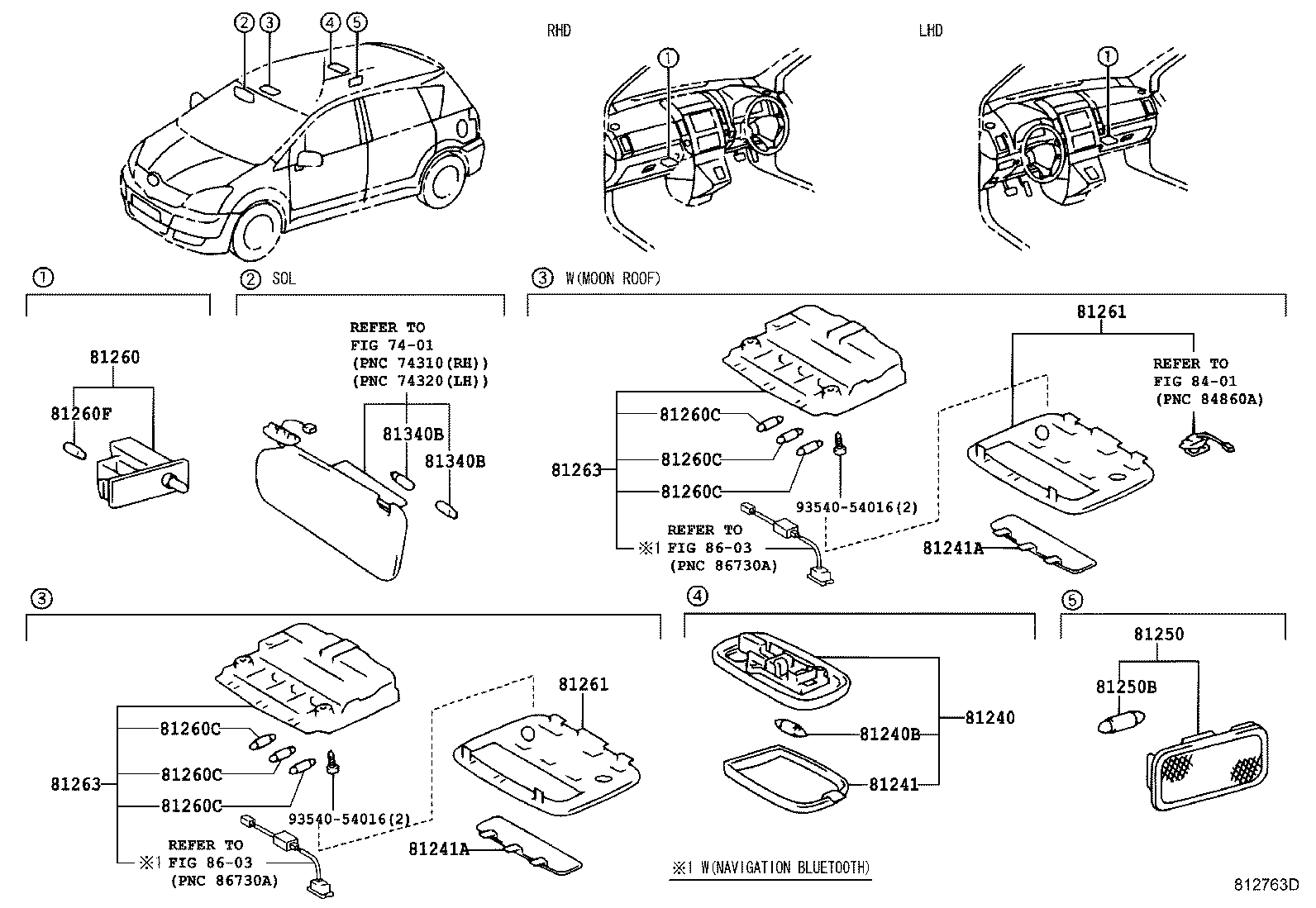

Click highlighted areas on diagram

diagram 7401 81240 81240B 81241 81241A 81241A 81250 81250B 81260 81260C 81260C 81260C 81260C 81260C 81260C 81260F 81261 81261 81263 81263 81340B 81340B 8401 8603 8603 9354054016 9354054016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12070B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

AUR10,ZNR1#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12070

AUR10,ZNR1#

 1
81241A - LENS, ROOM LAMP, NO.2
81363-05010

AUR10,ZNR1#

 1
81241A - LENS, ROOM LAMP, NO.2
81363-05010

AUR10,ZNR1#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-13040

AUR10,CUR10,ZNR1#

 1
81260F - BULB(FOR GLOVE BOX LAMP)
90981-11018

AUR10,ZNR1#

12V 1.2W W/O SOCKET

 1
81261 - LENS AND COVER, MAP LAMP
81261-05220B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 1
81261 - LENS AND COVER, MAP LAMP
81261-05220B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 1
81263 - BODY, MAP LAMP
81263-05230B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 1
81263 - BODY, MAP LAMP
81263-05230B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 1
Common parts
93540-54016
Linked diagrams
7401
8401
8603
