AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )

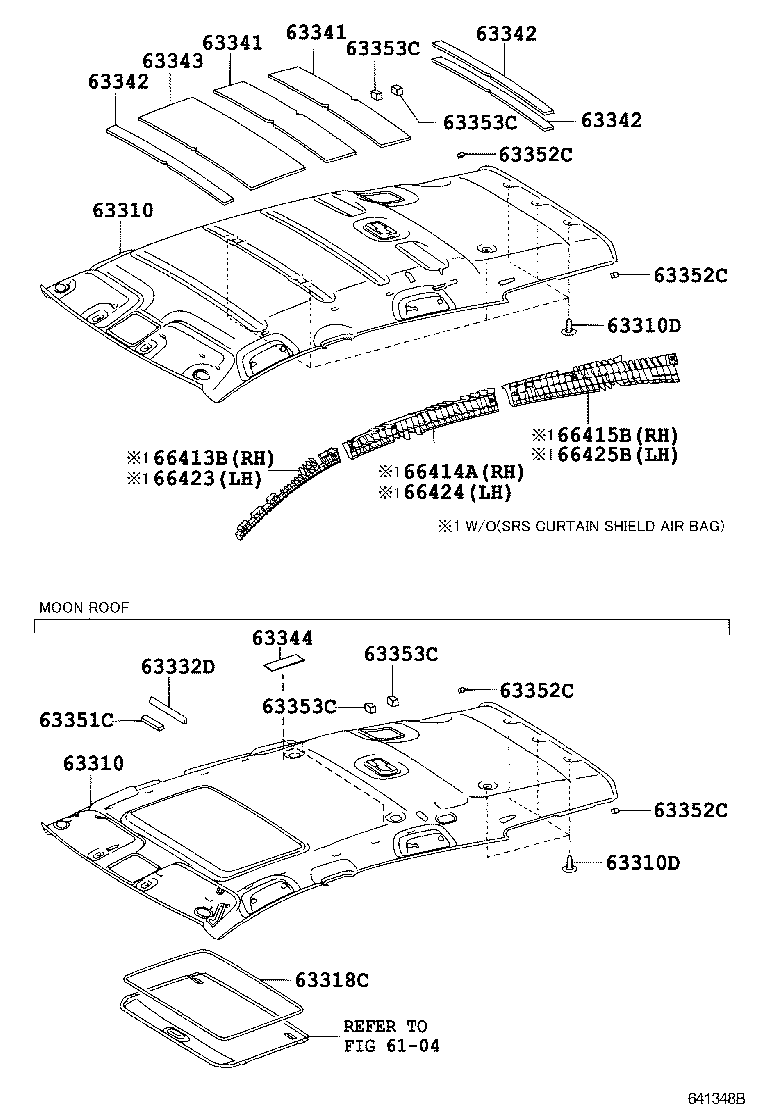

Click highlighted areas on diagram

diagram 6104 63310 63310 63310D 63310D 63318C 63332D 63341 63341 63342 63342 63342 63343 63344 63351C 63352C 63352C 63352C 63352C 63353C 63353C 63353C 63353C 66413B 66414A 66415B 66423 66424 66425B
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0F020B0

AUR10,CUR10,ZNR1#..SOL

LT. GRAY,TRIM1#

 1
63310-0F010B0

AUR10,ZNR1#..SOL..(DCR,HTWC)

LUNA PACKAGE,LT. GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-0F020B0

AUR10,CUR10,ZNR1#..SOL

LT. GRAY,TRIM1#

 1
63310-0F010B0

AUR10,ZNR1#..SOL..(DCR,HTWC)

LUNA PACKAGE,LT. GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-W0006B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#,(L)

 6
90467-05164B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#,(J)

 6
63310D - CLIP, ROOF HEADLINING
90467-W0006B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#,(L)

 6
90467-05164B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#,(J)

 6
63341 - PAD, ROOF SILENCER, NO.1
63341-02040

AUR10,ZNR1#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-02040

AUR10,ZNR1#

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-02070

AUR10,ZNR1#

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-02070

AUR10,ZNR1#

 3
63342 - PAD, ROOF SILENCER, NO.2
63342-02070

AUR10,ZNR1#

 3
63343 - PAD, ROOF SILENCER, NO.3
63343-02030

AUR10,ZNR1#

 1
63352C - PAD, ROOF HEADLINING, END
63352-0F010

AUR10,ZNR1#

 2
63352C - PAD, ROOF HEADLINING, END
63352-0F010

AUR10,ZNR1#

 2
63352C - PAD, ROOF HEADLINING, END
63352-0F010

AUR10,ZNR1#

 2
63352C - PAD, ROOF HEADLINING, END
63352-0F010

AUR10,ZNR1#

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-0F010

AUR10,ZNR1#

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-0F010

AUR10,ZNR1#

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-0F010

AUR10,ZNR1#

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-0F010

AUR10,ZNR1#

 2
Linked diagrams
6104
