AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )

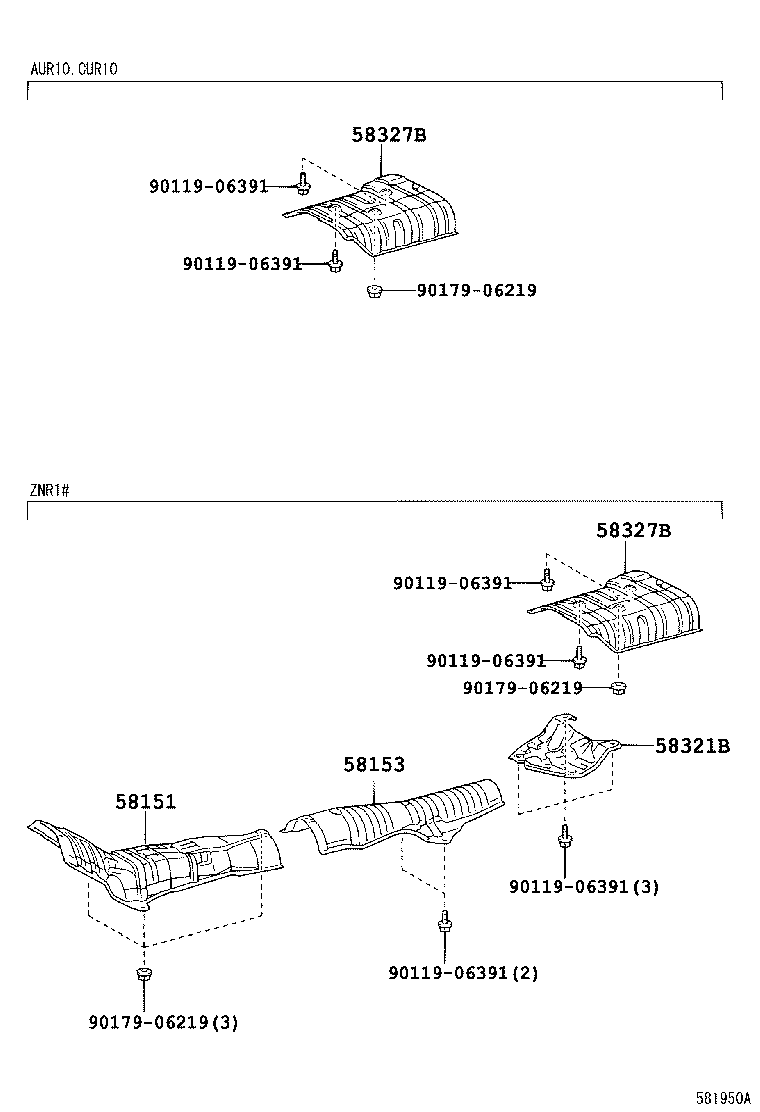

Click highlighted areas on diagram

diagram 58151 58153 58321B 58327B 58327B 9011906391 9011906391 9011906391 9011906391 9011906391 9011906391 9017906219 9017906219 9017906219
Part # Description Qty Price
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0F010

AUR10,CUR10,ZNR1#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-0F010

AUR10,CUR10,ZNR1#

 1
Common parts
90119-06391
90179-06219
