AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )AUR10..RHD

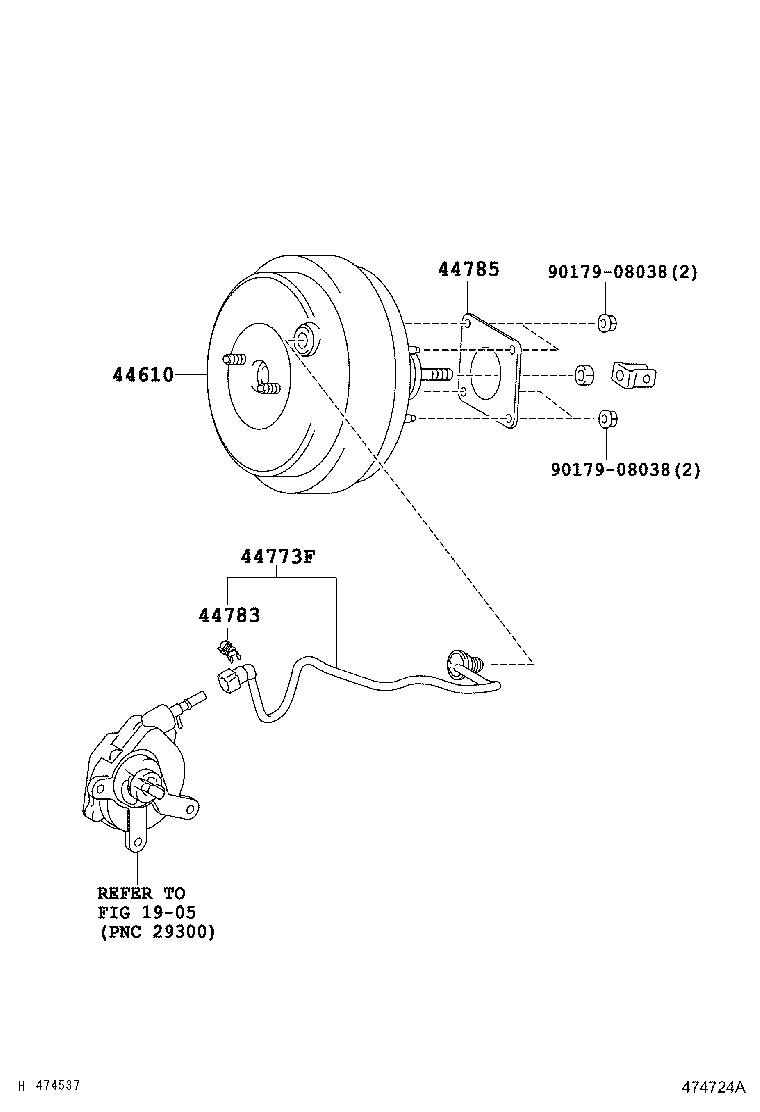

Click highlighted areas on diagram

diagram 1905 44610 44773F 44783 44785 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-05100

AUR10,CUR10,ZNR1#..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44750-05130

AUR10..RHD

 1
44783 - CLAMP, VACUUM HOSE
44783-20130

AUR10..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AUR10

 1
Common parts
90179-08038
Linked diagrams
1905
