AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )RHD

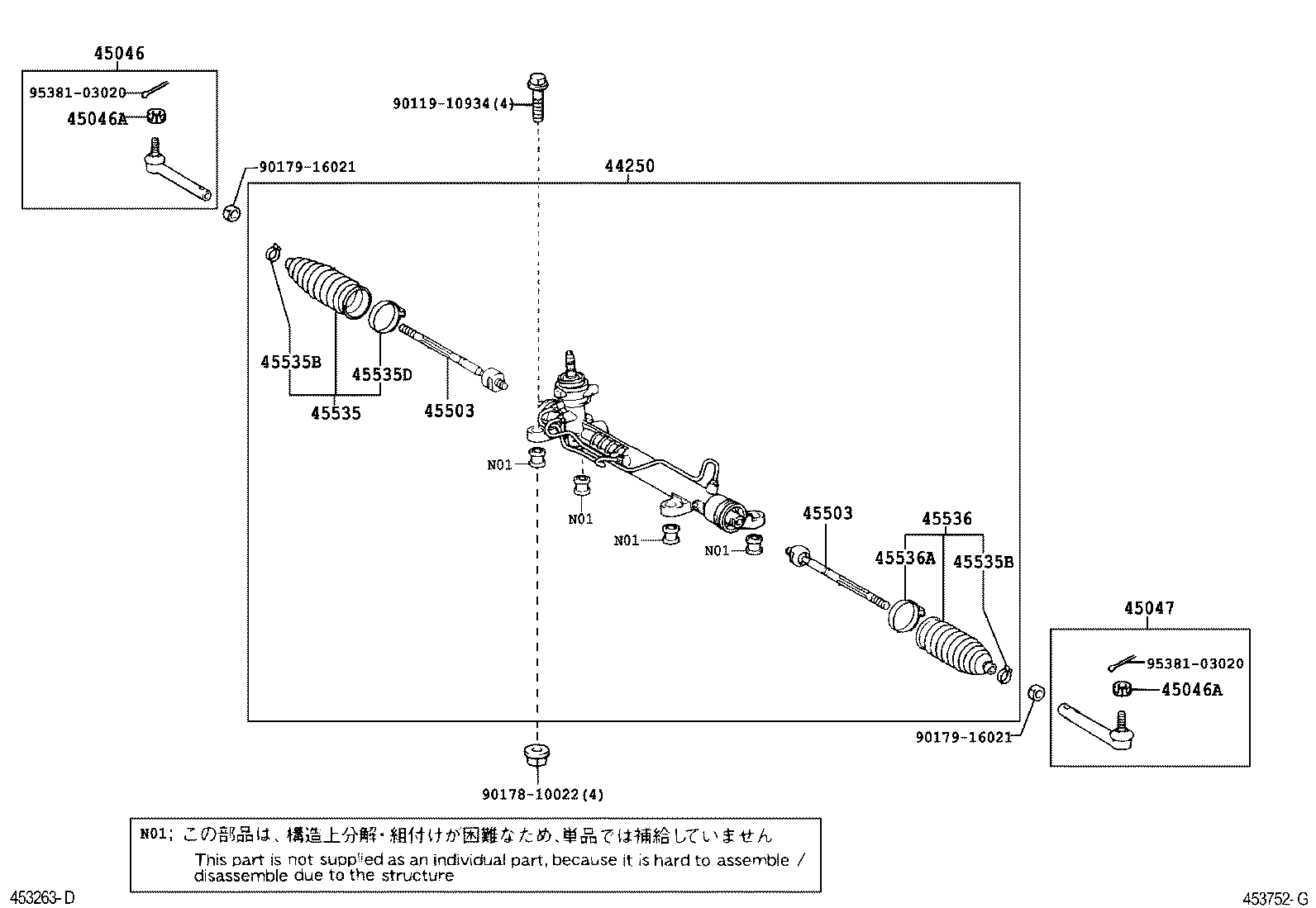

Click highlighted areas on diagram

diagram 44250 45046 45046A 45046A 45047 45503 45503 45535 45535B 45535B 45535D 45536 45536A 9011910934 9017810022 9017916021 9017916021 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09430

AUR10,ZNR1#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AUR10,ZNR1#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AUR10,ZNR1#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09430

AUR10,ZNR1#

 1
45503 - END SUB-ASSY, STEERING RACK
45503-0F010

AUR10

 2
45503 - END SUB-ASSY, STEERING RACK
45503-0F010

AUR10

 2
45535 - BOOT, STEERING RACK, NO.1
45535-09020

AUR10,ZNR1#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09020

AUR10,ZNR1#

 1
Common parts
90119-10934
90178-10022
90179-16021
95381-03020
