AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )AUR10

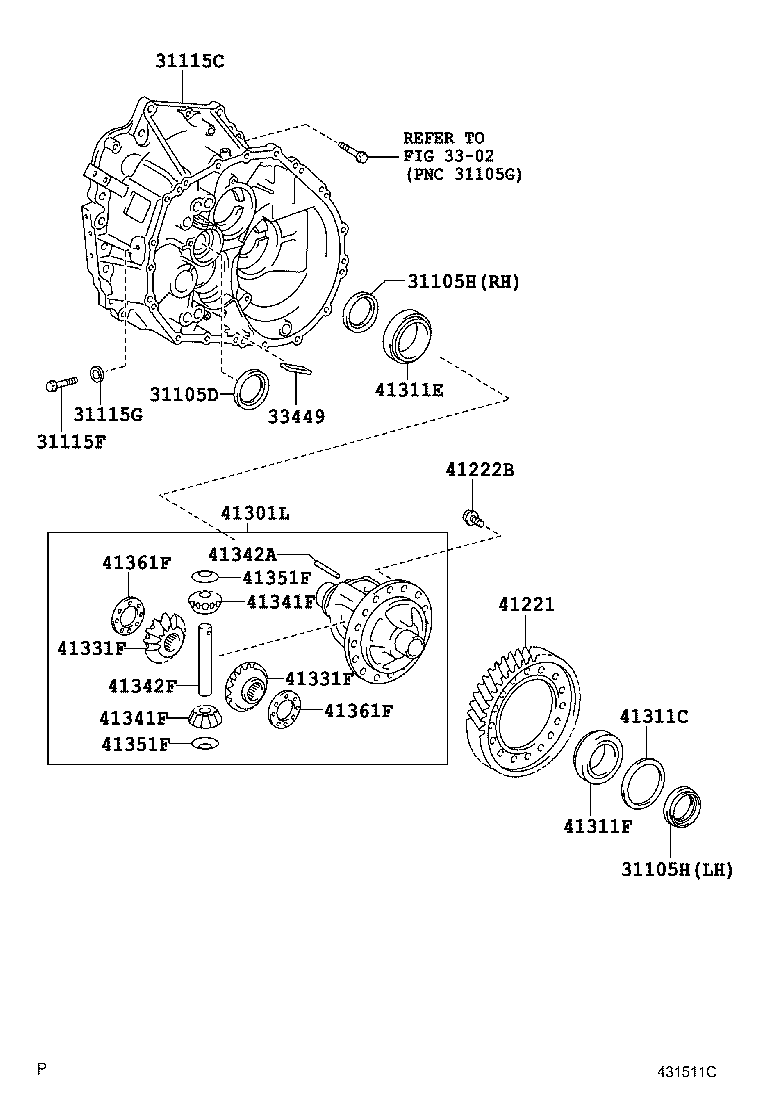

Click highlighted areas on diagram

EA62,EA63

diagram 31105D 31105H 31105H 31115C 31115F 31115G 3302 33449 41221 41222B 41301L 41311C 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30017

AUR10

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-50032

AUR10

LH

 1
90311-40030

AUR10

RH

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-50032

AUR10

LH

 1
90311-40030

AUR10

RH

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-20080

AUR10

 1
31115F - BOLT(FOR FRONT TRANSAXLE CASE)
90105-12354

AUR10

 1
31115G - GASKET(FOR FRONT TRANSAXLE CASE)
90430-13004

AUR10

 1
33449 - MAGNET, TRANSMISSION
33449-60010

AUR10

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-64010

AUR10

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12319

AUR10,CUR10

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-20250

AUR10..DCR

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-56073

AUR10

T=2.00,MARK 0

 1
90564-56075

AUR10

T=2.10,MARK 2

 1
90564-56074

AUR10

T=2.05,MARK 1

 1
90564-56078

AUR10

T=2.25,MARK 5

 1
90564-56076

AUR10

T=2.15,MARK 3

 1
90564-56082

AUR10

T=2.45,MARK 9

 1
90564-56080

AUR10

T=2.35,MARK 7

 1
90564-56083

AUR10

T=2.50,MARK A

 1
90564-56079

AUR10

T=2.30,MARK 6

 1
90564-56081

AUR10

T=2.40,MARK 8

 1
90564-56085

AUR10

T=2.60,MARK C

 1
90564-56088

AUR10

T=2.75,MARK F

 1
90564-56087

AUR10

T=2.70,MARK E

 1
90564-56090

AUR10

T=2.85,MARK H

 1
90564-56077

AUR10

T=2.20,MARK 4

 1
90564-56086

AUR10

T=2.65,MARK D

 1
90564-56089

AUR10

T=2.80,MARK G

 1
90564-56084

AUR10

T=2.55,MARK B

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-50100

AUR10

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50103

AUR10

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-42040

AUR10

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-42040

AUR10

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-35050

AUR10

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-35050

AUR10

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AUR10,CUR10,ZNR1#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20070

AUR10

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20050

AUR10

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20050

AUR10

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-20310

AUR10

T=1.30

 2
41361-20240

AUR10

T=1.25

 2
41361-20330

AUR10

T=1.40

 2
41361-20370

AUR10

T=1.60

 2
41361-20320

AUR10

T=1.35

 2
41361-20360

AUR10

T=1.55

 2
41361-20390

AUR10

T=1.70

 2
41361-20350

AUR10

T=1.50

 2
41361-20380

AUR10

T=1.65

 2
41361-20440

AUR10

T=1.95

 2
41361-20340

AUR10

T=1.45

 2
41361-20400

AUR10

T=1.75

 2
41361-20430

AUR10

T=1.90

 2
41361-20410

AUR10

T=1.80

 2
41361-20420

AUR10

T=1.85

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-20310

AUR10

T=1.30

 2
41361-20240

AUR10

T=1.25

 2
41361-20330

AUR10

T=1.40

 2
41361-20370

AUR10

T=1.60

 2
41361-20320

AUR10

T=1.35

 2
41361-20360

AUR10

T=1.55

 2
41361-20390

AUR10

T=1.70

 2
41361-20350

AUR10

T=1.50

 2
41361-20380

AUR10

T=1.65

 2
41361-20440

AUR10

T=1.95

 2
41361-20340

AUR10

T=1.45

 2
41361-20400

AUR10

T=1.75

 2
41361-20430

AUR10

T=1.90

 2
41361-20410

AUR10

T=1.80

 2
41361-20420

AUR10

T=1.85

 2
Linked diagrams
3302
