AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )2ADFTV..DCR

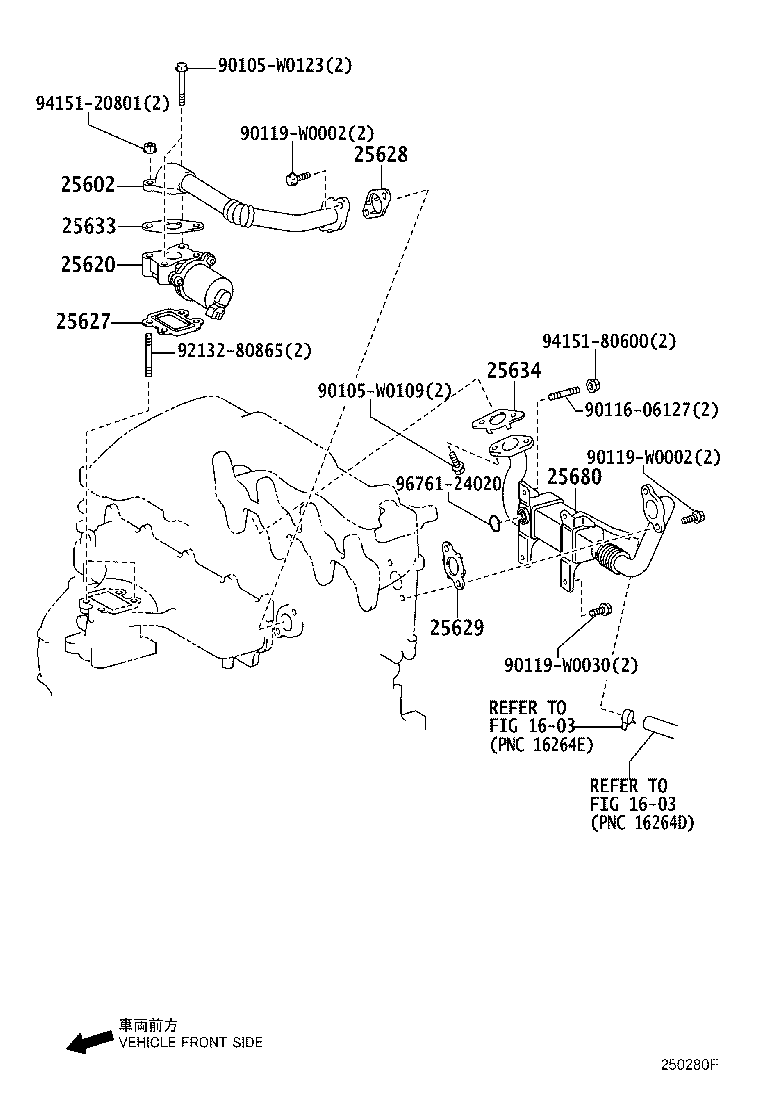

Click highlighted areas on diagram

diagram 1603 1603 25602 25620 25627 25628 25629 25633 25634 25680 90105W0109 90105W0123 9011606127 90119W0002 90119W0002 90119W0030 9213280865 9415120801 9415180600 9676124020
Part # Description Qty Price
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-0R010

2ADFTV..AUR10..DCR

 1
25612-26030

2AD#..AUR10

 1
25620 - VALVE ASSY, EGR
25620-0R011

2AD#..AUR10

 1
25620-0R010

2AD#..AUR10

 1
25627 - GASKET, EGR VALVE
25627-0R010

2AD#..AUR10

 1
25628 - GASKET, EGR INLET
25628-0R010

2AD#..AUR10

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-0R010

2AD#..AUR10

 1
25633 - GASKET, EGR VALVE
25633-0R010

2AD#..AUR10

 1
25634 - GASKET, EGR PIPE
25634-0R010

2AD#..AUR10

 1
25680 - COOLER ASSY, EGR
25680-0R010

2ADFTV..AUR10

 1
Common parts
90105-W0109
90105-W0123
90116-06127
90119-W0002
90119-W0030
92132-80865
94151-20801
94151-80600
96761-24020
Linked diagrams
1603
