AUR10R-GRFEYW (2005)

Toyota Corolla Verso

Production Aug 2005 - May 2007
Engine 2ADFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0508- )2AD#

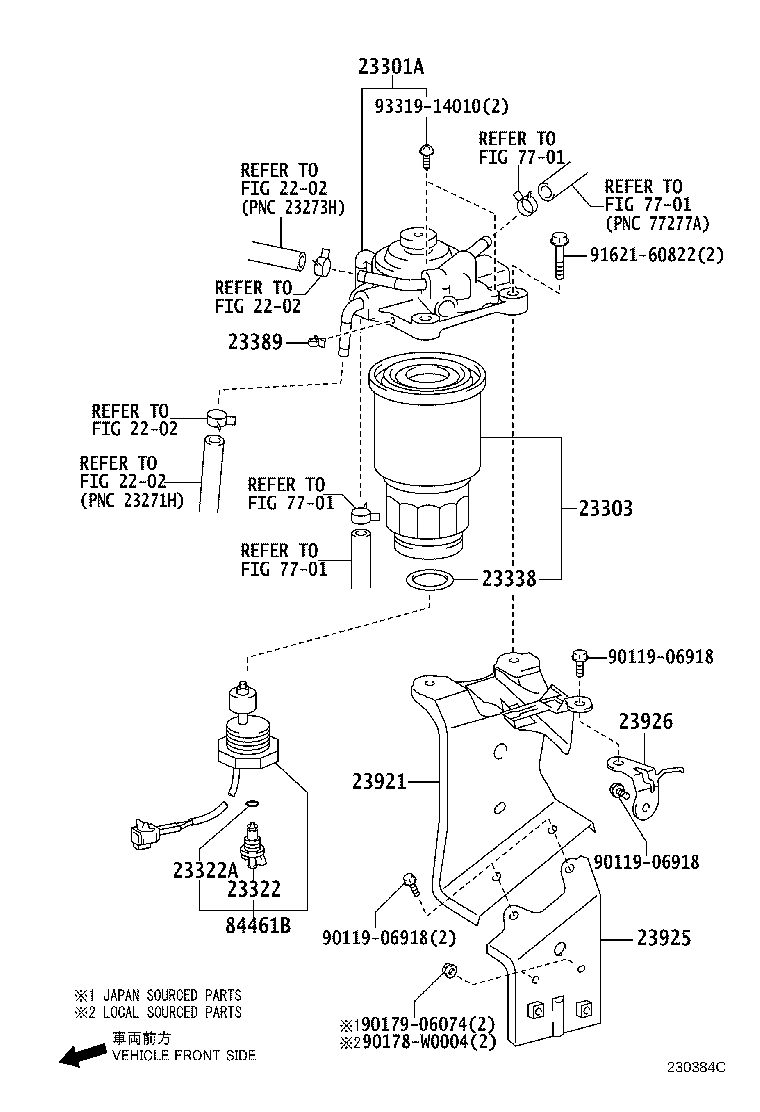

Click highlighted areas on diagram

diagram 2202 2202 2202 2202 23301A 23303 23322 23322A 23338 23389 23921 23925 23926 7701 7701 7701 7701 84461B 9011906918 9011906918 9011906918 90178W0004 9017906074 9162160822 9331914010
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-0R010

2AD#..AUR10

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-33020

2AD#..AUR10

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

2AD#..AUR10

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2AD#..AUR10

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2AD#..AUR10

 1
23389 - CLAMP, FUEL FILTER
23389-0G021

2AD#..AUR10

 1
23921 - SUPPORT, FUEL FILTER
23921-27100

2AD#..AUR10

 1
23925 - STAY, FUEL FILTER SUPPORT
23925-0G010

2AD#..AUR10

 1
23926 - STAY, FUEL FILTER SUPPORT, NO.2
23926-0G010

2AD#..AUR10

 1
84461B - SWITCH, LEVEL WARNING
84461-20100

AUR10

 1
Common parts
90119-06918
90178-W0004
90179-06074
91621-60822
93319-14010
Linked diagrams
2202
7701
