AUR10R-GRFEYW (2005)
Toyota Corolla Verso
Production
Aug 2005
-
May 2007
Engine
2ADFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )2AD#

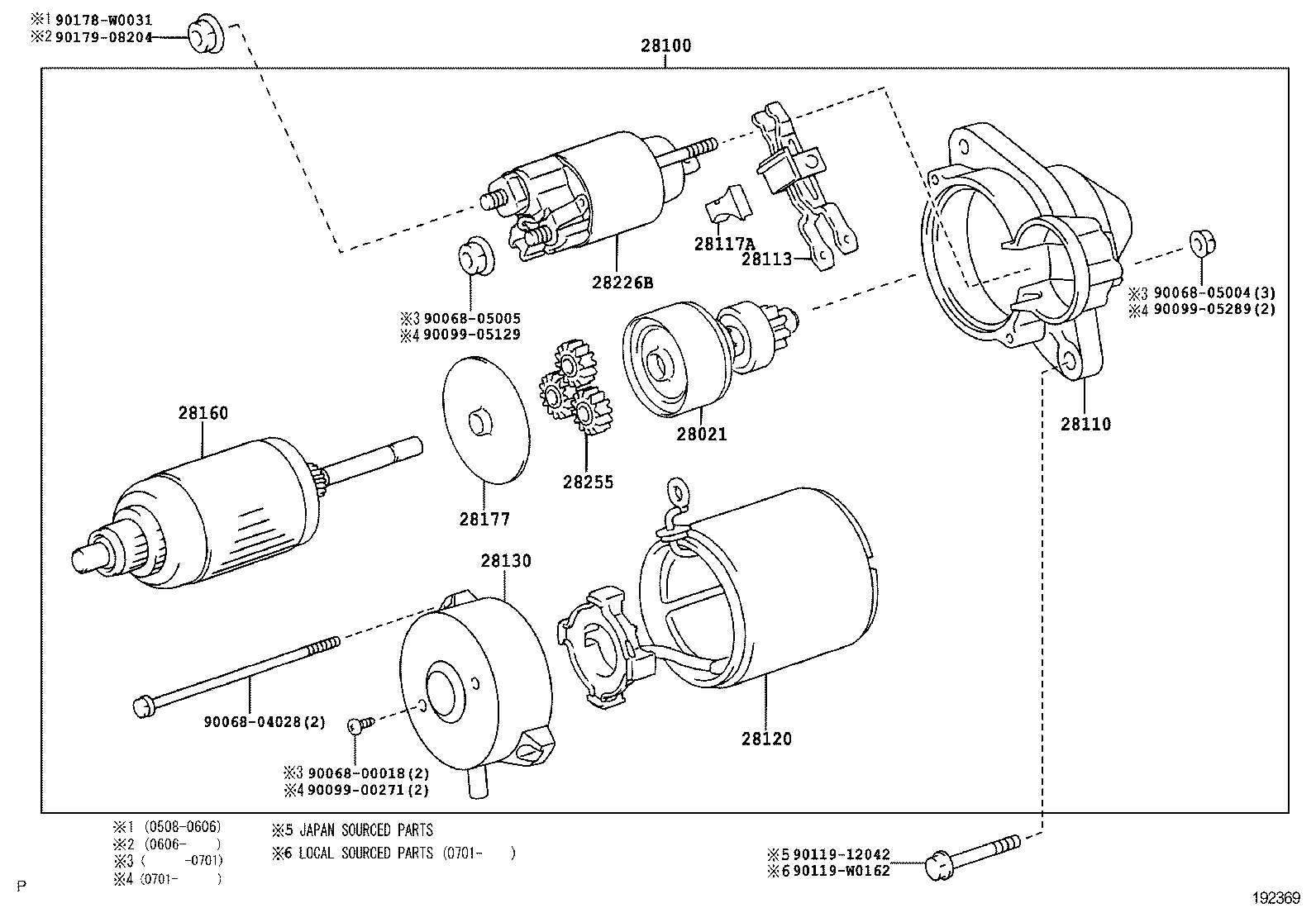

Click highlighted areas on diagram
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-0G040 |
2AD#..AUR10 |
1 | ||
| 28021-0R010 |
2AD#..AUR10 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0G040 |
2AD#..AUR10 12V 2.0KW |
1 | ||
| 28100-0R010 |
2AD#..AUR10 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0G040 |
2AD#..AUR10 |
1 | ||
| 28110-0R010 |
2AD#..AUR10 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0G020 |
2AD#..AUR10 |
1 | ||
| 28114-0R010 |
2AD#..AUR10 |
1 | ||
| 28117A - SEAL, RUBBER | ||||
| 28117-0G020 |
2AD#..AUR10..DCR,DCRL |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0G020 |
2AD#,1CDFTV..AUR10,CUR10 |
1 | ||
| 28120-38020 |
2AD#..AUR10 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0R010 |
2AD#..AUR10 |
1 | ||
| 28130-0G040 |
2AD#..AUR10 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0G020 |
2AD#,1CDFTV..AUR10,CUR10 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-0G020 |
2AD#..AUR10 |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28150-37020 |
2AD#..AUR10 |
1 | ||
| 28226-0G020 |
2AD#..AUR10 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-0G040 |
2AD#..AUR10 |
3 | ||
| Common parts | ||||
| 90068-00018 | ||||
| 90068-04028 | ||||
| 90068-05004 | ||||
| 90068-05005 | ||||
| 90099-00271 | ||||
| 90099-05129 | ||||
| 90099-05289 | ||||
| 90119-12042 | ||||
| 90119-W0162 | ||||
| 90178-W0031 | ||||
| 90179-08204 | ||||
