AUR10R-GRFEYW (2005)
Toyota Corolla Verso
Production
Aug 2005
-
May 2007
Engine
2ADFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )2AD#

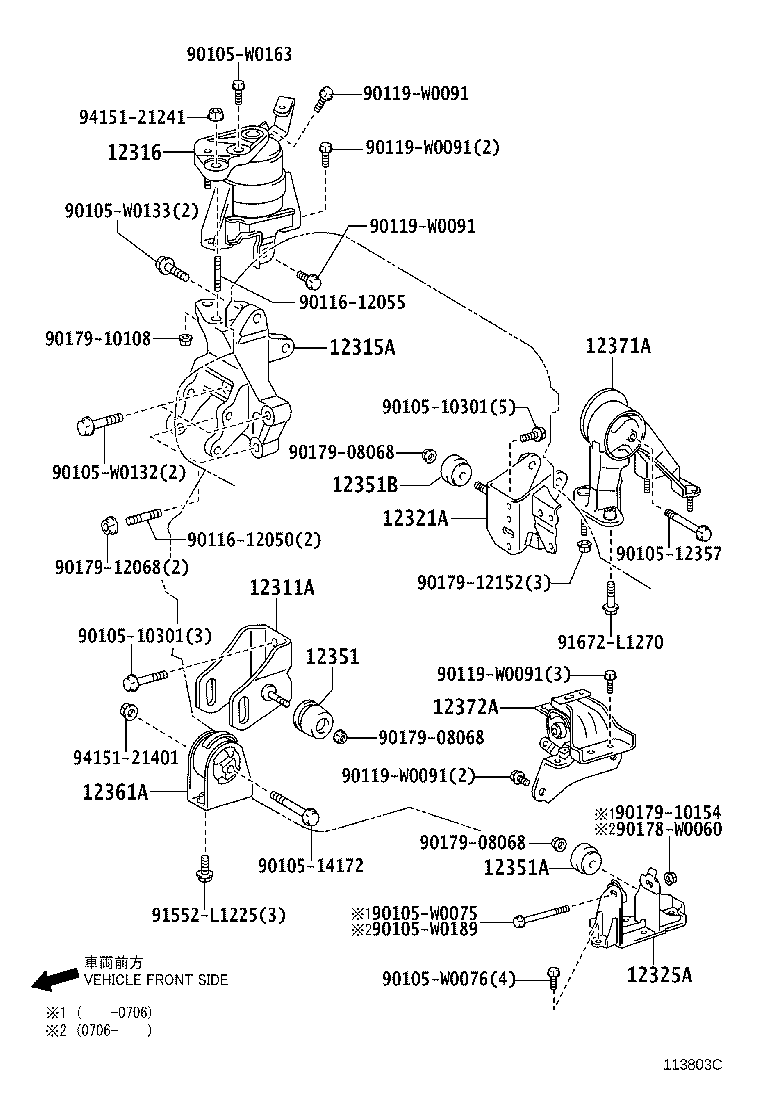

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-26070 |
2AD#..AUR10 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0R012 |
2AD#..AUR10 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12305-0R010 |
2AD#..AUR10 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-26040 |
2AD#..AUR10 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-26010 |
2AD#..AUR10 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-0D020 |
2AD#..AUR10 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-23010 |
2AD#..AUR10 |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-28060 |
2AD#..AUR10 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0R010 |
2AD#..AUR10 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0R030 |
2AD#..AUR10 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0R010 |
2AD#..AUR10 |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-12357 | ||||
| 90105-14172 | ||||
| 90105-W0075 | ||||
| 90105-W0076 | ||||
| 90105-W0132 | ||||
| 90105-W0133 | ||||
| 90105-W0163 | ||||
| 90105-W0189 | ||||
| 90116-12050 | ||||
| 90116-12055 | ||||
| 90119-W0091 | ||||
| 90178-W0060 | ||||
| 90179-08068 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-12068 | ||||
| 90179-12152 | ||||
| 91552-L1225 | ||||
| 91672-L1270 | ||||
| 94151-21241 | ||||
| 94151-21401 | ||||
