AUR10R-GRFEXW (2007)

Toyota Corolla Verso

Production May 2007 - Feb 2009
Engine 2ADFHV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0402- )

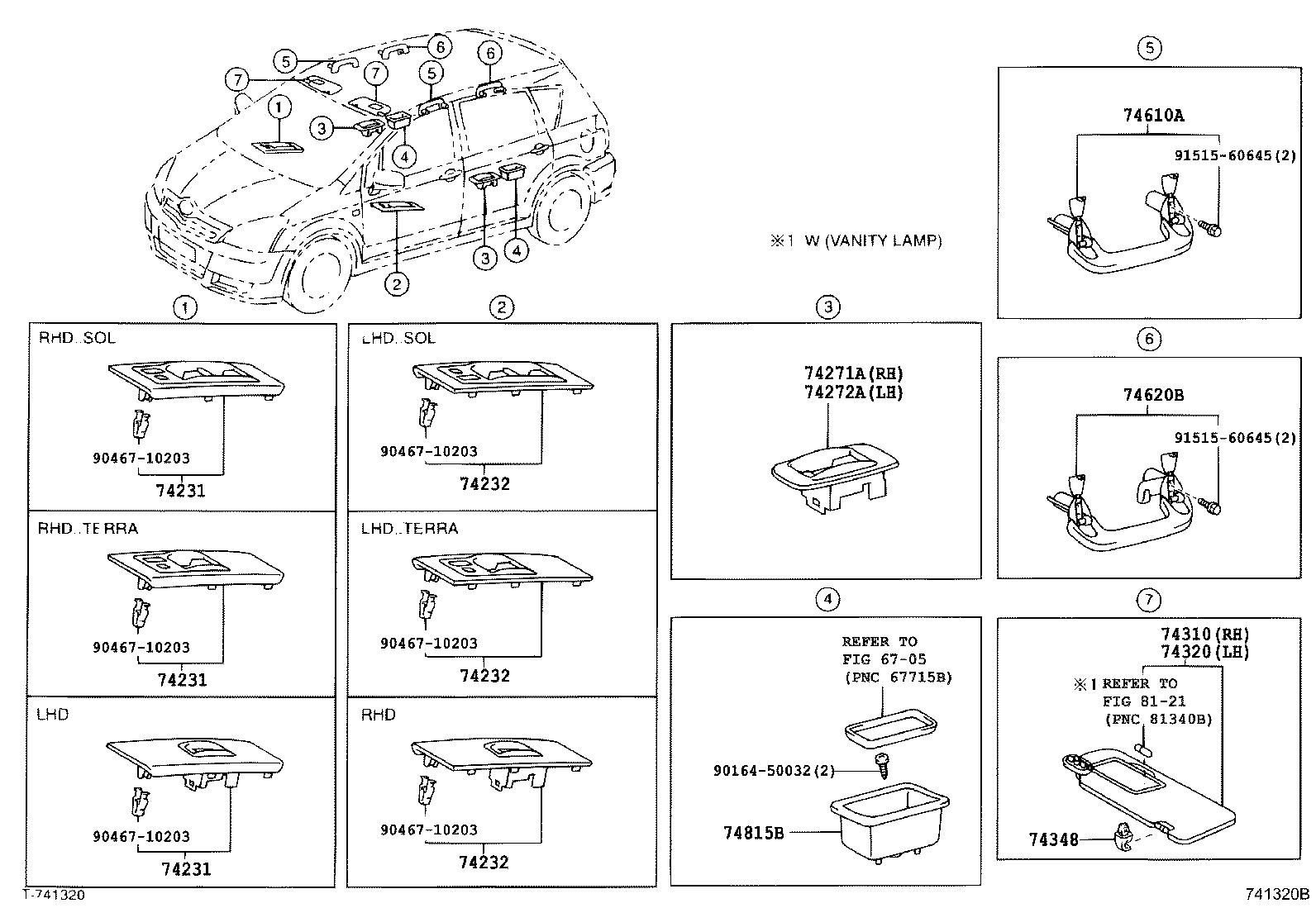

Click highlighted areas on diagram

diagram 6705 74231 74231 74231 74232 74232 74232 74271A 74272A 74310 74320 74348 74610A 74620B 74815B 8121 9016450032 9046710203 9046710203 9046710203 9046710203 9046710203 9046710203 9151560645 9151560645
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0F010B0

AUR10,CUR10,ZNR1#..RHD..SOL

DK.GRAY,TRIM1#

 1
74231-0F010B0

AUR10,ZNR1#..RHD..SOL

DK.GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0F010B0

AUR10,CUR10,ZNR1#..RHD..SOL

DK.GRAY,TRIM1#

 1
74231-0F010B0

AUR10,ZNR1#..RHD..SOL

DK.GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0F010B0

AUR10,CUR10,ZNR1#..RHD..SOL

DK.GRAY,TRIM1#

 1
74231-0F010B0

AUR10,ZNR1#..RHD..SOL

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0F030B0

AUR10,CUR10,ZNR1#..RHD

DK.GRAY,TRIM1#

 1
74232-0F030B0

AUR10,ZNR1#..RHD

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0F030B0

AUR10,CUR10,ZNR1#..RHD

DK.GRAY,TRIM1#

 1
74232-0F030B0

AUR10,ZNR1#..RHD

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0F030B0

AUR10,CUR10,ZNR1#..RHD

DK.GRAY,TRIM1#

 1
74232-0F030B0

AUR10,ZNR1#..RHD

DK.GRAY,TRIM1#

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
84656-02130B1

AUR10,ZNR1#..SOL

DK.GRAY,TRIM1#

 1
84656-02130B1

AUR10,CUR10,ZNR1#..SOL

DK.GRAY,TRIM1#

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
84656-02130B1

AUR10,CUR10,ZNR1#..SOL

DK.GRAY,TRIM1#

 1
84656-02130B1

AUR10,ZNR1#..SOL

DK.GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-0F031B0

AUR10,ZNR1#..RHD..SOL

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-0F031B0

AUR10,ZNR1#..RHD..SOL

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-12040B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#

 2
74348-12040B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-05070B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#

 2
74610-05070B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 2
74620B - GRIP ASSY, ASSIST, REAR
74610-05080B0

AUR10,ZNR1#

LT.GRAY,TRIM1#

 2
74610-05080B0

AUR10,CUR10,ZNR1#

LT.GRAY,TRIM1#

 2
74815B - HANDLE, REAR DOOR PULL
74815-0F010B0

AUR10,CUR10,ZNR1#

DK.GRAY,TRIM1#,RH

 1
74816-0F010B0

AUR10,ZNR1#

DK.GRAY,TRIM1#,LH

 1
74815-0F010B0

AUR10,ZNR1#

DK.GRAY,TRIM1#,RH

 1
74816-0F010B0

AUR10,CUR10,ZNR1#

DK.GRAY,TRIM1#,LH

 1
Common parts
90164-50032
90467-10203
91515-60645
Linked diagrams
6705
8121
