AUR10R-GRFEXW (2007)

Toyota Corolla Verso

Production May 2007 - Feb 2009
Engine 2ADFHV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )2AD#

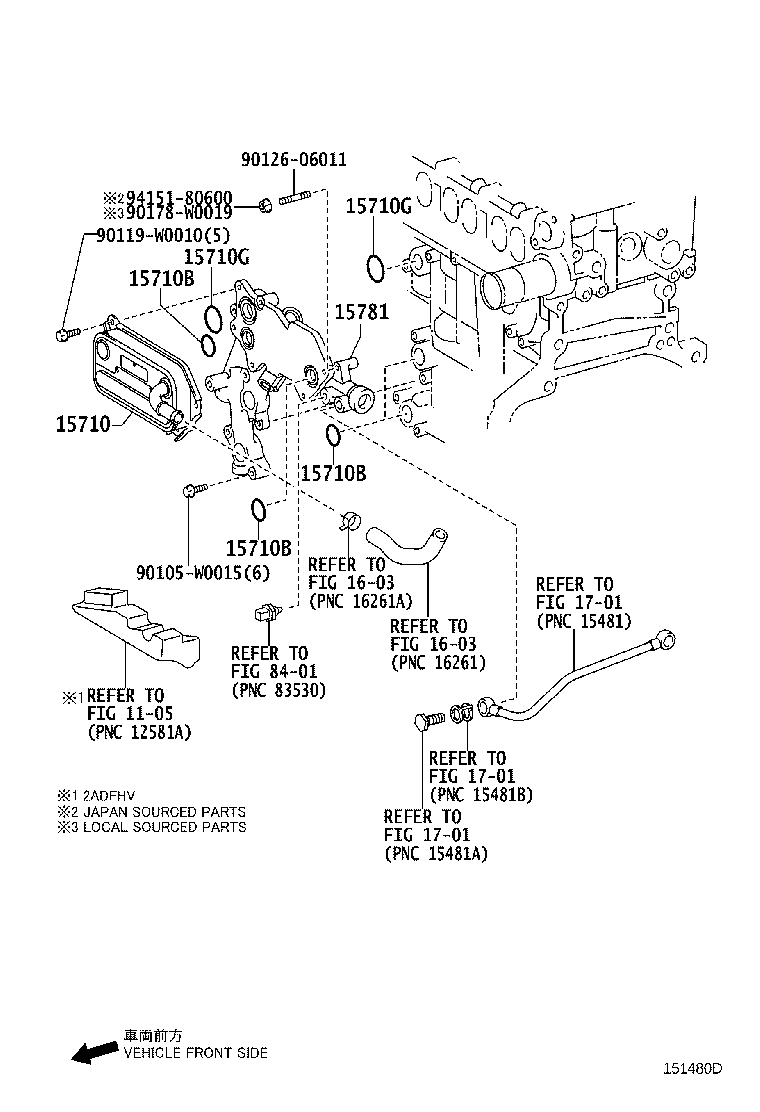

Click highlighted areas on diagram

diagram 1105 15710 15710B 15710B 15710B 15710G 15710G 15781 1603 1603 1701 1701 1701 8401 90105W0015 90119W0010 9012606011 90178W0019 9415180600
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-0R010

2AD#..AUR10

 1
15710B - RING, O(FOR OIL COOLER)
90301-24018

2AD#..AUR10

 4
15710B - RING, O(FOR OIL COOLER)
90301-24018

2AD#..AUR10

 4
15710B - RING, O(FOR OIL COOLER)
90301-24018

2AD#..AUR10

 4
15710G - RING, O, NO.2
90301-29013

2AD#..AUR10

 2
15710G - RING, O, NO.2
90301-29013

2AD#..AUR10

 2
15781 - BRACKET, OIL COOLER, NO.1
15781-26030

2AD#..AUR10

 1
15781-26011

2AD#..AUR10

 1
Common parts
90105-W0015
90119-W0010
90126-06011
90178-W0019
94151-80600
Linked diagrams
1105
1603
1701
8401
